• Model NO.：LJZ2-500X4200
• Voltage：380V
• Process Usage：Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
• Numerical Control：CNC,Mnc
• Performance Classification：MID-Range CNC Machine Tools
• After-Sales Service：Lifetime Maintenance Service
• Application：Window
• Specification：5800*1500*1800 mm
• Trademark：Zunbo
• Origin：China

Basic Info.

Model NO. LJZ2-500X4200 Voltage 380V Process Usage Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools Numerical Control CNC/Mnc Performance Classification MID-Range CNC Machine Tools After-Sales Service Lifetime Maintenance Service Application Window Specification 5800*1500*1800 mm Trademark Zunbo Origin China

Product Description

Product Description:

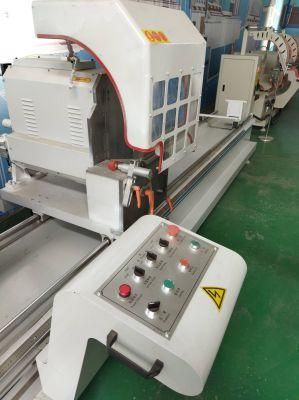

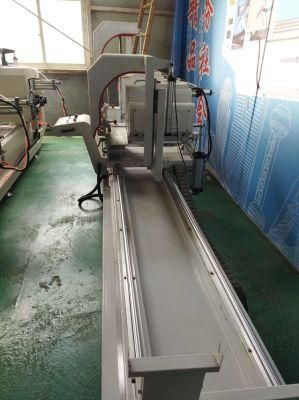

Model: LJZ2-500X4200
Carbide saw blades have high machining accuracy and high durability.
High-precision spindle, stable rotation of the saw blade.
The gas-liquid damping mechanism realizes uniform feed speed regulation and stable movement.
The feed system adopts linear guide rail movement with high precision and good stability.

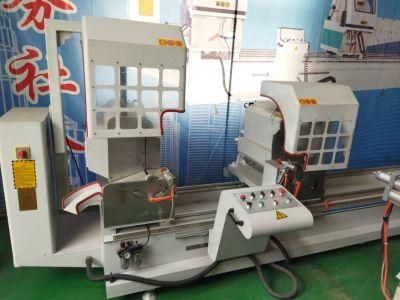

The two-head saw can automatically switch the angle to realize the angle cutting of -45° and 90° profiles.
Equipped with automatic opening and closing protective cover, making work more convenient.


Technical Parameter:

Power source: 380V 50HZ
Saw head motor: 4.4kW
Working pressure: 0.5~0.8MPa
Blade rotational speed: 2800r/min
Cutting length: 400-4200mm
Saw blade specification: D--500mm, d-30mm
Cutting angle: 90°, -45°
Dimensions: 5800× 1500× 1800 mm
