UPVC Window Fabrication Welding Machine
JINAN YUEFENG MACHINERY CO., LTD.- Certification：ISO, CE
- Automatic Grade：Automatic
- CNC or Not：CNC
- Voltage：According to Your Requirement
- Input Power：6.0kw
- Air Pressure：0.5~0.8MPa
Base Info
- Model NO.：SHZ4-120x4500
- Air Consumption：200L,Min
- Spindle Speed：3200r,Min
- Cutting Length：400~4200mm(400~5000mm)
- Cutting Width：10~130mm
- Cutting Height：10~300mm
- Cutting Angle：90° 45° 67.5°
- Saw Feeding Speed：0~3m,Min
- Saw Blade Standard：φ500×4.4×φ30×z120
- Overall Dimension：5500(6300)×1700×1600mm
- Transport Package：Plastic Cover or Plywood Cases
- Trademark：YUEFENG
- Origin：Shandong
- HS Code：847780
- Production Capacity：100sets,Month
Description
Basic Info.
Model NO. SHZ4-120x4500 Air Consumption 200L/Min Spindle Speed 3200r/Min Cutting Length 400~4200mm(400~5000mm) Cutting Width 10~130mm Cutting Height 10~300mm Cutting Angle 90° 45° 67.5° Saw Feeding Speed 0~3m/Min Saw Blade Standard φ500×4.4×φ30×z120 Overall Dimension 5500(6300)×1700×1600mm Transport Package Plastic Cover or Plywood Cases Trademark YUEFENG Origin Shandong HS Code 847780 Production Capacity 100sets/MonthProduct Description

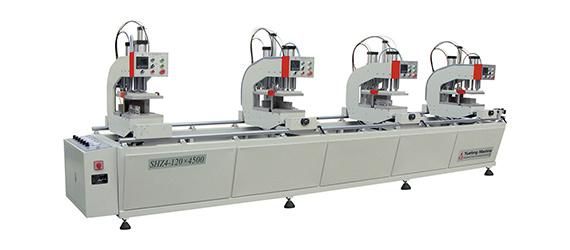

Upvc Window Fabrication welding Machine
The machine applies to PVC profiles window and door processing. It can process shapes of Etc. CM oilless bearing kinematic pair and PLC control system are adopted result high accuracy and efficiency.| Model | SHZ4-120×4500 |
| Input voltage | 380/220V 50Hz |
| Input power | 4.5Kw |
| Air pressure | 0.4~0.6MPa |
| Air consumption | 200L/min |
| Welding length | 400~4500mm |
| Welding height | 20~120mm |
| Overall dimension | 5300×950×1700mm |
