• Model NO.：NM1261
• Usage：Floor
• Transmission Method：Electric
• Product Name：Floor Decking Roll Forming Machine
• Raw Material：Gi Steel, PPGI Steel
• Thickness Range：0.8-1.5mm
• Machine Power：22kw+5.5kw
• Work Speed：10-15m,Min
• Machine Weight：12 Tons
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：12500mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：Cangzhou, China
• HS Code：8455221000
• Production Capacity：30 Sets , Month

Basic Info.

Model NO. NM1261 Usage Floor Transmission Method Electric Product Name Floor Decking Roll Forming Machine Raw Material Gi Steel, PPGI Steel Thickness Range 0.8-1.5mm Machine Power 22kw+5.5kw Work Speed 10-15m/Min Machine Weight 12 Tons Transport Package Plastic Film & Steel Wire Fixed Specification 12500mm*1500mm*1500mm(L*W*H) Trademark NEXUS MACHINERY Origin Cangzhou, China HS Code 8455221000 Production Capacity 30 Sets / Month

Product Description

Floor Decking Roll Forming Machine Metal Steel Foor Tile Making Machine

Metal deck of Metal deck roll forming machine is made of galvanized steel plate after rolled cold bending forming, its section into a v-shaped, u-shaped, trapezoid or similar this several kinds of the shape of the waveform, mainly used for permanent template, can also be selected for any other purpose. The earliest type of pressure steel plate is used for roof panels in the roof of the factory, and after the pressure type steel plate used for floors is gradually classified as the Metal deck roll forming machine.

1. Processing flow diagram of machine:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table

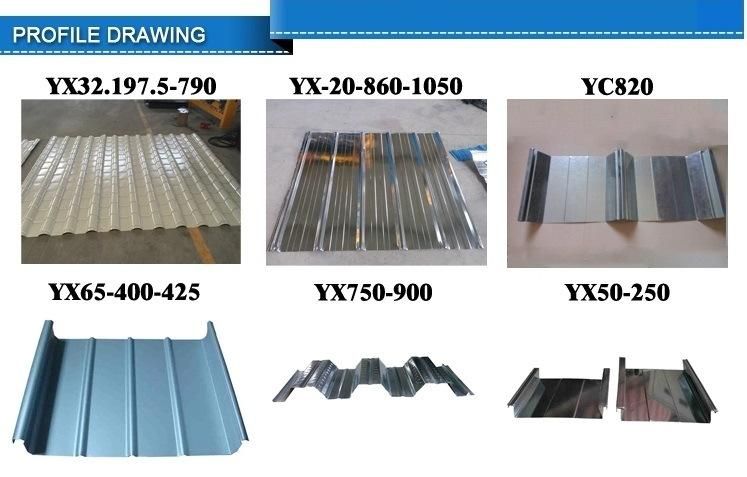

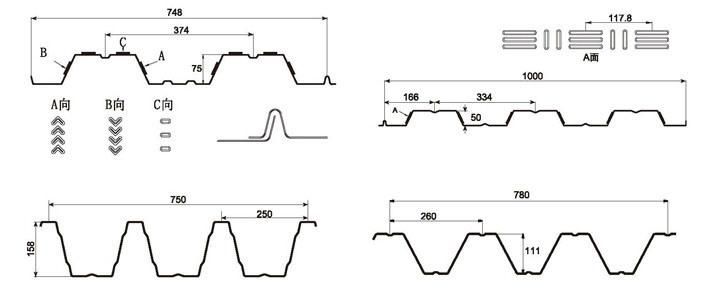

2. Profile Drawings for Reference:






3. Technical parameters for Floor Decking Roll Forming Machine Metal Steel Foor Tile Making Machine  Machine  :



Main motor power	11kw*2
Drive	1'' single chain
Type:	Wall board
Main shaft dia	¢80mm
material	45# forge steel and quenched
Roller material	45# high grade forge steel ,chrome coated 0.05mm
Roll station	26 groups
Raw material	0.8-1.5mm
Coil width	1219mm
Working speed	10m--15m/min(Exclude cutting time)
Length Tolerance	±1.5mm
Weight of machine	About 12 tons
Size of machine	About 12500×1800×1500mm L x W x H
Color of machine	Yellow and Blue
Coder	Omron, made in Japan
Control	PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating panel	touching screen
Cutting	Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power	5.5KW
Blade material	Cr12mov,quenched 58°-62°
Working pressure	16mpa
Cutting tolerance	+/- 1.0mm

4. Guarantee:

1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

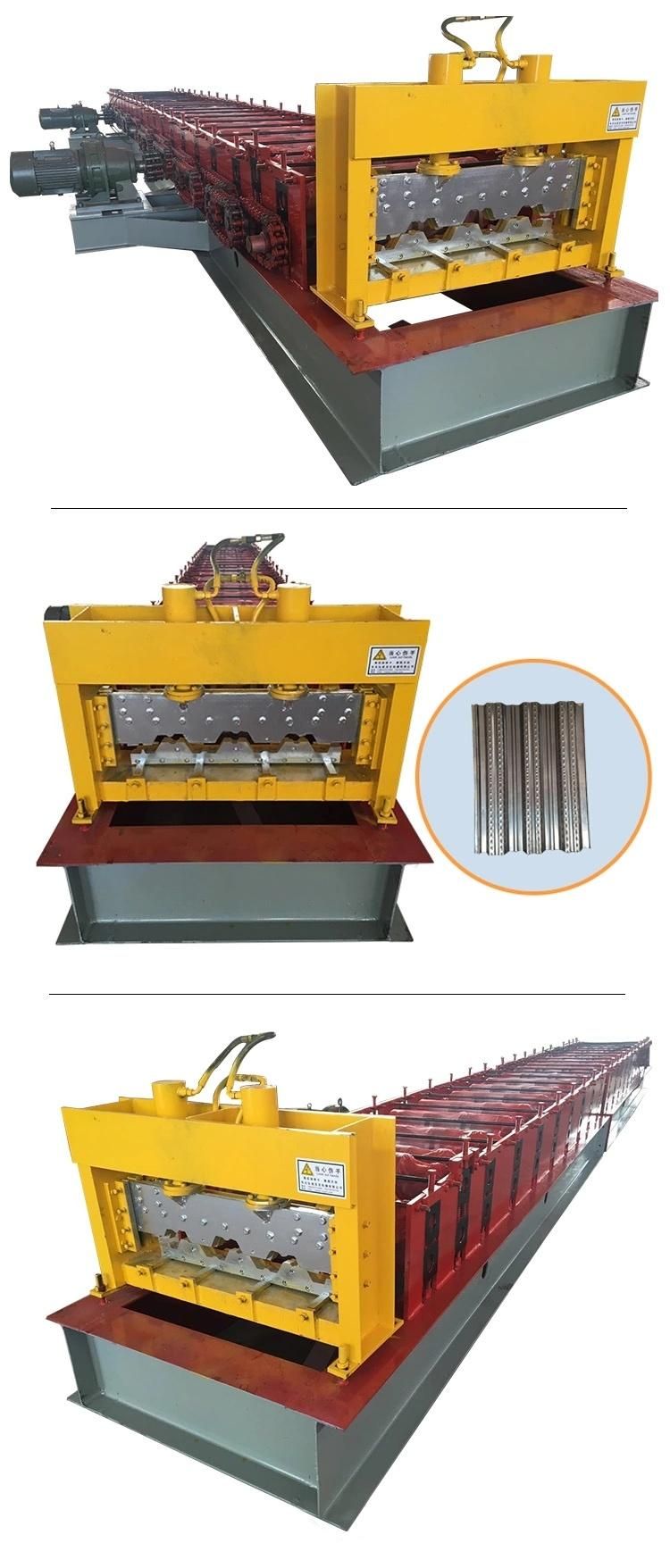

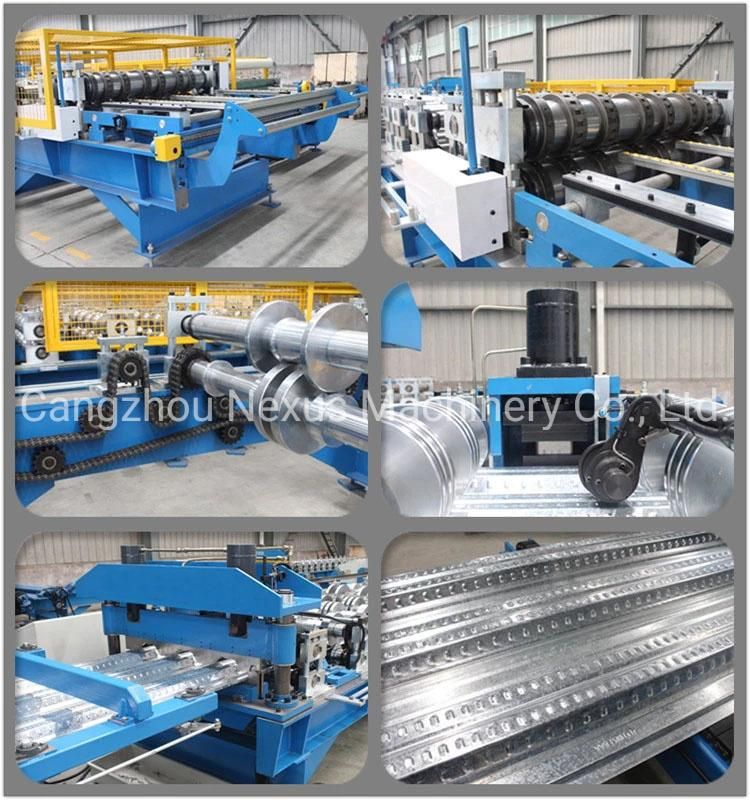

5. Photos of Floor Decking Roll Forming Machine Metal Steel Foor Tile Making Machine  for Reference:




7. Why Choose US?
1. More than 10 years experiences in manufacturing roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
