• Main Vibration Form：Platform Vibration
• Vibration Frequency：4600(R,Min)
• Pallet Size：1020*570mm
• Molding Cycle：10-15s
• Rated Pressure：21MPa
• Market：Global Market
• Color：According Customer Need
• Transport Package：According to Customer′ Need
• Specification：7100*1600*2610mm
• Trademark：shiyue
• Origin：Shandong Province China
• HS Code：8474802000

Basic Info.

Main Vibration Form Platform Vibration Vibration Frequency 4600(R/Min) Pallet Size 1020*570mm Molding Cycle 10-15s Rated Pressure 21MPa Market Global Market Color According Customer Need Transport Package According to Customer′ Need Specification 7100*1600*2610mm Trademark shiyue Origin Shandong Province China HS Code 8474802000

Product Description

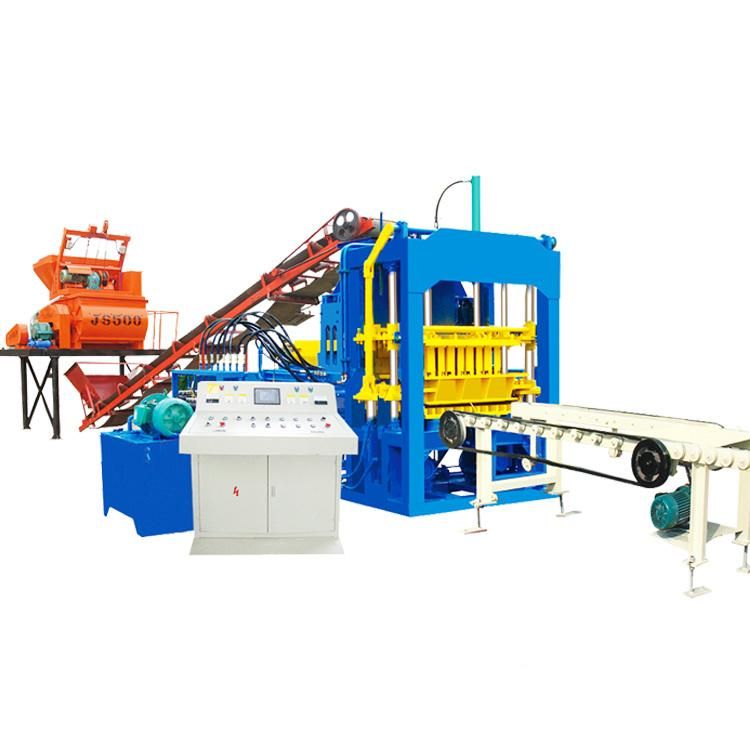

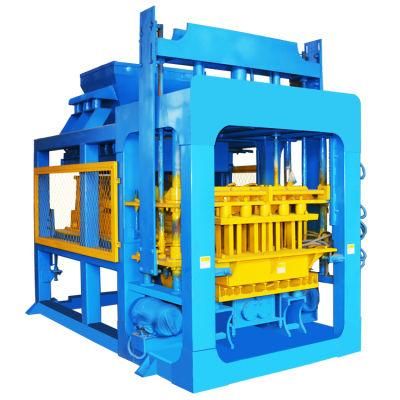

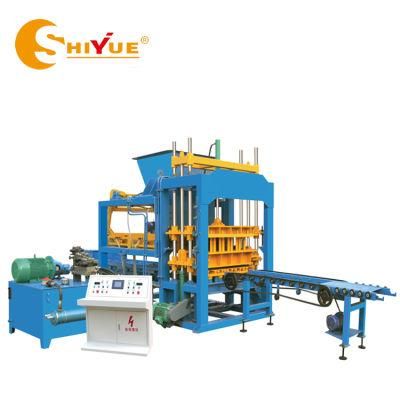

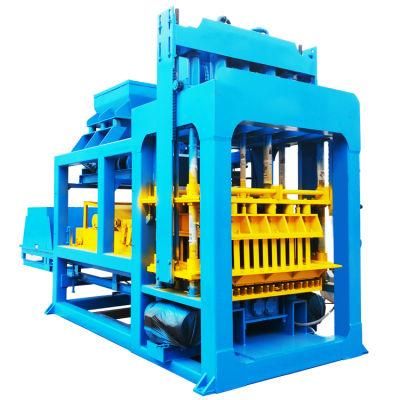

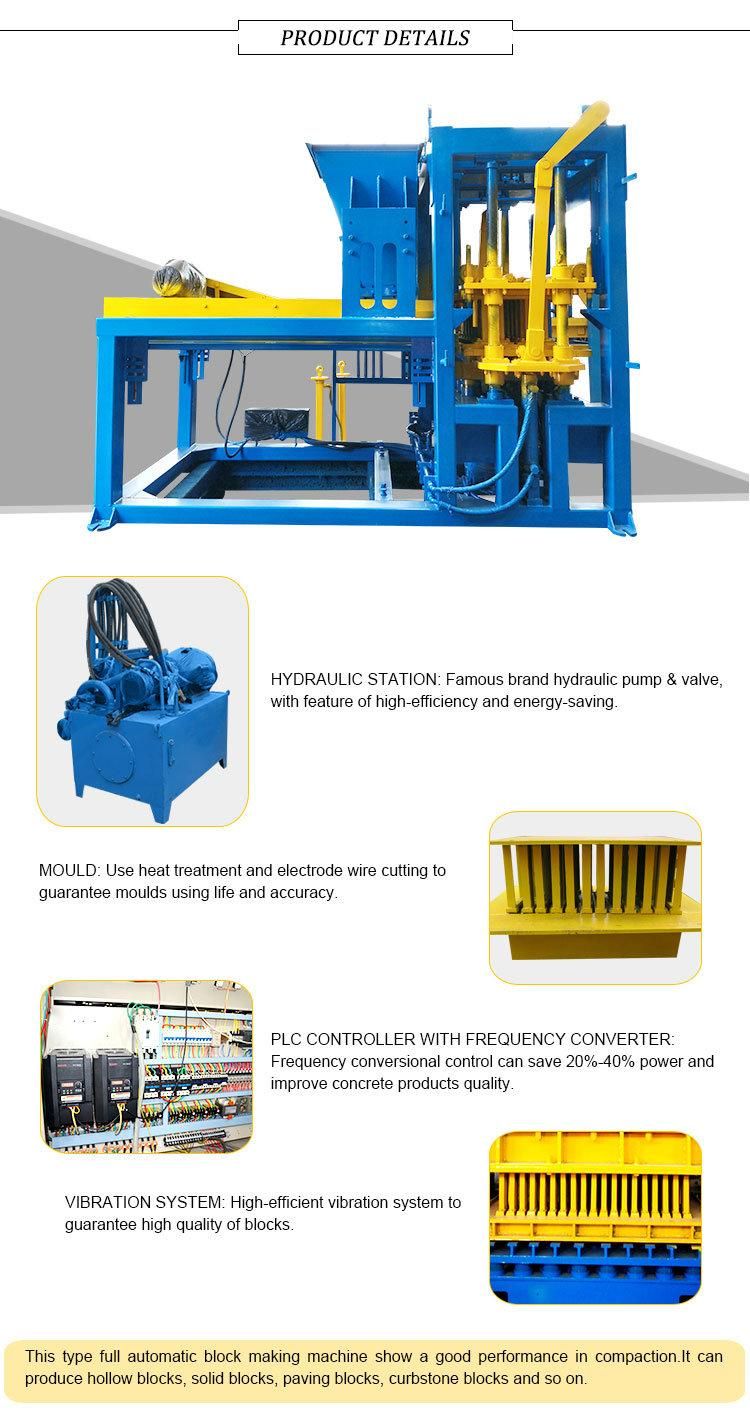

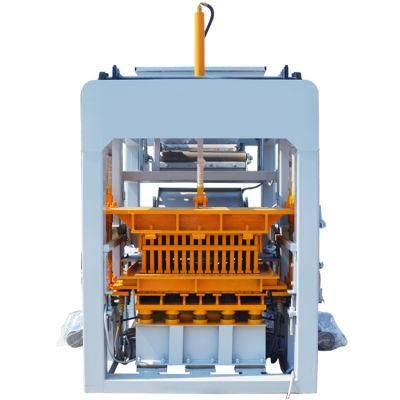

QT4-15 fully automatic hydraulic pressure block machine



Product Description
1.The machine adopts hydraulic system and the working procedure is very even and dependable,
2. It is a practical machine that simple in structure, artistic in figure.
3.Especially suitable to the production of the standard bricks
4. The reasonable material proportion have the capacity of making highdensity standard bricks,
Technical Parameters

Overall Dimension	7100*1600*2610mm
Rated Pressure	16-21MPa
Main Vibration Form	Platform Vibration
Vibration Frequency	4600 ( r/min)
Pallet Size	1020*570mm
Molding cycle	15-25 (s)
Overall Power	27.5W
Vibration Force	45KN
Total Mass	6T
Demolding method	Hydraulic
General water consumption	12T/Day
Factory Area	500m2
Applied Products	Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone, colored pavers ,etc.
Raw Material	Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw material , etc.

Productivity

Size(LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/8hours
400X200X200	4	960	7680
400X100X200	9	2160	17280
240x115x90	14	3360	26880
200X100X60	25	6000	48000
240x115x53	28	6720	53760

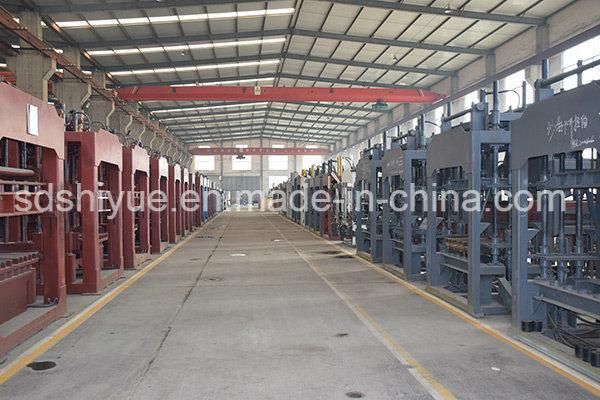

Our factory
