Building Material Making Machinery

Home > Product > Brick Making Machine

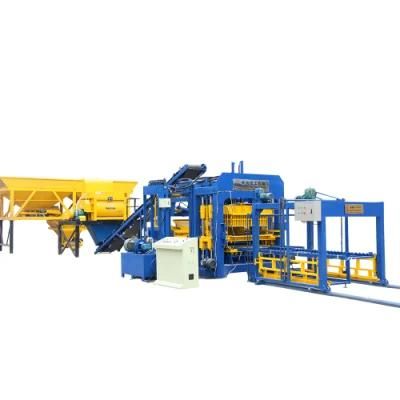

Germany Design Full Automatic Concrete Paving Block Making Machine

Qingdao HF Machinery Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Hydroforming
  • Rated Pressure：16MPa
  • Cycle Time：15-25s

Base Info

  • Model NO.：QT5-15
  • Power：26.5kw
  • Pallet Size：1100X550mm
  • Vibration Force：70kn
  • Color：Blue or Customized
  • Name：Qt5-15 Automatic Concrete Block Making Machine
  • Transport Package：Container
  • Specification：5120x1950x2810mm
  • Trademark：HF
  • Origin：Shandong, China
  • HS Code：8474802000
  • Production Capacity：10000PCS,Day

Description

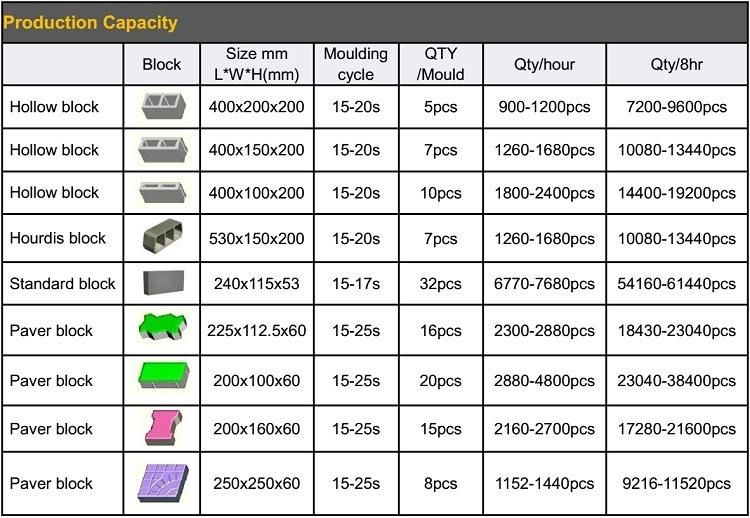

Main technical parameterQty/mould5pcs/mould (hollow block 400*200*200mm)Molding cycle15sRated pressure16MPaMain vibrationPlatform vibrationVibration frequency2800-4500 r/mPower26.5kwPallet size1100x550mmDimension2150x1950x2810mmHost machine weight5500kgFactory Area1500m²Germany Design Full Automatic Concrete Paving Block Making Machine
