Semi Automatic Cement Brick and Block Make machine Machine Price for Sale

Linyi ShengMing Machinery Co., Ltd.
  • Warranty：1 Year
  • Certification：CE, ISO

Base Info

  • Model NO.：QTJ4-35
  • Customized：Customized
  • Automatic Grade：Semiautomatic
  • Type：Vibration Molding
  • Work Method：Vibration Forming
  • Raw Material：Sand, Stone, Cement, Stonedust
  • Block Type：Hollow Concrete Brick Machine
  • Product Name：Semi Automatic Concrete Making Machine
  • Name：Semi Automatic Cement Block Machine
  • Products：4PCS,Mould
  • Keywords：Hollow Vibration Cement Block Moulding Machine
  • Pallet Size：850*450mm
  • Brick Type：Hollow Brick Concrete Brick Hole Brick
  • Molding Cycle：35-40s
  • After Warranty Service：Video Technical Support
  • Warranty Service：Online Support
  • After-Sales Service Provided：Free Spare Parts
  • Advantage：Hollow Block Making Machine
  • Machine Type：Brick Block Making Machine
  • Transport Package：Shipping by Sea
  • Specification：1550*1350*1800mm
  • Trademark：SHENGMING
  • Origin：China
  • HS Code：8474802000
  • Production Capacity：60set,Month
  • Package size per unit product：160.00cm * 160.00cm * 220.00cm
  • Gross weight per unit product：700.000kg

Description

Total rated power
 15.9KW
 Block yard area
 50M2
 Daily capacity
 1500-2000 pieces
 Power voltage
 380V/220V AC
 Pallet quantity
 500-600 pieces
 Labor quantity
 2-3 people
 Water consumption
 2-4T/day
 Forming period
 35-40S
 Main featrues:
The machine body comes from QTJ4-40 and adopts four column guide design. The upper part is equipped with storage hopper and automatic materail dropping device. The press head adopts push-pull design, which is safe and convenient.

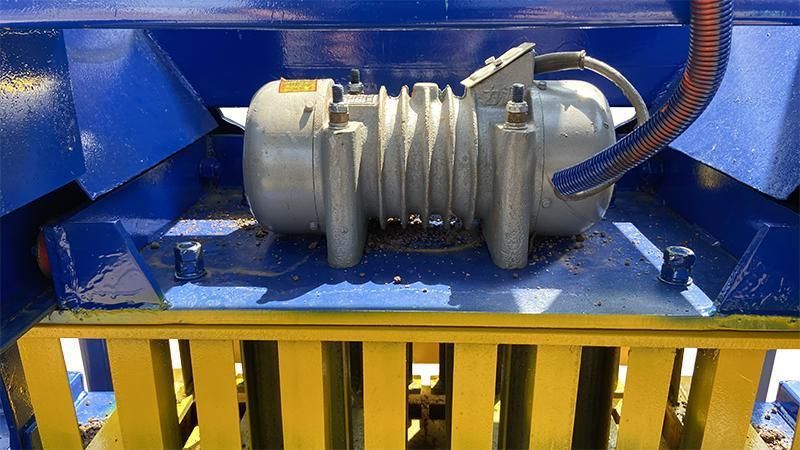

The vibration platform is welded with Q345 steel plate durable sturture.The machine adopts up-down vibration system, brick forming fast and good compactness.

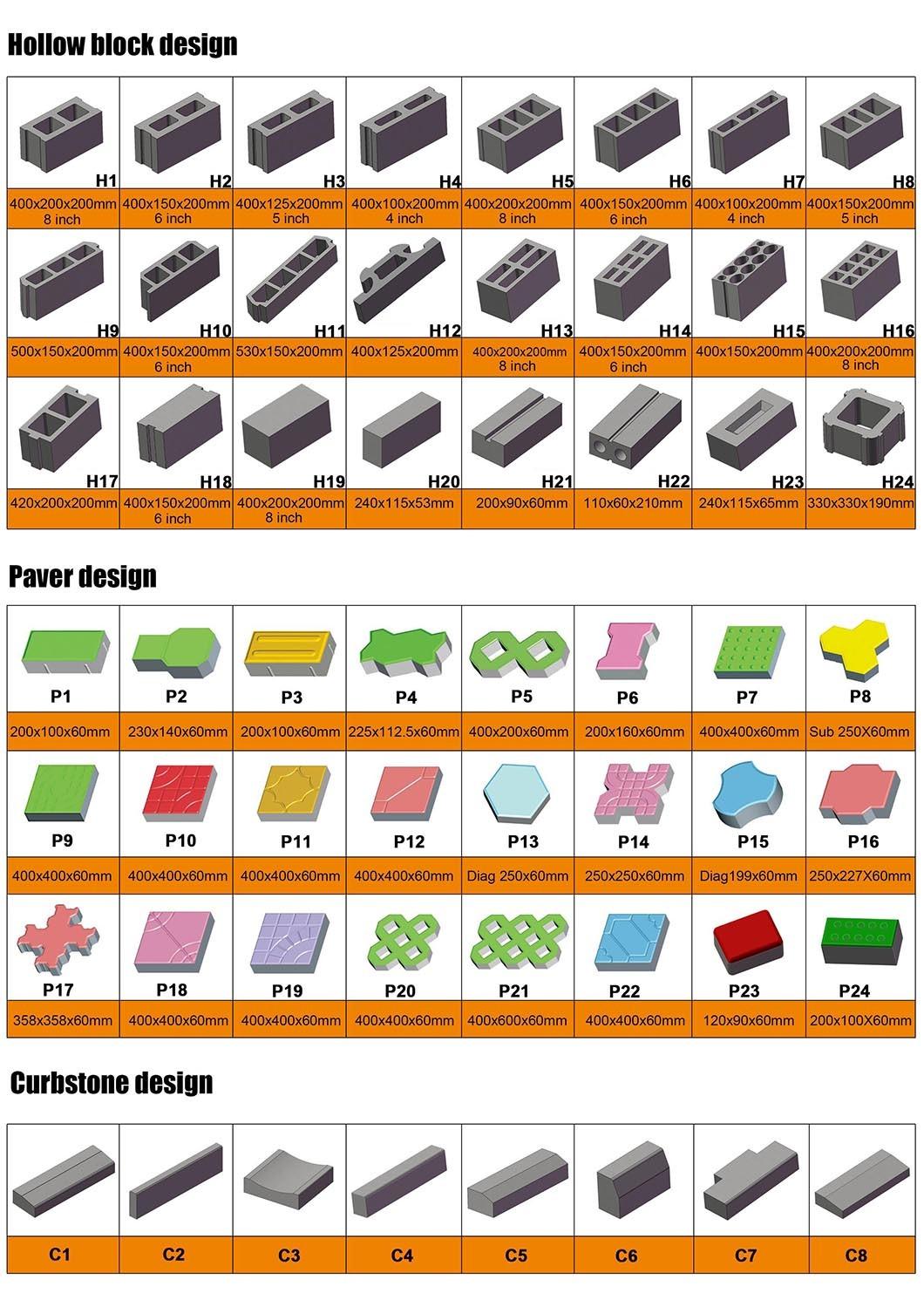

The mould is welded with Q345 steel, which can be directly replaced to produce different brick types by changing moldSemi Automatic Cement Brick and Block Make machine Machine Price for SaleSemi Automatic Cement Brick and Block Make machine Machine Price for SaleSemi Automatic Cement Brick and Block Make machine Machine Price for Sale Size (LXWXH)mm
 Pieces/mold
 Pieces/Hour
 Pieces/Day

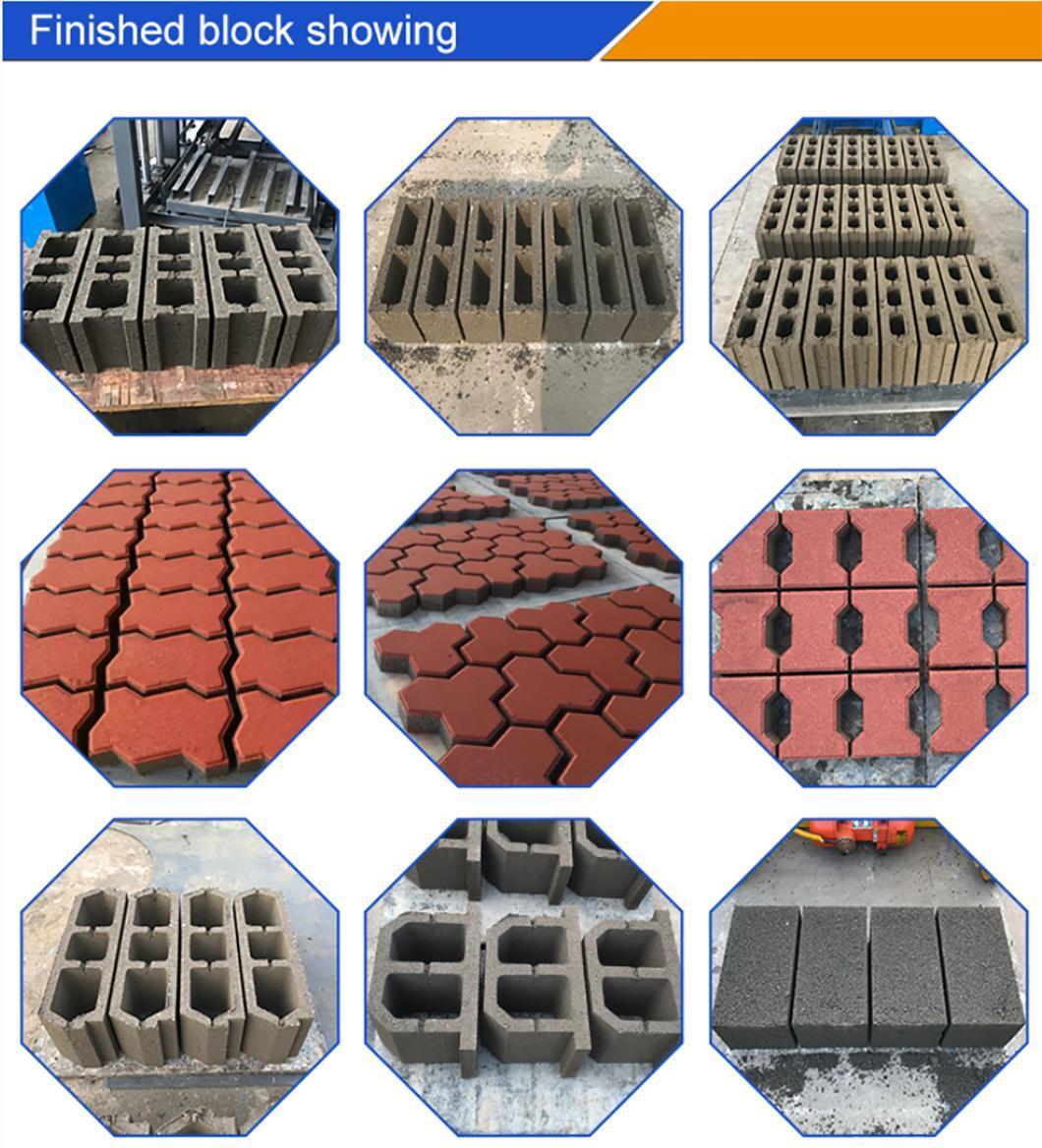

 Hollow block
400x200x200
 42502000Hollow block
400x150x200
 53002400Hollow block
400x100x200
 73502800Solid block
400x200x200
 42502000Paver
200x100x60
 106004800Features:
1. The body design is simple and easy to operate
2. The storage hopper is designed to replace manual feeding and greatly reduce the working intensity.

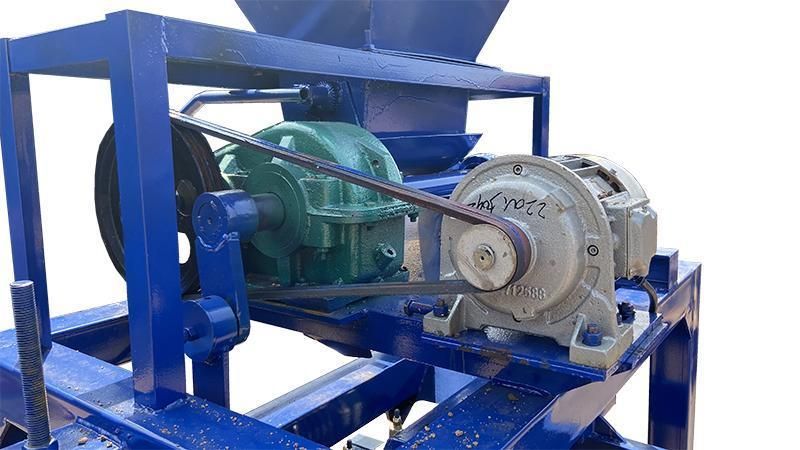

3. The motor pushes and pulls the mold, which is convenient and convenient
4. One machine has multiple functions, and different molds can be replaced Semi Automatic Cement Brick and Block Make machine Machine Price for Sale   Semi Automatic Cement Brick and Block Make machine Machine Price for SaleQTJ4-35 semi automatic cement brick and block make machin machine price for sale Semi Automatic Cement Brick and Block Make machine Machine Price for Sale  Semi Automatic Cement Brick and Block Make machine Machine Price for Sale  Semi Automatic Cement Brick and Block Make machine Machine Price for Sale  Semi Automatic Cement Brick and Block Make machine Machine Price for Sale  Semi Automatic Cement Brick and Block Make machine Machine Price for Sale  Semi Automatic Cement Brick and Block Make machine Machine Price for Sale (1) Q: what is the material for this machine ?
A: you can use concrete material, plus a little cement.
(2) Q: How many kinds of block can be made by this machine ?
A: by changing mold, this machine can make all type design brick ,block or even paver.
(3) Q: Will you provide spare parts for this machine ?
A: we will provide you one year free spare parts.can support machine working for many years
(4) Q:Will you provide installation support?
A: we will provide installation video and manual book.online video avaiable also.
