• Model NO.：LJZ2-CNS-500×4200
• Input Voltage：380V 50Hz
• Input Power：4.5kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：200L,Min
• Spindle Speed：3200r,Min
• Cutting Length：360~4200mm(360~5000mm)
• Cutting Width：10~130mm
• Cutting Height：10~300mm
• Cutting Angle：90 Deg; , 45 Deg; , 67.5 Deg;
• Transport Package：Plastic Film or Depends on Demands
• Specification：5500 * 1700 * 1600mm
• Trademark：Yuefeng
• Origin：Jinan Shandong, China
• HS Code：8477800000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. LJZ2-CNS-500×4200 Input Voltage 380V 50Hz Input Power 4.5kw Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Spindle Speed 3200r/Min Cutting Length 360~4200mm(360~5000mm) Cutting Width 10~130mm Cutting Height 10~300mm Cutting Angle 90 Deg; , 45 Deg; , 67.5 Deg; Transport Package Plastic Film or Depends on Demands Specification 5500 * 1700 * 1600mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 30 Sets/Month

Product Description

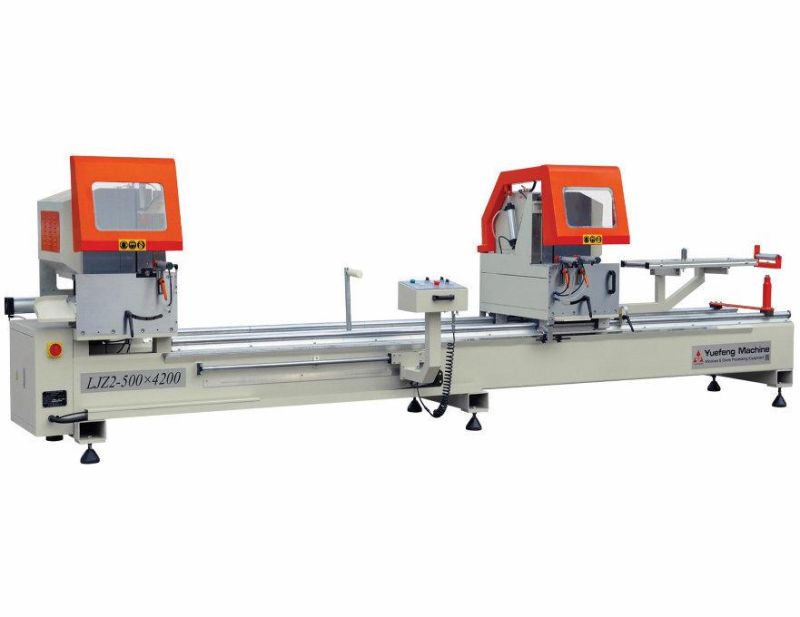

LJZ2-CNS-500×4200  Aluminum Double Head Cutting Machine

 >Used for cutting profiles such as aluminum profile and curtain wall.

>Touched screen and import controlling system adopted with high accuracy and smooth working.

>Two heads cutting angle 90°45°67.5°(22.5°) are available.

>Setting heights of profiles will show the lengths of cutting with different angles (90°, 45°, 67.5°) automatically.

>The system can store various of profiles, convenience and efficiency.

>Digital display system adopted, with high efficiency and accuracy.

Technical Parameter:


Model	LJZ2-CNS-500×4200(5000)
Input voltage	380V 50Hz
Input power	4.5Kw
Air pressure	0.5~0.8MPa
Air consumption	200L/min
Spindle speed	3200r/min
Cutting length	360~4200mm(360~5000mm)
Cutting width	10~130mm
Cutting height	10~300mm
Cutting angle	90° , 45° , 67.5°
Saw feeding speed	0~3m/min
Saw blade standard	φ500×4.4×φ30×Z120
Overall dimension	5500(6300)×1700×1600mm
