C140 C Purlin Roll Forming Machines Manufacturers China

Xiamen Xinhonghua Machinery Co., Ltd.
  • After-sales Service：Yes
  • Warranty：One Year
  • Certification：CE
  • Customized：Customized
  • Condition：New
  • Control Type：CNC

Base Info

  • Model NO.：C140
  • Automatic Grade：Automatic
  • Drive：Hydraulic
  • C89 Profile：140*41.5*9
  • Machine Dimension：6000*1000*1500mm
  • Forming Speed：2400m,Hour(Without Punching&Cutting)
  • Capacity：8-9tons,8h(Overall Speed:Including Drywall Panel,
  • Machine Weight：4t
  • Main Motor Power：11kw
  • Rooller and Die Material：SKD11
  • Feeding Width：233mm
  • Feeding Thickness：0.8-1.4mm
  • Forming Step：12 Stations
  • Voltage：380V,50Hz 3phase(as Customer′s Request)
  • Drive Mode：Gear+Sprocket
  • Transport Package：Nude Packing in The 20′ Container
  • Specification：5100*1600*1100mm
  • Trademark：XHH
  • Origin：Xiamen, Fujian, China
  • HS Code：8455229090
  • Production Capacity：150sets,Year

Description

Overview   Product Parameters

C89 profile dimensionOur Advantages

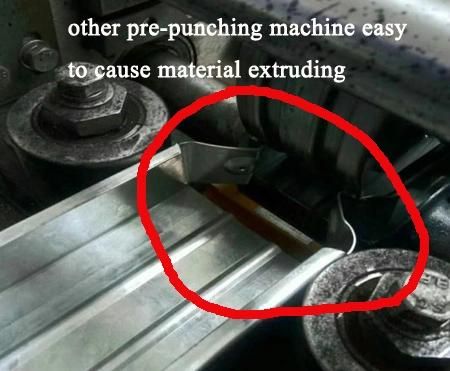

1,Continuous web notch punching without extrusion

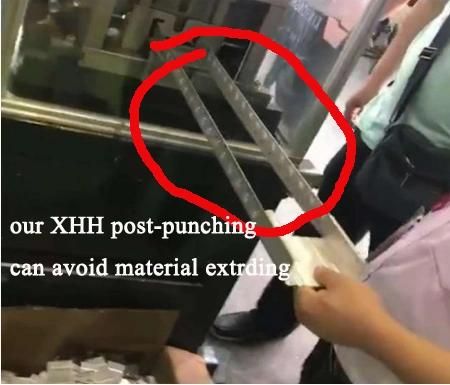

The strength of raw material will be greatly reduced during continuous web & lip notch processing. For the pre-punching machine, the material will be easily extruded and caused the machine jam during roll forming processing. The post-punching and cutting machine can perfectly avoid this problem.

C140 C Purlin Roll Forming Machines Manufacturers ChinaC140 C Purlin Roll Forming Machines Manufacturers China

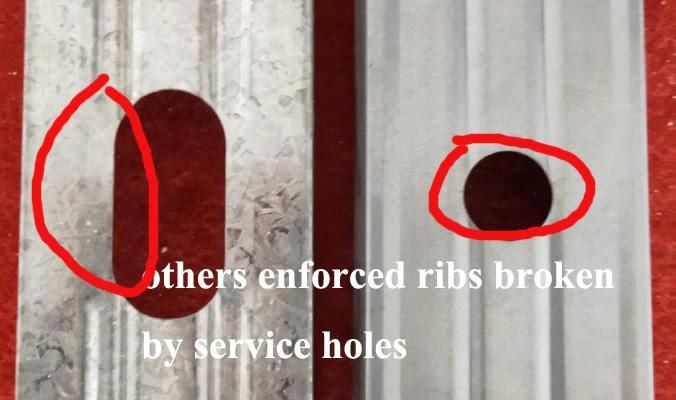

2,Two reinforced ribs to increase the loading capacity up to 128%
We can find the frames with reinforced ribs in the market as well. But the reinforced ribs are broken when encounter with service holes. This will not only cause the loss of reinforcement but also stress concentration.

C140 C Purlin Roll Forming Machines Manufacturers ChinaC140 C Purlin Roll Forming Machines Manufacturers China

3,XHH patent seamless  end cutting: wall purlin connect to floor purlin without gap.

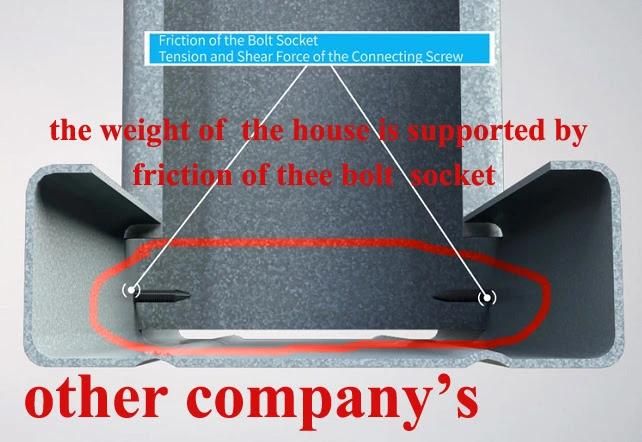

The two ends of the vertical frame can be seamlessly connected to the web of the bottom and top horizontal frames. So the weight of the house can be directly loaded and passed by the vertical frame which makes the house much safer. For the normal connection, the two ends of the vertical connection frame are not seamlessly connected to the horizontal frame web. The weight of the house relies on the friction of the nail socket, the tension and shear force of the connecting screw.

C140 C Purlin Roll Forming Machines Manufacturers ChinaC140 C Purlin Roll Forming Machines Manufacturers ChinaC140 C Purlin Roll Forming Machines Manufacturers China

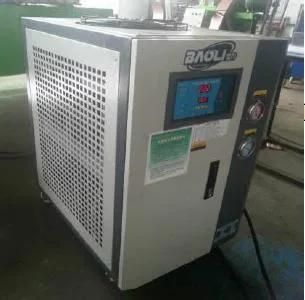

4,Hydraulic system(regrigerator)

The machine has a long-term working period in tropical zone and high temperature days. About 70~80% working time of the machine is for punching and cutting which will easily cause the high temperature of the hydraulic oil under a long time high pressure & high frequency working. So the machine should be equipped with refrigeration system or water cooling system

Some machines are equipped with wind cooling system which absolutely cannot meet the requirement of lowering hydraulic system temperature if the environment temperature is higher than 40ºC. Under stable production ability and low failure rate, the machine is able to ensure that the customer can finish their further fabricated orders with high quality
