Botou Factory Supermarket Shelves Making Machine Automatic Metal Storage Racks Roll Forming Machine

General Industry Tech Hebei Developing Co., Ltd.
  • After-sales Service：Video Techenical Support
  • Warranty：2 Years
  • Tile Type：Storage Rack System
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized

Base Info

  • Model NO.：GEIT
  • Usage：Storage Rack System
  • Transmission Method：Drive with Chains
  • Name：Rack System Roll Forming Machine
  • Roller Material：45# Steel
  • Shaft Material：45# Steel
  • Shaft Diameter：70mm
  • Blade Material：Gcr12 Quenched
  • Basic Frame：400h Steel
  • Machine Structure：Arc Structure
  • Main Motor Power：5.5kw
  • Voltage：380V 50Hz 3phase
  • Roller Stations：14 Rows
  • Feeding Width：300mm
  • Thickness：1.5-3.0mm
  • Speed：20m,Min
  • PLC Brand：Delta
  • Hydraulic Station Power：4kw
  • Transport Package：Standard Packing
  • Specification：11000*1200*1500mm
  • Trademark：ZTRFM
  • Origin：Botou, Hebei, China
  • HS Code：8474801
  • Production Capacity：300 Sets,Year

Description

Main motor power5.5kwHydraulic motor power4kwHydraulic Pressure10-12MPaVoltage380V/50HZ/3PhaseControl SystemPLC (Delta brand)Feeding MaterialPPGI,GIFeeding Thickness1.5-3.0mmSpeed15-20m/minRoller station14 rowsShaft diameter70mmShaft material45# steelRoller material45# steelCutter materialCr12 quenchedDimension11000*1200*1500mmWeightabout 6700 kg
Product Description
Botou Factory Supermarket Shelves Making Machine Automatic Metal Storage Racks Roll Forming Machine

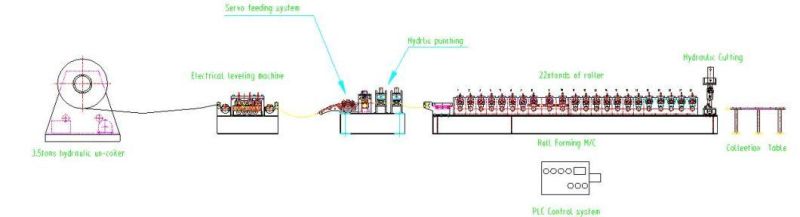

Working flow: Uncoiler - (Pre-Shearer) -Leveling & Guiding - Main Roll Forming Machine - Hydraulic Punching - Hydraulic Universal Cutting -Runout Table

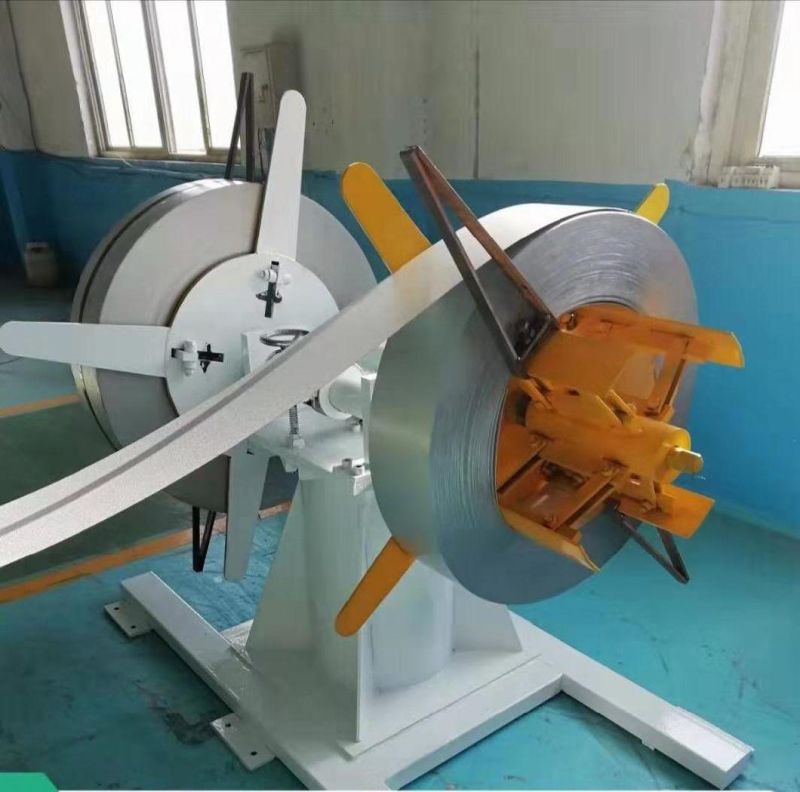

1. DecoilerCapacity:3T
Coil inner diameter:350-450mm
Coil width:300mm
Botou Factory Supermarket Shelves Making Machine Automatic Metal Storage Racks Roll Forming Machine2.Punching machine
Power: 80 tons mechanical press power with Pneumatic brake
Speeds: 60 times /min

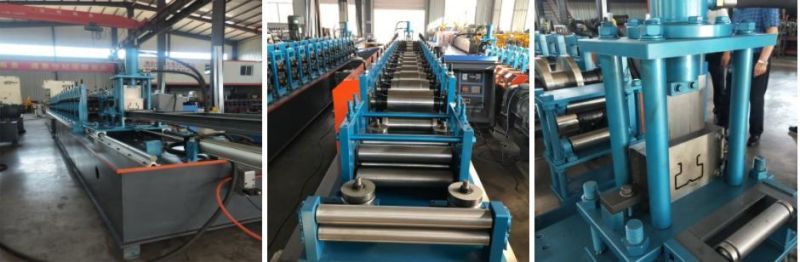

Power:5.5 KW3.Roll forming systemMachine structure:cast iron roller fixer
Main power:11KW *2 sets
Forming stations:16 stations
Way of drive:by chain
Diameter of shaft:70mm Max rolling speed: 10-20m/min
Thickness: 0.8-1.5mm galvanized steel or carbon steel
Material width:100mm~300mm
Material of roller:CR12 with quenched treatment
Material of blade mould:Cr12, quenched 58-62
Way of cutting:hydraulic cuttingLength cutting tolerance:+/-1.0mm
Electrical requirement:380V,50Hz,3P
Botou Factory Supermarket Shelves Making Machine Automatic Metal Storage Racks Roll Forming MachineBotou Factory Supermarket Shelves Making Machine Automatic Metal Storage Racks Roll Forming Machine

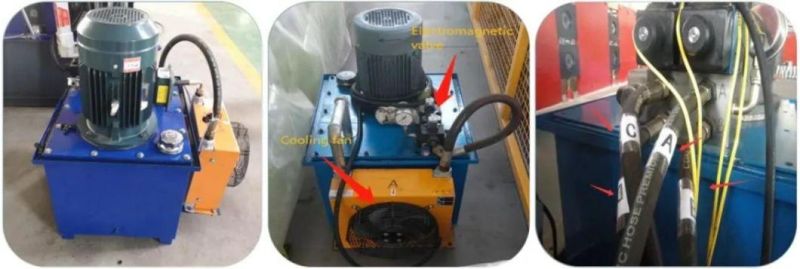

4.Hydraulic stationusage: giving the cutter power for cutting.
advantage:With cooling fun for long time using.

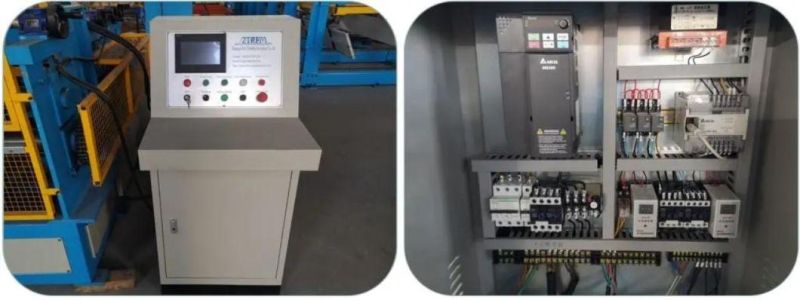

Botou Factory Supermarket Shelves Making Machine Automatic Metal Storage Racks Roll Forming Machine5. PLC control system

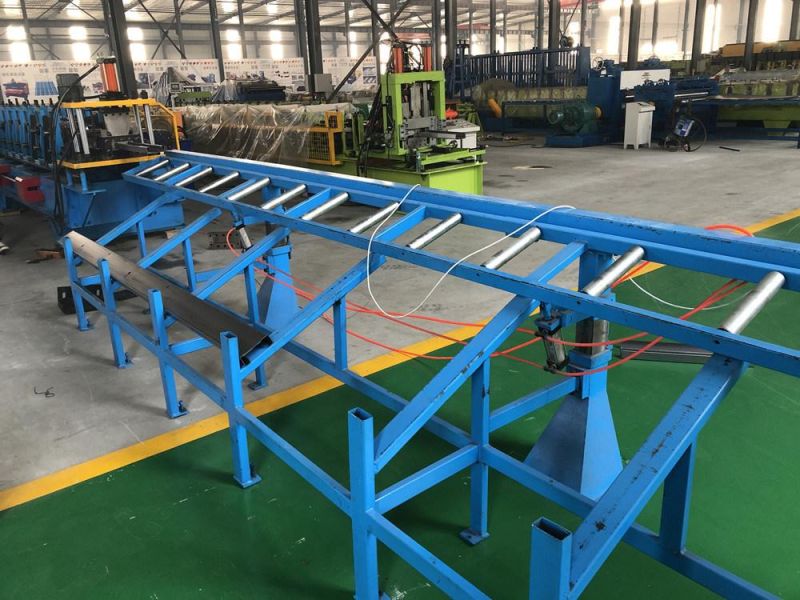

Botou Factory Supermarket Shelves Making Machine Automatic Metal Storage Racks Roll Forming Machine6. Runout table

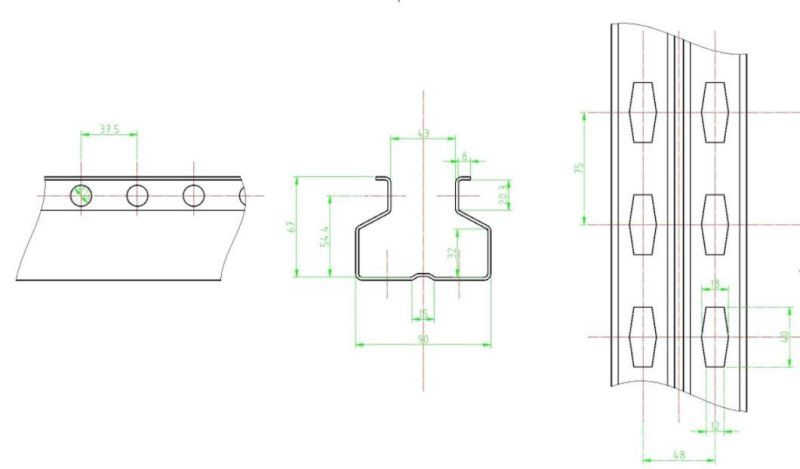

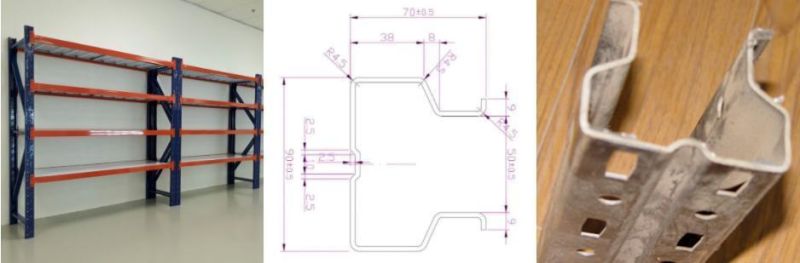

Botou Factory Supermarket Shelves Making Machine Automatic Metal Storage Racks Roll Forming Machinesome regualr profilesBotou Factory Supermarket Shelves Making Machine Automatic Metal Storage Racks Roll Forming MachineBotou Factory Supermarket Shelves Making Machine Automatic Metal Storage Racks Roll Forming Machine

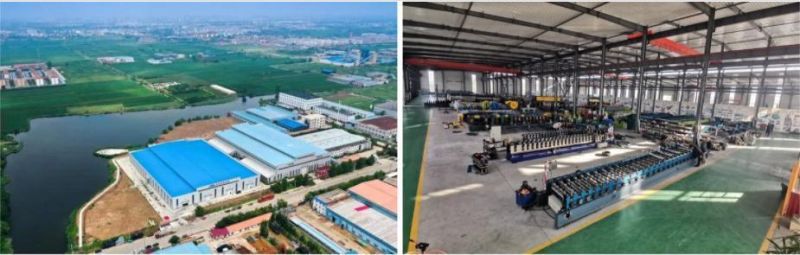

Company Developing
Botou Factory Supermarket Shelves Making Machine Automatic Metal Storage Racks Roll Forming MachineGeneral Industry tech Hebei Developing Co., Ltd (GEIT) is aimed at providing our customers with the best quality metal rolling automation solutions and after-sale s service. At present, our company has more than 10 years of designing and making the cold roll forming machine, and our products have been sold to more than 150 countries and areas, achieving good fame. GEIT are capable of and confident with our product that will make its name in China and will be famous in the world.Backed with the powerful technology and the perfect market service system, and holding the idea of globalization, we have expanded our international market step by step. Opportunities accompanying with challenges, and we are always full of confidence.
Botou Factory Supermarket Shelves Making Machine Automatic Metal Storage Racks Roll Forming MachineFAQ:
Q1. Can you manufacture the roll forming machine according to my profile drawing or picture of finished product ?
A: Yes. Our rich experienced technical team can draft the accurate profile drawing, provide the most suitable technical solution for your required roll forming machine.
Q2. How can we be assured that you will deliver us quality machine with spare parts ?
A: 1. Customers can come to our factory, or send the technical people to our factory for checking the quality.
     2. We can send the technicians to the buyer's factory for the installation of the machine.
Q3. What's your payment terms and delivery time?
A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 45 workdays for delivery.
Q4. Do you have after-sales support?
A: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q5. Do you sell only standard machines?
A: No, most of our machines are customized according to customers specifications, also adopt top brand components.
Q6. What will you do if the machine is broken?
A: We provide 1 year free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the roll forming machine.
Q7. Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q8. How to visit your company?
A:1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
    2)Fly to Tianjin airport, By high speed train From Tianjin to Cangzhou Xi (0.5 hour).
    3) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
