• Model NO.：QTJ4-40
• Raw Material：Cement,Fly Ash,Dust,Sand etc
• Mold Technology：Heat Ttreament and Carbonized
• Machine Material：Q235r Steel
• Color：as Customer Request
• Machine Size：1350*1460*1800mm
• Machine Weight：1.8t
• Land Area：Shaded:20-50m2 Stocking:200-500m2
• Related Accessories：Jq350 Mixer and 600PCS Pallet
• Worker：3-4 Workers
• Pallet Size：850*470*20mm
• Molding Cycle：40s
• Machine Power：8.8kw
• Vibration Motor：4.4kw
• Transport Package：Plywood Box with Iron Angle
• Specification：235steel for machine frame
• Origin：China
• HS Code：8474802000
• Production Capacity：50sets , Month

Basic Info.

Model NO. QTJ4-40 Raw Material Cement,Fly Ash,Dust,Sand etc Mold Technology Heat Ttreament and Carbonized Machine Material Q235r Steel Color as Customer Request Machine Size 1350*1460*1800mm Machine Weight 1.8t Land Area Shaded:20-50m2 Stocking:200-500m2 Related Accessories Jq350 Mixer and 600PCS Pallet Worker 3-4 Workers Pallet Size 850*470*20mm Molding Cycle 40s Machine Power 8.8kw Vibration Motor 4.4kw Transport Package Plywood Box with Iron Angle Specification 235steel for machine frame Origin China HS Code 8474802000 Production Capacity 50sets / Month

Product Description

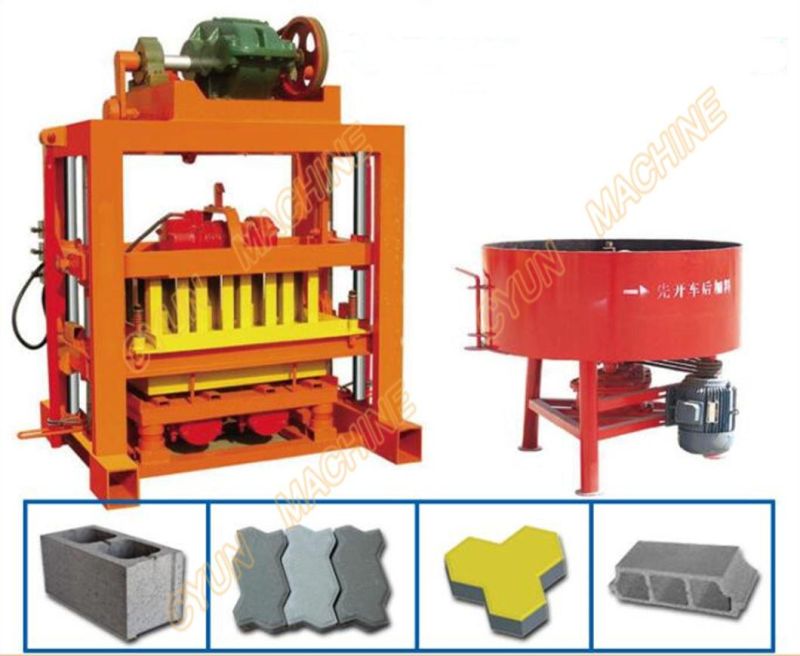

Qtj4-40 Manual Semi Automatic Concrete Brick Cement Hollow Paver Block Making Machine

Machine description:

This small-sized block machine is to meet the demand of many investors with small investment. This machine is of simple and compact structure, convenient operation and easy maintenance. It requires little manpower and investment, but makes high output and quick economic returns. It is especially suitable to produce standard bricks, the strength of which is higher than that of clay bricks. Various types of blocks can be produced with different molds. Therefore, it is an ideal choice for enterprises with small investment.



Main technical parameters

Model	QTJ4-40
Power	8.8KW
Electricity	220V / 60Hz three phase (customized)
Cycle	40 Second
Machine Size	1580*1100*2100mm
Weight	1500kgs
Shaded Area	50m2
Factory Area	500-800m2
Worker	2-3 Workers
Reducer	350

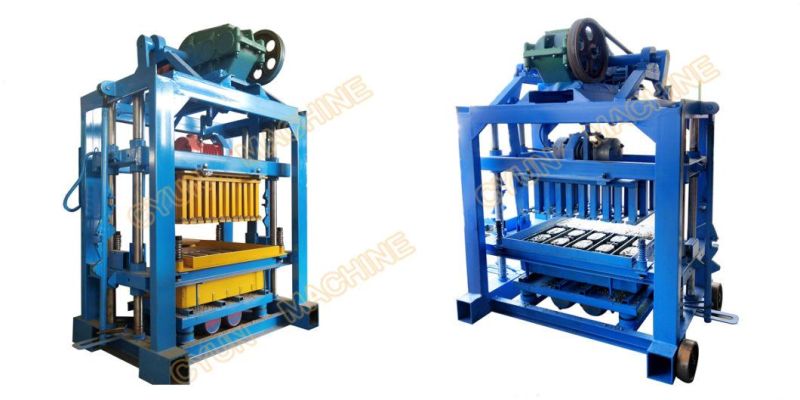

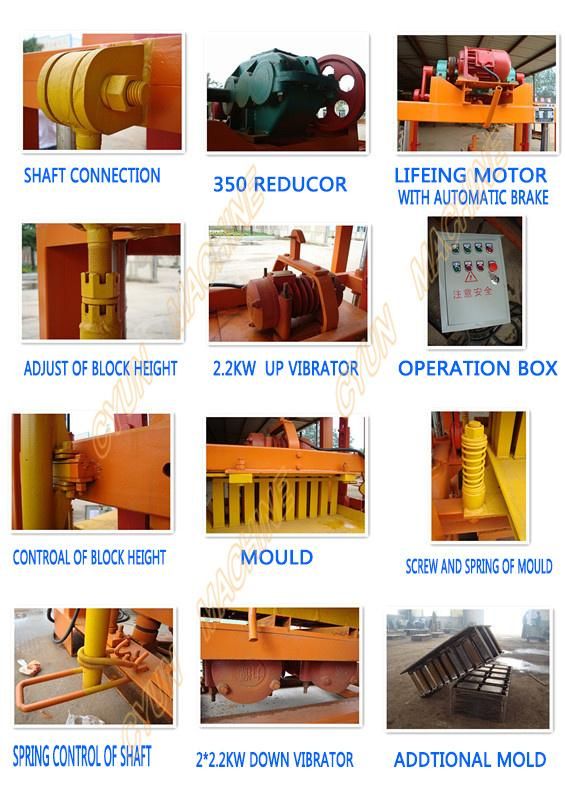

Machine details

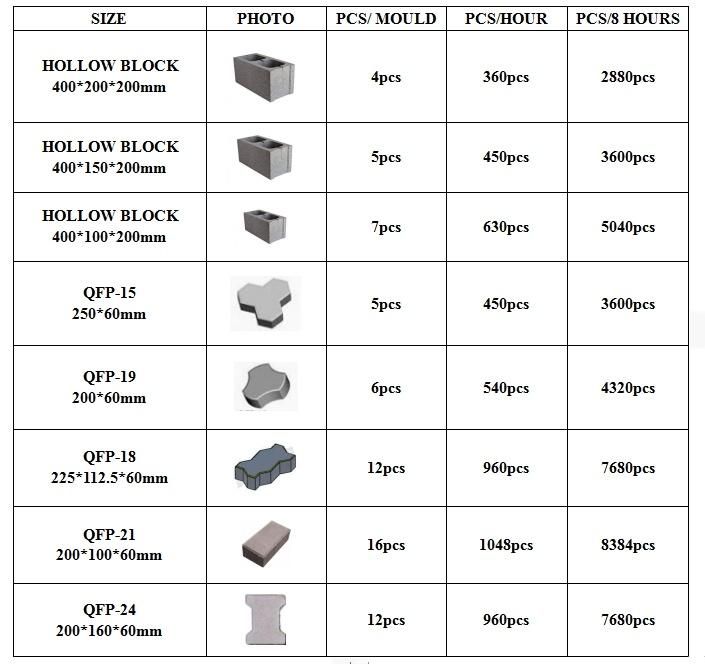

Production Capacity

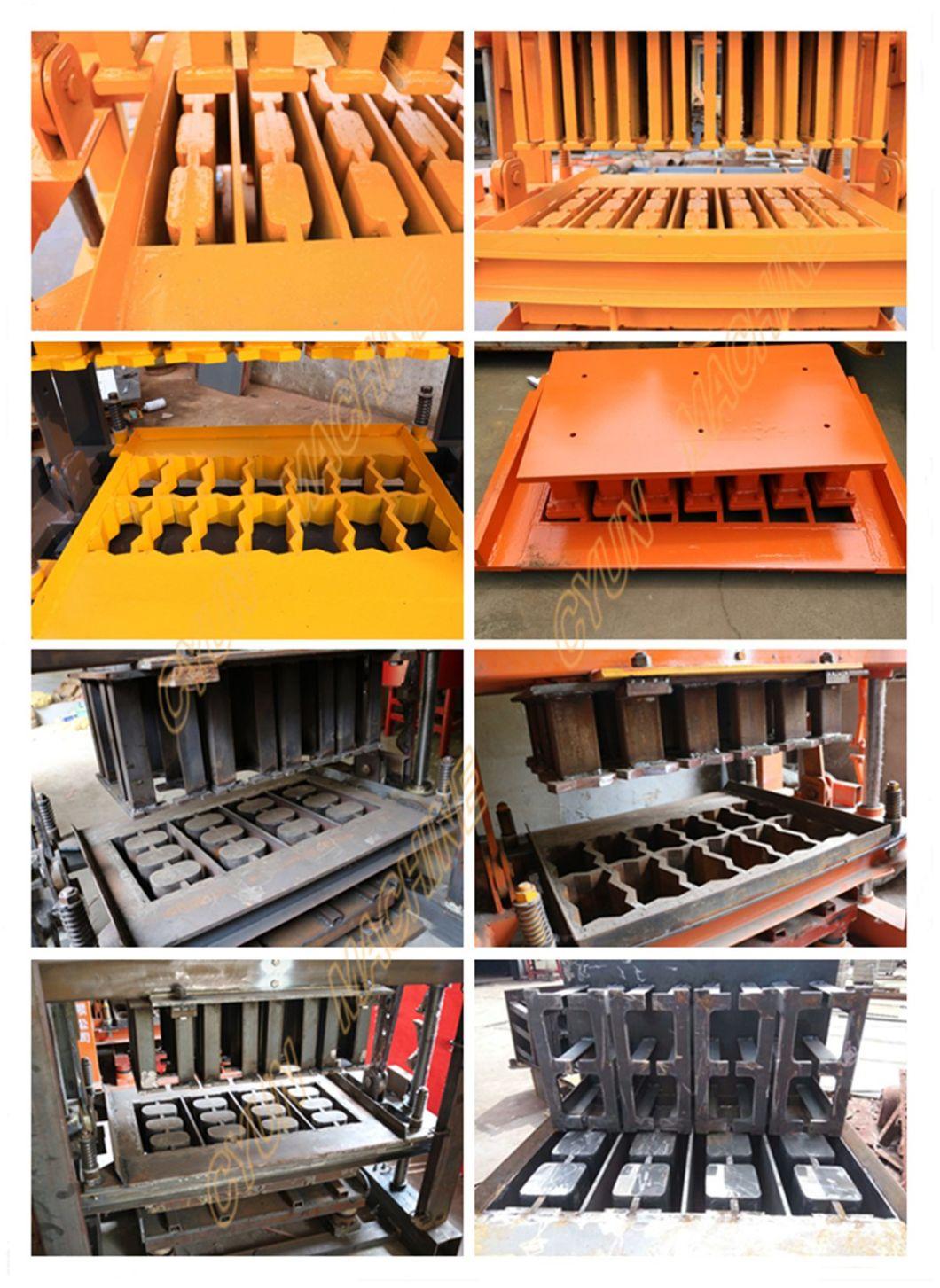

Block molds and Showing

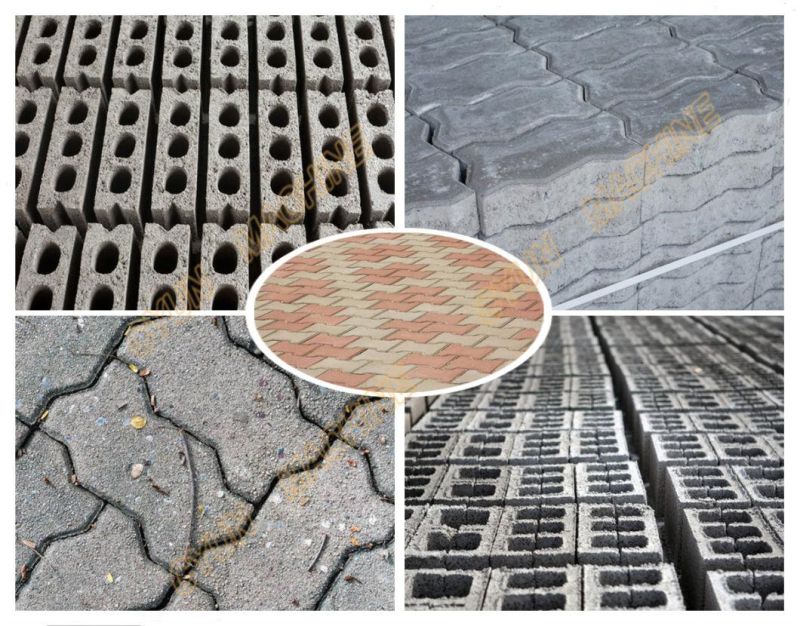

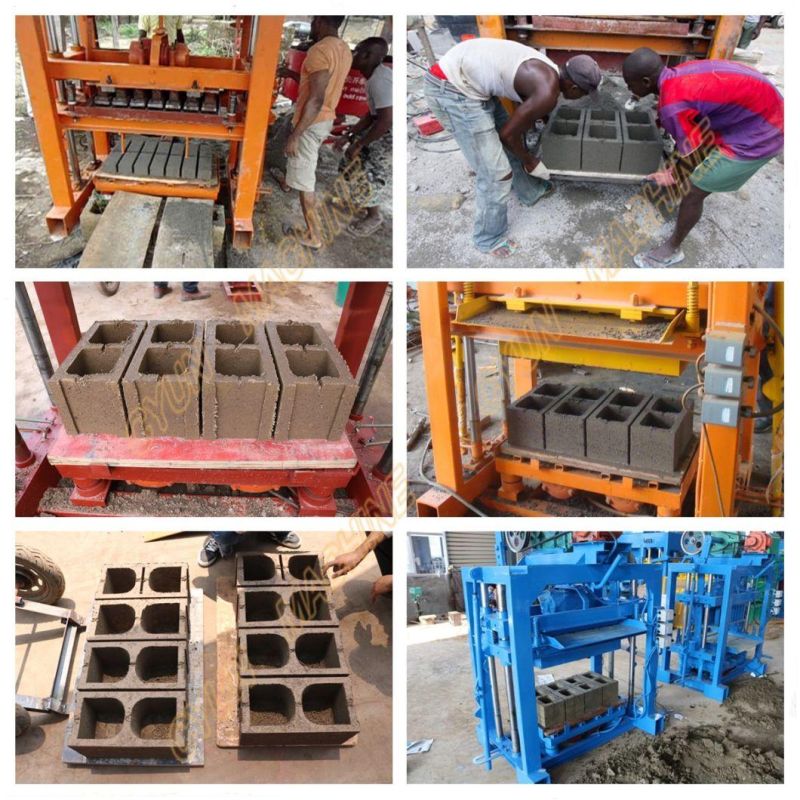

Block Sample and Showing

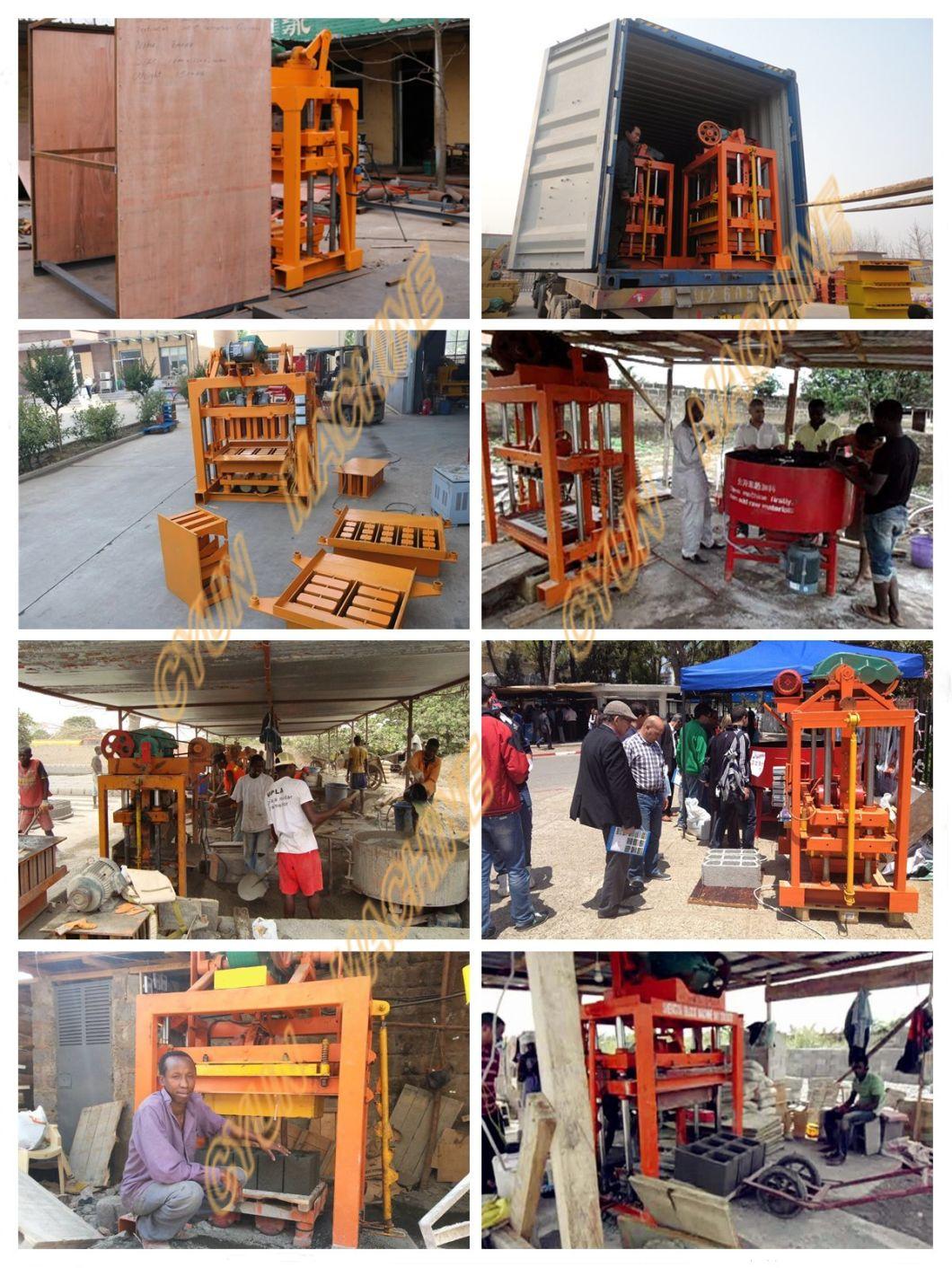

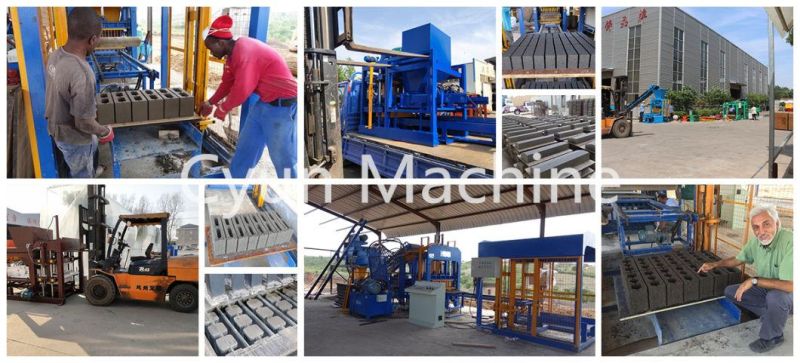

Machine delivery and customers

About us

Our Company

Chuangyun Machinery is a professional manufacturer with 20 years history in concrete block machine and clay interlocking brick machine. Chuangyun Machinery factory is located in Linyi city, Shandong Province, China.

Chuangyun Machinery has been export to more than 100 countries, and are popular brick machine in Africa, South America, Asia because of the quality and good service.

Chuangyun Machinery will keep moving in improving quality of machine, perfecting after-sale service and developing new machines to meet various needs of customers.

Chuangyun Machinery will support customers with more and more success !

Our Service
Pre-Sale

1. Introduce the company's basic information, product catalog and basic machine production process.
2. Welcome to visit our company and products any time.If you need , we can make invitation letters for you.
3. 24 hours online service.

After-Sale

1. Set up, fix, and operate if buyer need.
2. Provide machine-operated videos and pictures
3. Send the accessories you need at any time.

Guarantee

1. Guarantee Period: One year after installation finished at buyer's factory.
2. Within one year, if the customer encounters unsolvable problems, The engineers will selectively fly to customers for local help

FAQ:
Q1: How can i trust your machine's quality?
A: Our products have been checked and got certification ISO9001, and we have exported to many countries and regions in the world, with good reputation and quality of customer feedback. In addition, every machine is carefully tested before shipment to ensure that the machine is operating perfectly when it comes to your hand.

Q2: What about payment terms?
A: 30% Deposit before production,70% before delivery when machine is ready for shipments.

Q3: How to Cure Blocks?
A: Fresh Blocks are stacked and covered with black plastic to avoid moisture loss. The blocks are then watered daily to create a greenhouse effect, allowing the cement to harden and the blocks to strengthen. Cure your blocks for a minimum of 7 days and allow the blocks to dry to another 7 days before building. This will ensure strong good quality blocks.

Q4:How long is the delivery time?
A:20-30 days after receipt of deposit and molds confirmation from Buyer.
