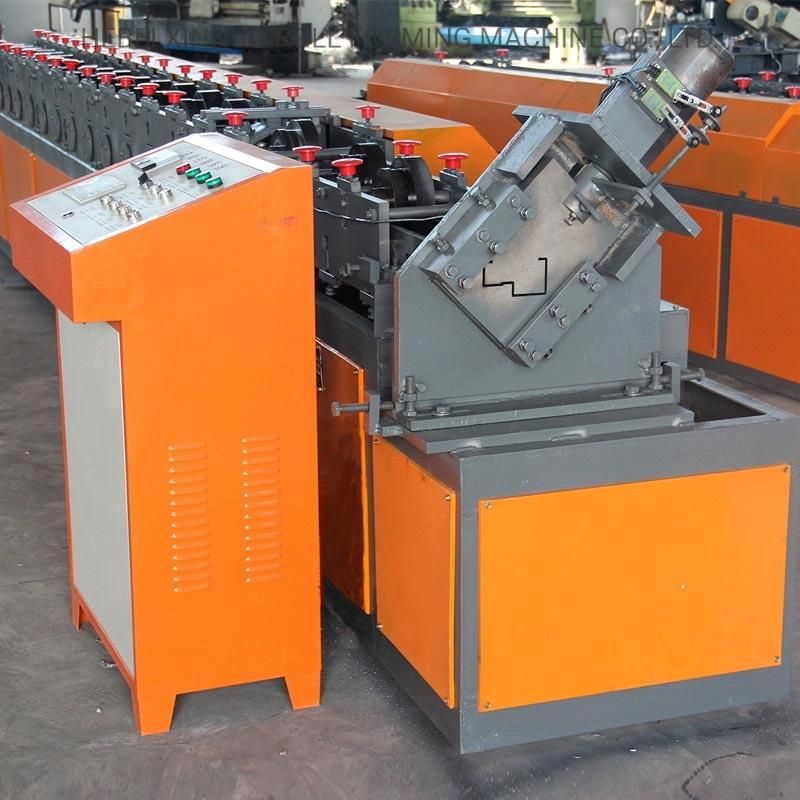

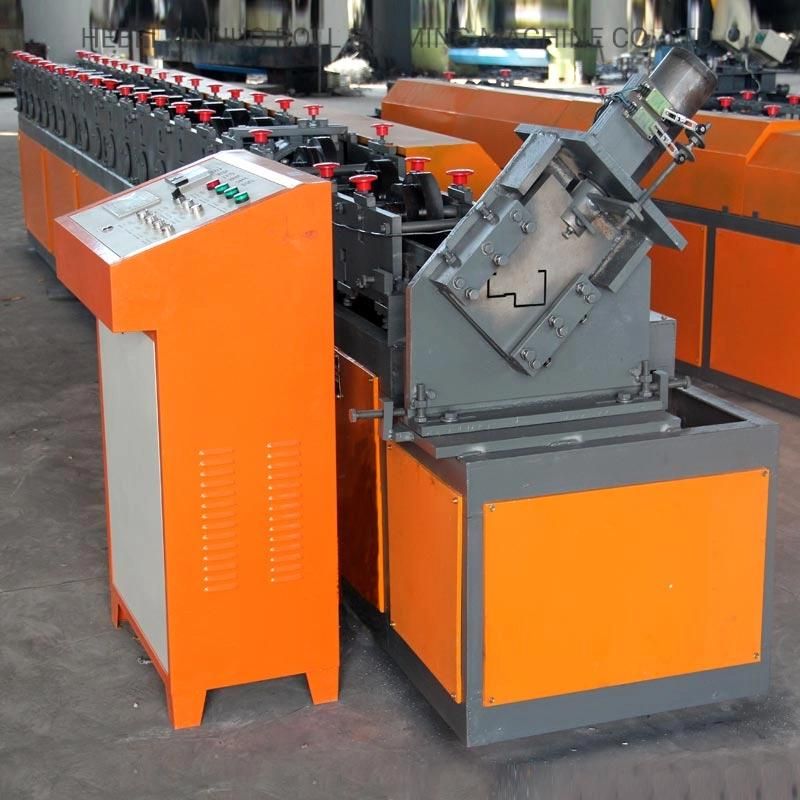

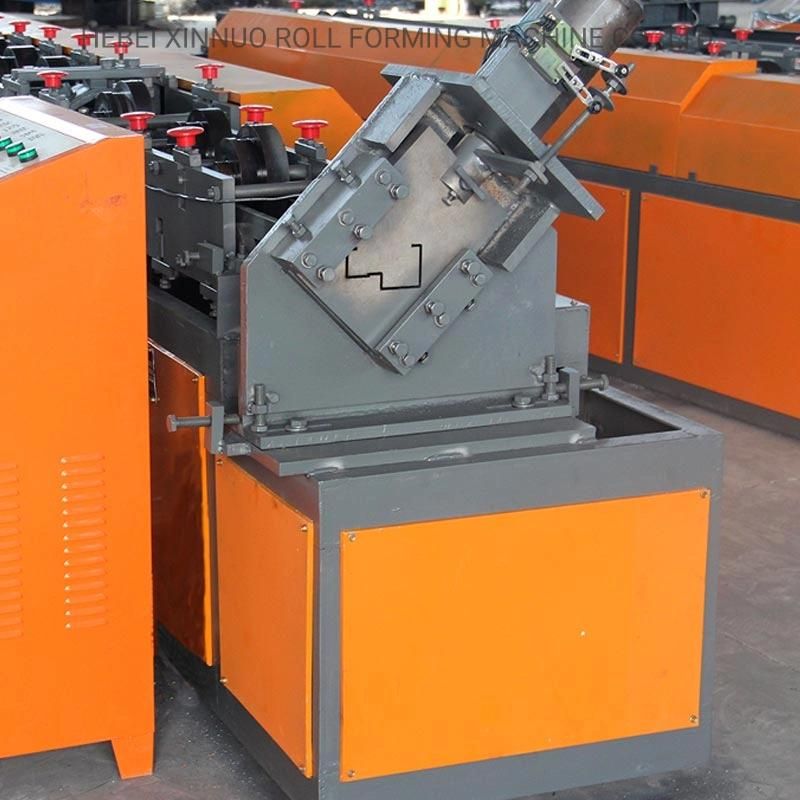

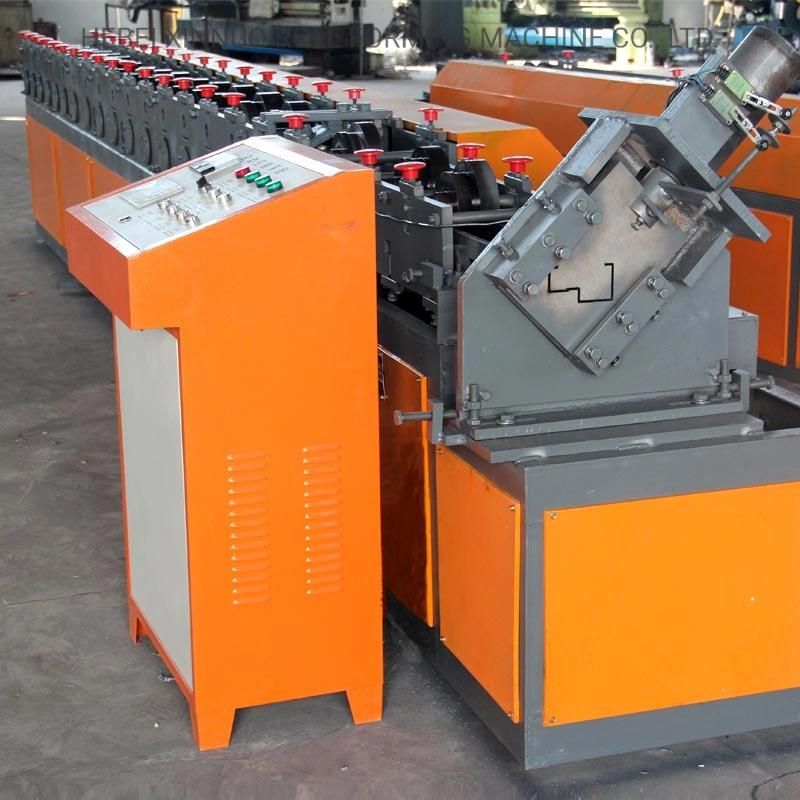

• Model NO.：Door Frame Roll Forming Machine
• Usage：Shutter Door
• Transmission Method：Electric
• Name：Shutter Dooe Roll Forming Machine
• Decoiler：Manual One, Can Load 5 Tons Raw Material

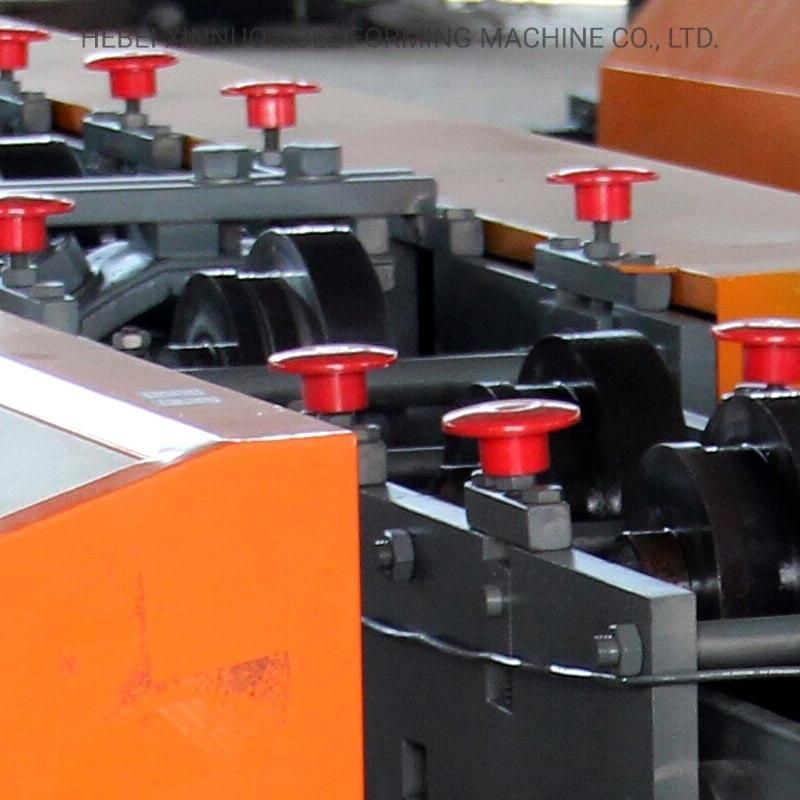

• Roller Station：14 Rows
• Roller Diameter：52mm
• Roller Material：Carbon 45# Steel
• Feeding Thickness：0.3-1.0mm
• Effective Width：as Users Needs
• Blade Material：Cr-12, Quenched, Cr-Plating Size 0.05mm
• Backboard Thickness：14mm
• Cutting Method：Hydraulic Mould Cutting
• Transport Package：Main Machine Is Nude
• Specification：6.5*1.5*1.5m
• Trademark：Xinnuo
• Origin：Hebei
• HS Code：8455221000
• Production Capacity：30 Sets Per Month

Overview Product DescriptionMain parameter of door frame roll forming machine1Suitable to processSteel, galvanized sheet and etc2Width of the plateAs customer need3Thickness of the plateAs customer requirement4De-coiler Manual one, can load 5 tons raw material5Rollers for forming 16 rows6Diameter of the rollerΦ70 mm7Rolling materialCarbon Steel 45#8Main motor power7.5kw9Productivity8-15m/min10Cutting methodHydraulic mould cutting 11Material of the cutting bladeCr1212Hydraulic cutting power 3kw13Processing precisionWithin 1.00mm14Control systemDelta PLC control15Side panel of machine14mm16Main structure of the machine300 H steel17Weight About 3.6T18Dimensions7.5*1.2*1.4m19Voltage380V 50Hz 3phases(changeable as needs)20Certificate CE/ISO/TUVDetailed Photos



Our AdvantagesCompany Profile



Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

     Strong technical resources are the most stable guarantee for our products' quality. We adopt computer software for design drawing, production drawing and installation drawing for steel construction equipment. We adopt advanced computer digital inspection and produce high quality light steel structure equipment. Our technical is updating day by day !

     Our sales network covers all over China. We also sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaijan and other markets.

     Our company has matured after-sale service network, we could provide efficient and satisfactory service for you throughout the period of our cooperation.If necessary, we can supply you with local technical support and send technicians to for installation and operation training.





F. Customer Visit And Exhibition

G. FAQ

1.How to play order :

Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK

2.How to visit our company :

Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.

Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.

3.When we exported the machines :

We have beening making and exporting the machines since from the year of 1998.

4.*Guarantee* :

Lifetime maintenance guarantee.If some part of the machine is broken.We will supply the best original parts for the machine from our own factory. If the parts are damaged due to improper operation, buyer will pay for the freight.


5.*After-sales* :

To give you the best after-sales service, the first give you video call with professional technicians , the second we send technicians to your country to repair the machine,
The buyer shall bear all expenses, including visa, round-trip airfare and suitable accommodation, and pay the salary of usd 100 / day.

6.Contact us:

If you want to get more pictures or videos of the machines, feel free contact us.
We will give you the best experience!



                                                                   THANK FOR YOUT TIME !
                                                    WAITING FOR YOUR MESSAGE !
