Air Duct Manufacturing Auto Line Production Duct Making Forming Machine Line 2

Maanshan SPR Machine Co., Ltd.
  • After-sales Service：Online Support, Free Spare Parts, Field Installati
  • Automatic Grade：Full-Automatic
  • Warranty：1 Year
  • Power：8.5kw
  • Key Selling Points：Easy to Operate
  • Max Working Speed：15mm

Base Info

  • Model NO.：ADL-II-1300
  • Dimension(L*W*H)：5500*1950*1750,5500*2150*1750mm
  • Sheet Thickness (mm)：0.5-1.2mm
  • Application：Carbon Steel Duct Making
  • Function：Duct Work
  • Coiler Max Weight：7t
  • Core Components：Engine, Motor
  • Transport Package：Container
  • Specification：3kg
  • Trademark：sipairui
  • Origin：China
  • HS Code：84552290
  • Production Capacity：100 Pieces ,Year

Description

Weight

(T)

 LWHADL-II-1300  0.5-1.21300 15  75500 1950 1750  8.5 3.0ADL-II-1500  0.5-1.21500  15 75500  2150 17508.5  3.4Function
Duct production line 2 can drive blanking for duct and TDF flange forming machine at the same time. Combined with TDF flange forming machine, rolling reel machine, crimping machine and relevant corner code, duct production line 2 can produce high-quality products.Performance Features
* Aluminium alloy suspension arm makes the machine easy to operate.
* The build-in control cabinet reduces wiring as a whole structure and makes it easy to move.
* The imported configuration is very stable and comfortable to use.Air Duct Manufacturing Auto Line Production Duct Making Forming Machine Line 2 Main Import Configuration
*Germany Siemens CNC system +Schneider electrical system
* Beijing Huade or hydraulic system from Taiwa
* Japan Omron encoder
*Japan Mitsubishi Control system
 Air Duct Manufacturing Auto Line Production Duct Making Forming Machine Line 2 Basic Configuration
*One electric coil cradle (two material trays)
*One set of leveling and beading equipment
*Hydraulic angle-shearing machine with four sets of die
*Hydraulic sheet-shearing machine
*A set of CNC computer control system and production software

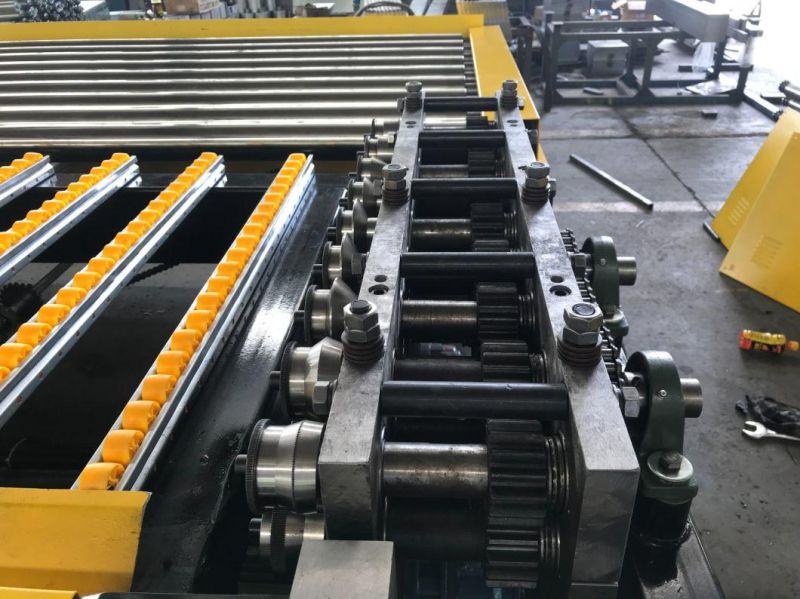

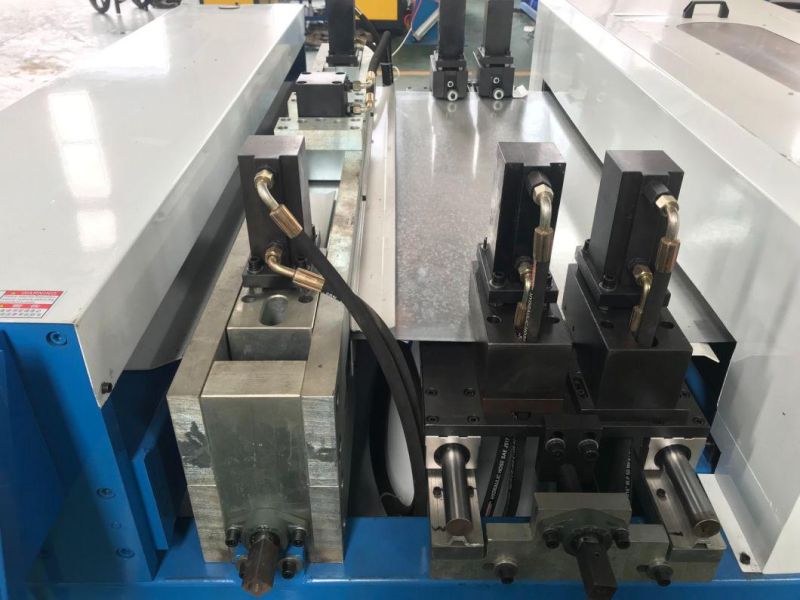

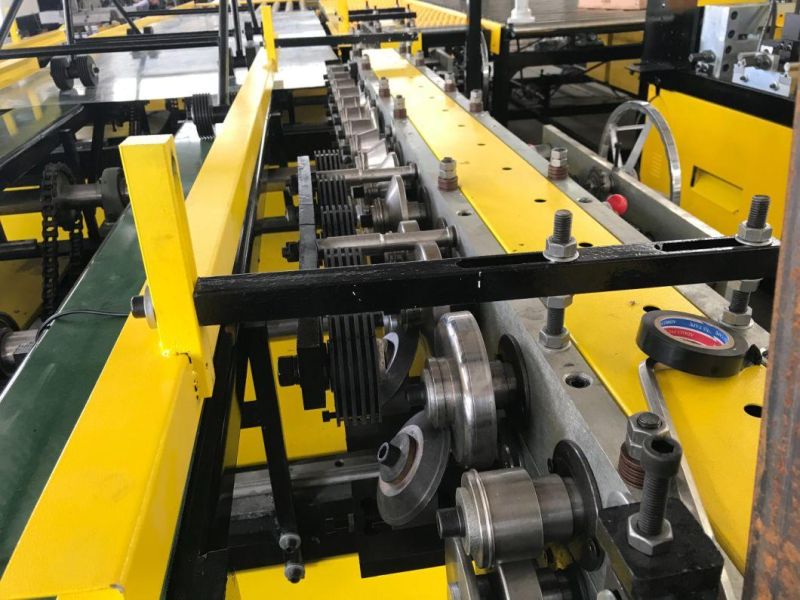

 Air Duct Manufacturing Auto Line Production Duct Making Forming Machine Line 2                                                                           DETAIL IMAGESAir Duct Manufacturing Auto Line Production Duct Making Forming Machine Line 2Air Duct Manufacturing Auto Line Production Duct Making Forming Machine Line 2 Air Duct Manufacturing Auto Line Production Duct Making Forming Machine Line 2Air Duct Manufacturing Auto Line Production Duct Making Forming Machine Line 2

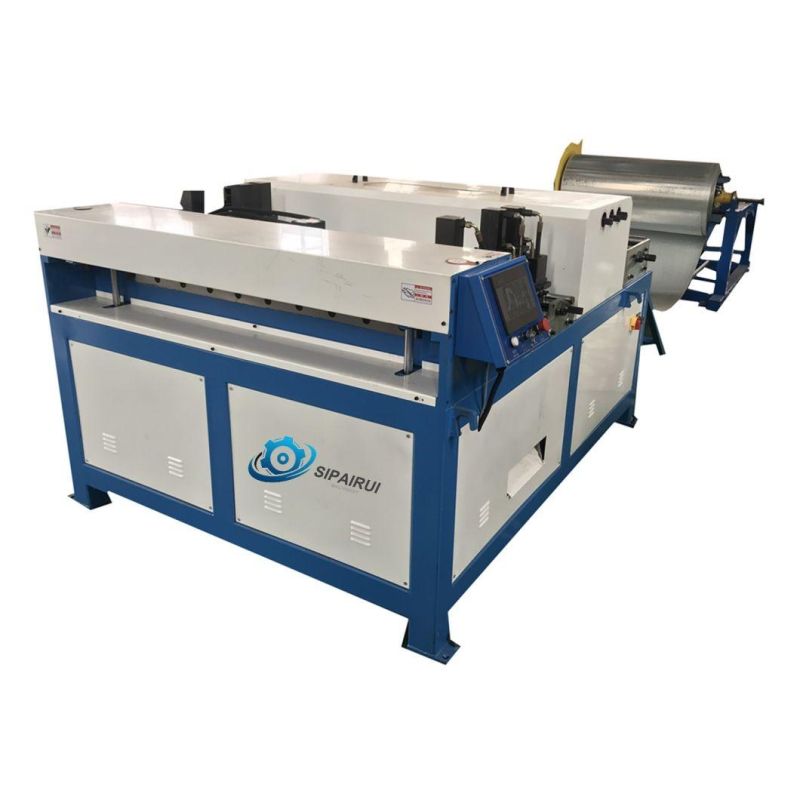

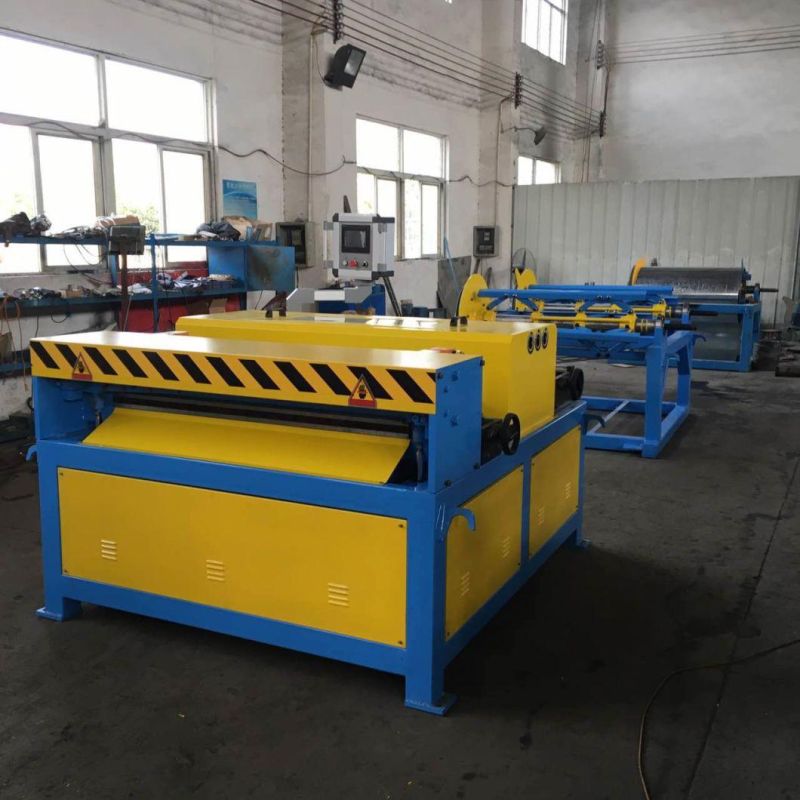

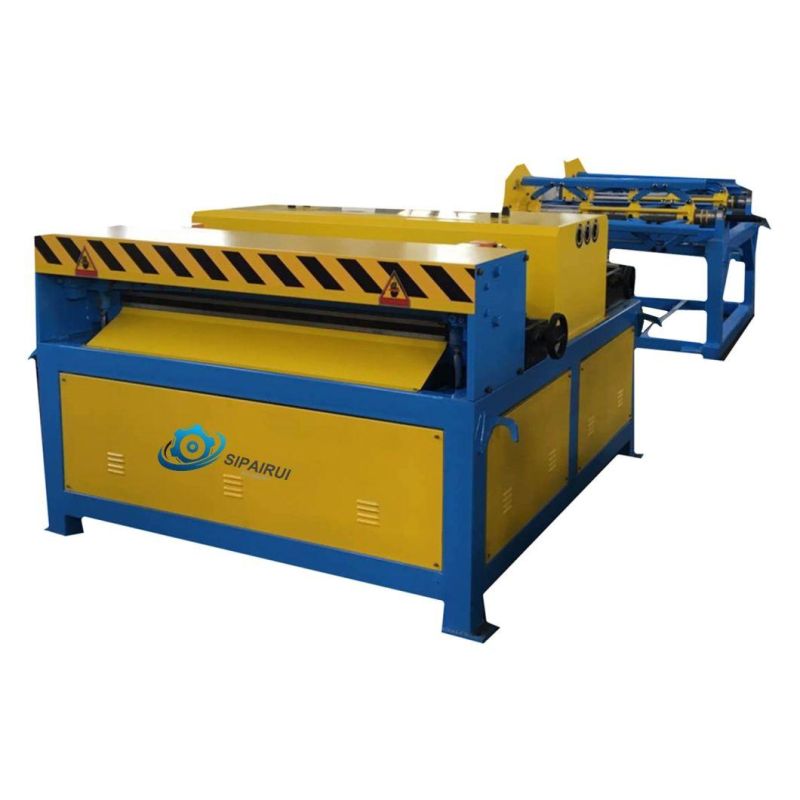

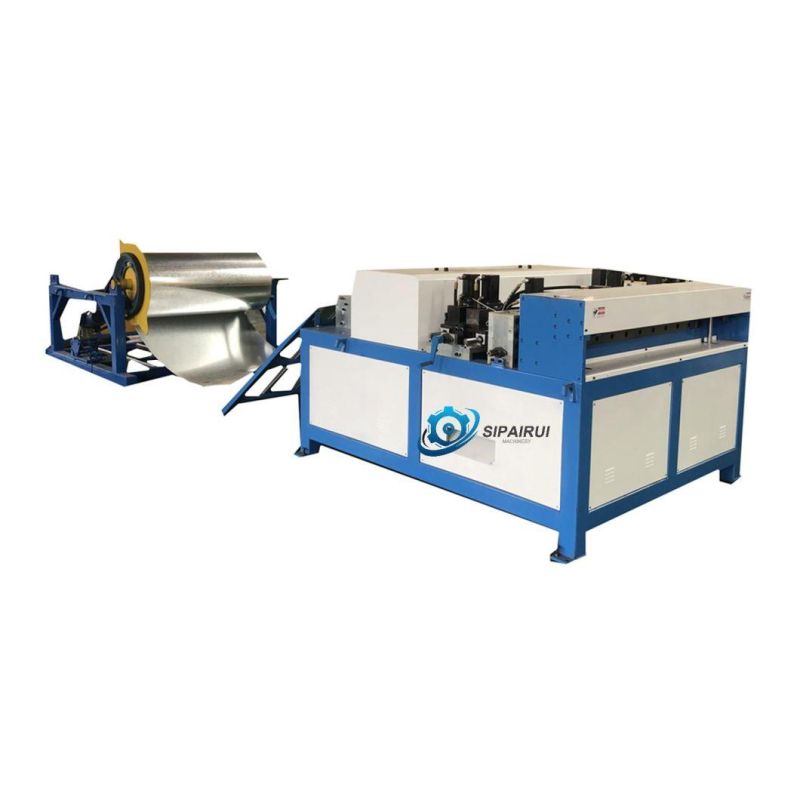

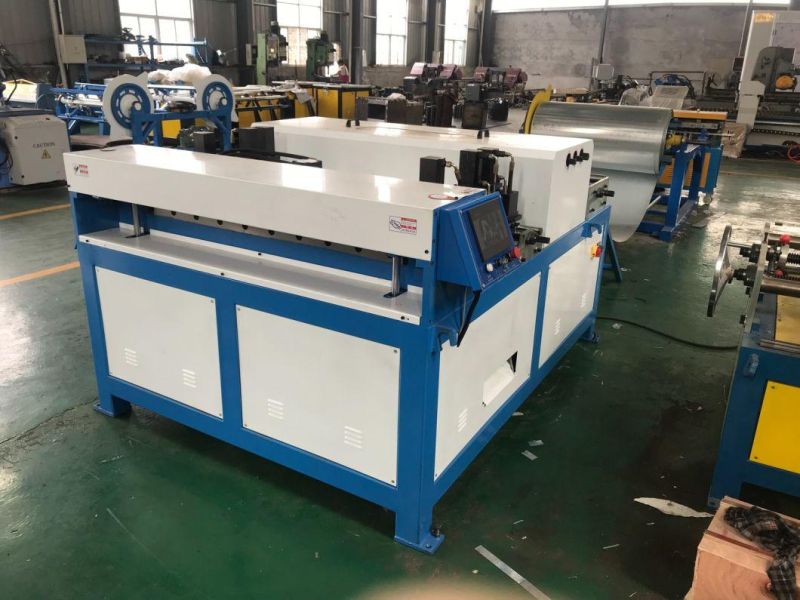

                                                      Product Real Picture
Air Duct Manufacturing Auto Line Production Duct Making Forming Machine Line 2
Air Duct Manufacturing Auto Line Production Duct Making Forming Machine Line 2Air Duct Manufacturing Auto Line Production Duct Making Forming Machine Line 2Air Duct Manufacturing Auto Line Production Duct Making Forming Machine Line 2Air Duct Manufacturing Auto Line Production Duct Making Forming Machine Line 2
