• Model NO.：HR7-10
• Moulding Cycle：7-10s
• Total Weight：2900 Kgs
• Shaping Way：Hydraulic
• Rate Voltage：380-440V as Requested
• Pressure：30-35MPa
• Transport Package：Container
• Specification：2400*1900*2380mm
• Trademark：Duyue
• Origin：China
• HS Code：8474802000
• Production Capacity：100 Pieces

Basic Info.

Model NO. HR7-10 Moulding Cycle 7-10s Total Weight 2900 Kgs Shaping Way Hydraulic Rate Voltage 380-440V as Requested Pressure 30-35MPa Transport Package Container Specification 2400*1900*2380mm Trademark Duyue Origin China HS Code 8474802000 Production Capacity 100 Pieces

Product Description

HR7-10 fully automatic hydraulic soil interlocking brick machine clay  brick moulding machine




Main features of of HR7-10 fully automatic hydraulic soil interlocking brick machine clay  brick moulding machine

1.Four guidepost, the moulds rise/drop steadily.

2.Adopt the proportional valves, can adjust the pressure through PLC control system.

3. There are two oil cylinder on top mould and one oil cylinder under down mould, up and down press at same time, the brick is much stonger.

4.There is the touch screen attached in PLC control box, can adjust the pressure through the touch screen, it is so easy.

5.Adopt the plunger pump and proportional valves, the pressure is double.

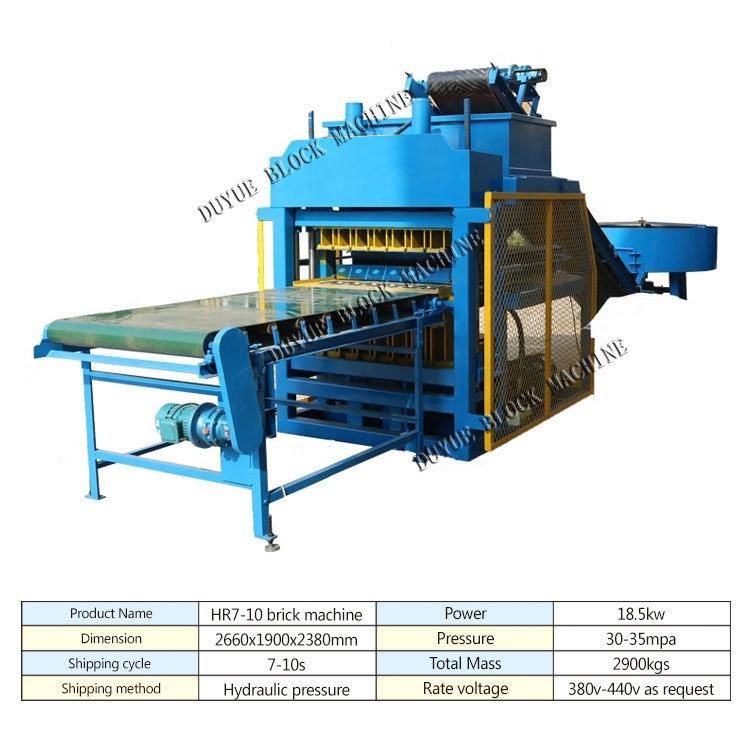

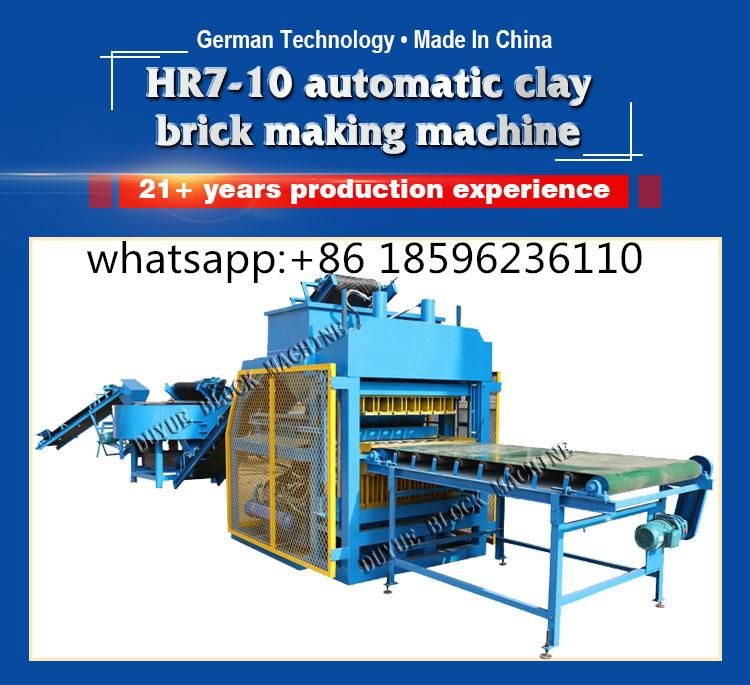

whole view of HR7-10 fully automatic hydraulic soil interlocking brick machine clay  brick moulding machine

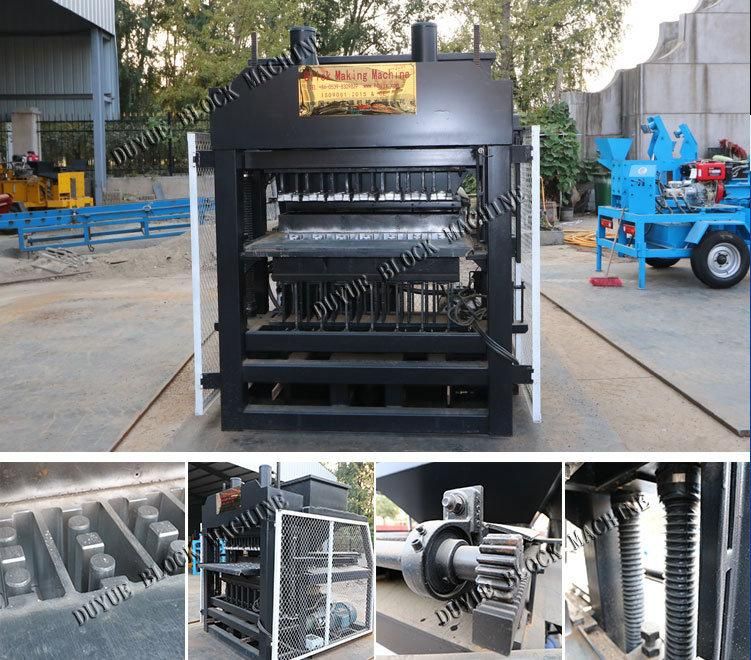

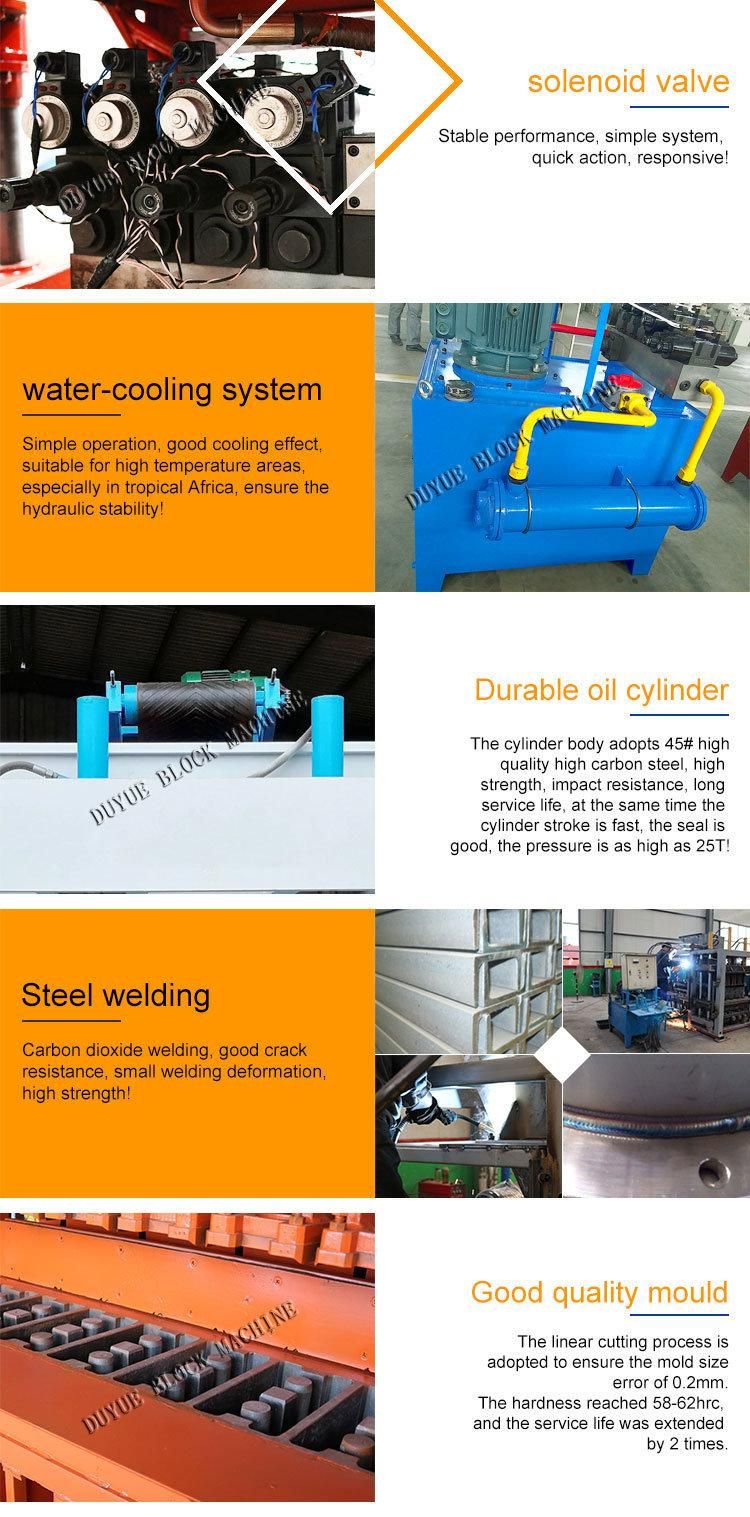

Details information of HR7-10 fully automatic hydraulic soil interlocking brick machine clay  brick moulding machine






Machine Main technical parameters

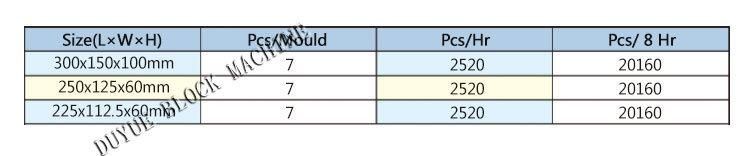

Theoretical production capacity

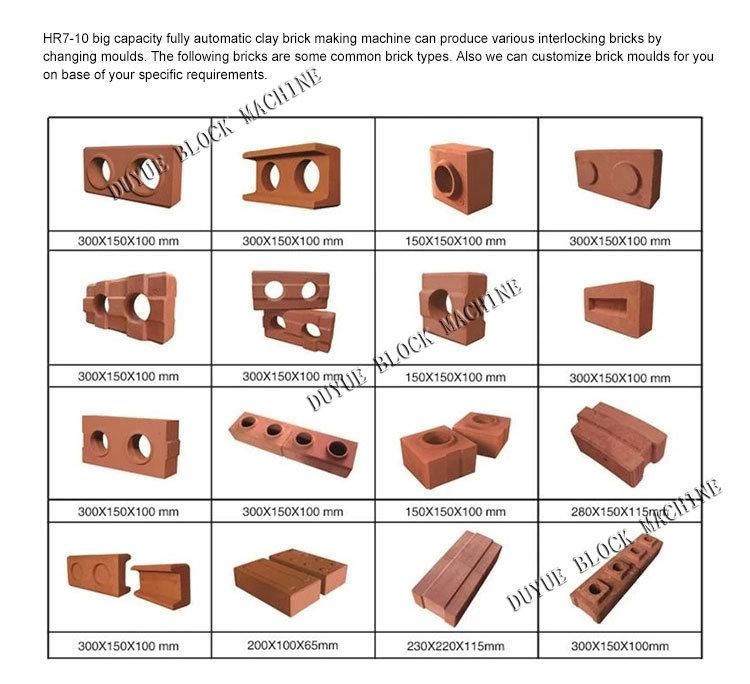

Some soil interlocking brick samples produced by HR7-10 fully automatic hydraulic soil interlocking brick machine clay  brick moulding machine



Our advantages












DUYUE company profile
