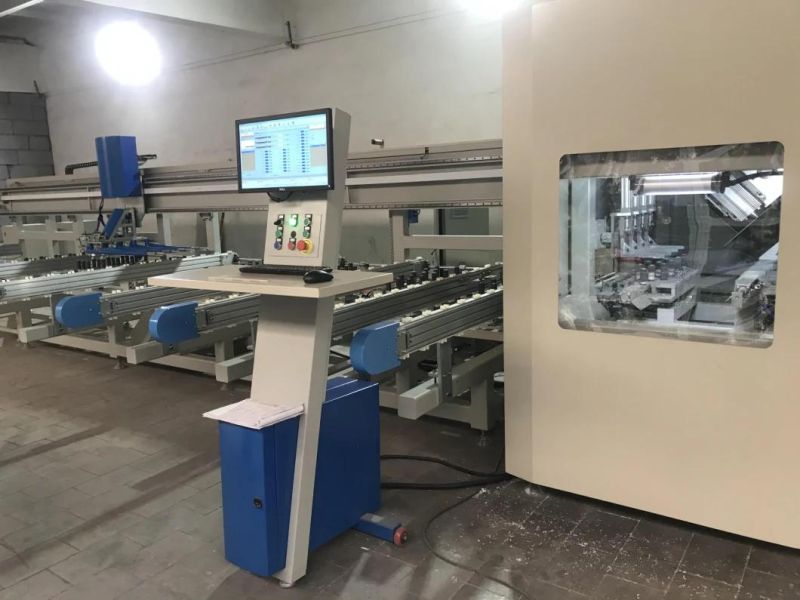

CNC PVC Window Cutting Machine Window Door Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • After-sales Service：Provided
  • Warranty：2 Years
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Automatic
  • CNC or Not：CNC

Base Info

  • Model NO.：SJMC02B
  • Voltage：380V
  • Model：Sjmc02b
  • Input Voltage：380V,50Hz
  • Input Power：10.5kw
  • Air Pressure：0.5-0.8MPa
  • Air Consumption：330L,Min
  • Cutting Width：150mm
  • Cutting Height：120mm
  • Min Cuttig Length：400mm
  • Total Weight：3600kg
  • Overall Dimention：11900*4400*2400mm
  • Transport Package：Depends on Requirements
  • Specification：11900*4400*2400mm
  • Trademark：YueFeng
  • Origin：Jinan, China
  • HS Code：8477800000
  • Production Capacity：3set,Mon

Description

CNC PVC Window Cutting Machine Window Door MachineCNC PVC Window Cutting Machine Window Door MachineCNC PVC Window Cutting Machine Window Door Machine
Features:
1.Automatically download optimized blanking data and process parameters, without manual input and adjustment
2.Automatically cut aluminum window profiles at 45degree
3.Automatically complete the clamping, feeding and cutting of profiles, with a high degree of automation

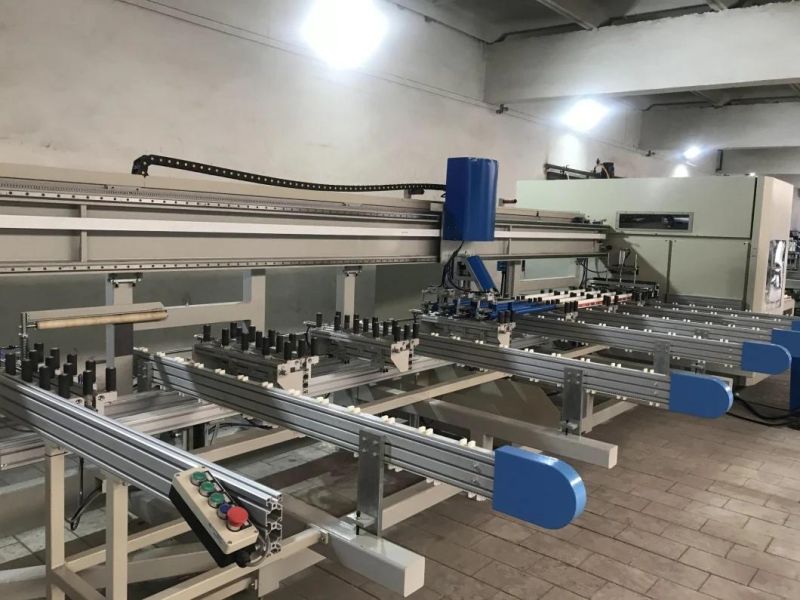

4.Equipped with a circulating feeding system, which greatly improves production efficiency
5.The manipulator can simultaneously clamp and complete the sawing of four profiles at one time, with high production efficiency
6.Imported spindle motor, high processing quality
7.Linear motion guide rail, high precision of processed products
8.Imported drive system, closed loop control, high processing accuracy

Technical Parameter:
ModelSJMC02B
Input voltage380V 50Hz
Input power10.8Kw
Air pressure0.5~0.8MPa
Air consumption330L/min
Spindle speed3000r/min
Cutting length6000mm
Cutting width≤150mm
Cutting height≤120mm
Cutting angle 45°
Total weight3600kg
Saw blade standardφ500×4×φ30×Z120
Overall dimension11900×4400×2400mm
