Building Material Making Machinery

Home > Product > Brick Making Machine

Qt8-15 Hydraulically Operated Concrete Building Bricks Block Making Machine

Linyi Chuangyun Import & Export Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Hydraulic Shock
  • Machine Capacity：4000-30000 Blocks , Day
  • Machine Power：27.5kw

Base Info

  • Model NO.：QT8-15
  • Vibration Force：40-50kn
  • Shaping Cycle：15s
  • Certificate：ISO , Ce , SGS
  • Shaping Method：Hydraulic Pressure + Mold Vibration
  • Machine Color：as Customized
  • Warranty：1 Year
  • Service：Field Installation and Commissioning, Spare Parts
  • Voltage Available：220V , 380V , 440V
  • Transport Package：Full Container
  • Specification：carbon steel
  • Trademark：Chuangyun
  • Origin：China
  • HS Code：8474802000
  • Production Capacity：10 Sets , Month

Description

Main technical parameter1 Dimension of host machine3800*2200*2750mm6Host machine power45kw2Weight of host machine10.5T7Vibration force70-100KN3Molding area1030x8808Mixer modelJS7504Water consumption7-10Ton/day9Pallet size1050*900*285workshop area300m210Voltage380/415/440

Qt8-15 Hydraulically Operated Concrete Building Bricks Block Making Machine

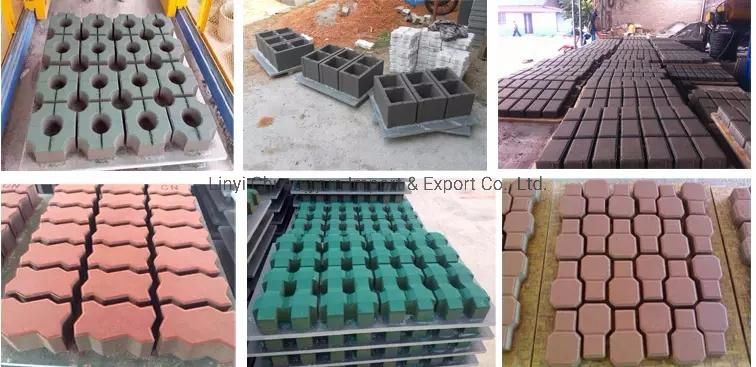

 Theoretical production capacityNoSize(LxWxH)Reference picPcs/MouldPcs/HourPcs/Shift1400x200x200mm 81440-168011520-134402400x100x200mm162880-336023040-268803400x150x200mm101800-210014400-168004400x250x200mm81080-12608640-100805230x110x70mmSolid brick458100-1080064800-864006200x100x60 275760460807200x163x60 18360028800
 Qt8-15 Hydraulically Operated Concrete Building Bricks Block Making Machine
Qt8-15 Hydraulically Operated Concrete Building Bricks Block Making Machine


Qt8-15 Hydraulically Operated Concrete Building Bricks Block Making Machine



Our service

1. In the process of equipment production, we check the quality of equipment production at any time, carry out ex-factory testing before shipment to ensure product quality.
2. Send our engineers to guide customers in installation and commissioning.
3. Free supply of spare parts and tools that enough1 for one year.
4. The warranty period is one year. For any quality problems during the warranty period, our company will repair or replace spare parts free of charge.
5. Our company has been worked for 25 years. We can be found at any time.
