• Model NO.：rain gutter
• Main Power of Machine：5.5kw
• Diameter of Shaft：50mm,Depend on Material Thickness
• Number of Rollers：16 Groups
• Driving of Machine：by Gear
• Cutting：Servo Motor Tracking Non Stop
• Material of Rollers：Cr12 HRC58-60
• Diemension of Machine：6.1*0.8*1.3m
• with Punching：Yes
• Control System：PLC
• Transport Package：According to Customers′ Request
• Specification：Jcx
• Trademark：JCX
• Origin：China Hebei
• HS Code：84552210
• Production Capacity：40sets Per Month

Basic Info.

Model NO. rain gutter Main Power of Machine 5.5kw Diameter of Shaft 50mm,Depend on Material Thickness Number of Rollers 16 Groups Driving of Machine by Gear Cutting Servo Motor Tracking Non Stop Material of Rollers Cr12 HRC58-60 Diemension of Machine 6.1*0.8*1.3m with Punching Yes Control System PLC Transport Package According to Customers′ Request Specification Jcx Trademark JCX Origin China Hebei HS Code 84552210 Production Capacity 40sets Per Month

Product Description

rain gutter roll forming machine



TECHNICAL PARAMETERS

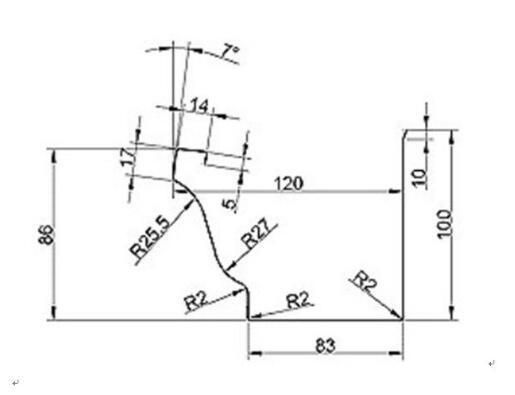

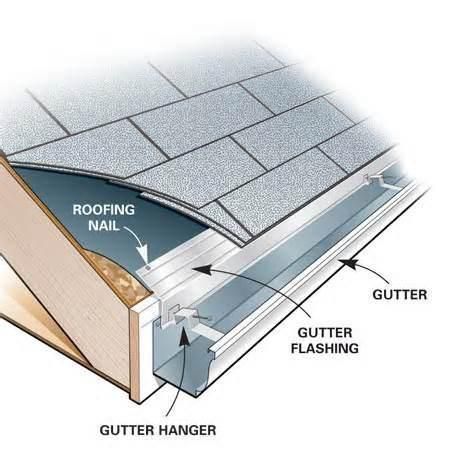

1.gutter specification:





1)Material:hot dipped galvanized coil,galvalume steel



2)Thickness of material:0.35-0.7mm

3)Yield strength:235-340mpa

4)Width of material:

5)Sizes of imposing:

Main technical conditions of the forming line:

Temperature:-10ºC~35ºC

Voltage:380V,50HZ,3P(or according to customer request)

Air pressure:0.6~1.2Mpa

Total Power:≈21kw

Color:
Production capacity:0-50meters/min(without punching,no stop cutting)

  0-30meters/min(with punching,no stop cutting)

Dimension (L*W*H): L≈ 5.3 m, W≈ 0.9 m, H≈ 1.5 m

Specification of the shipping container:(the number is pre-estimated ≈, final data should be confirmed in two weeks before delivery.)

Container	20FT	40FT	40HQ
Number	1

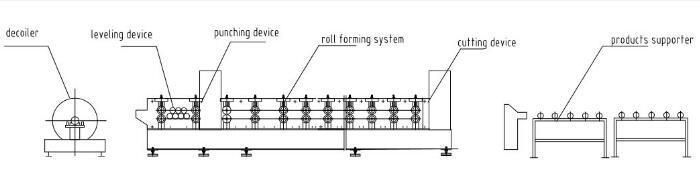

3. Flow Chart of roll forming machine:

4.Main components:

No.	Components Name	Unit Set/Pcs	Marks
1	Two head Manual de-coiler	1
2	Feeder	1
3	Roll Forming Machine	1
4	Punching system	1
5	Electrical control system	1
6	Hydraulic Guillotine	1
7	Powered Receiving table	1
8	Spare parts	1
9	Technical Manual	1

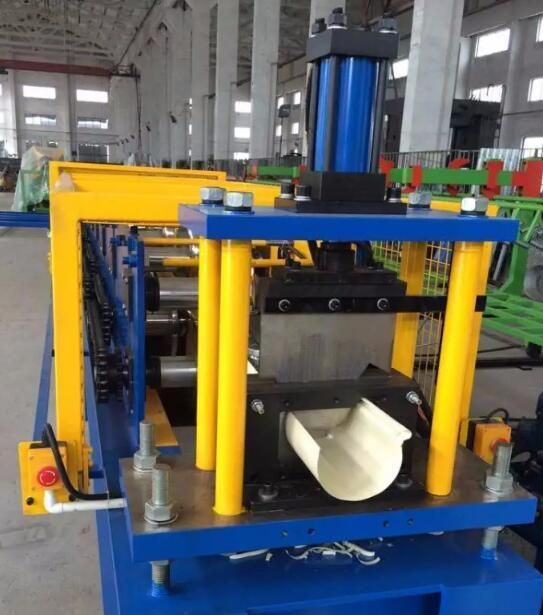

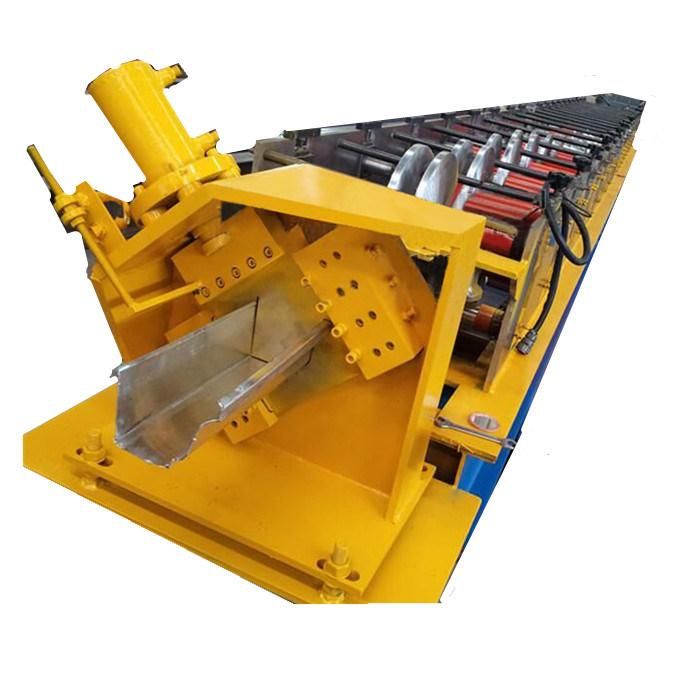

5.Photos of Machine:



6.Technology parameters:

The weight of machine is about 3.5tons

The total dimension of machine:5300(L)*900(W)*1500mm(H)

6.1Two head head Manual uncoiler: 1SET

Capacity of uncoiler:2-3tons

Expansion of segment:Manual

Rotation of segment:ManualNumber of segment:4

Approximate size:Length:2.3m width:1.1m height:1.5m

6.2 Feeding&levelling:

Entrance and adjustable wheel: 2rolls

Qty: 1

6.3Main forming machine:

It adopts separate wall structure with gear box transmission.The machine base is made by welded steel with destressing treatment.

  Coil thickness:0.35-0.8mm
Main motor type: 3 phase asynchronous motor

Main motor power: 15KW

Forming speed: 0-50m/min(without punching),0-30m/min(with punching)

Approx. 14 groups rollers

Roller : Roller Material is forged Cr12, HRC58-62

Shaft:  Shafts  of rollers are tooled by grinding machine for two times to ensure the precision of final product. Diameter of main shaft: ø60mm

Material of shaft:40cr,quenching HRC45

Transmission type: by  chain

Qty: 1
Power  cutting:3kw

6.4Hydraulic System:

 Material of blade: Cr12Mov(HRC58-62)

Length measuring: Automatic encoder length measuring

(Encoder Brand:Omron)

Power of cutting:5kw

Punching die:adopt cell structure design,the die is adjustable.It has features like long life,easy replacement and repairing.


 Spare parts(free)



No.	Name	Quantity	Country
1	Spacer	Several	China
2	Cylinder seal	several	China
3	Fuses	4pcs	China
4	Control Button	2pcs	China
5	Sensor	4pcs	China
6	Hook spanner	2pcs	China
7	Encoder	2pcs	China
