Xinnuo CNC Aluminium Panel Alu Zinc Profile Steel Sheet Chrome Plate Trapezoid Shape Glazed Tile Roll Making Machines
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- After-sales Service：We Have a High-Quality After-Sales Service Team.
- Warranty：1 Year
- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
Base Info
- Model NO.：RIB ROOF MACHINE
- Usage：Roof, Wall
- Transmission Method：Machinery
- Weight：9000kg
- Feeding Width：1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm
- Roller Material：45#Steel
- Production Speed：15 M,Min
- Rolling Thinckness：0.3-0.8mm
- Control Sysem：PLC Automatic Control
- After Warranty Service：Video Technical Support
- Voltage：380V
- Transport Package：Solid Packaging
- Specification：7.0*1.5*1.55m
- Trademark：XINNUO
- Origin：Buotou Hebei, China
- Production Capacity：15 Set,Sets Per Month
Description

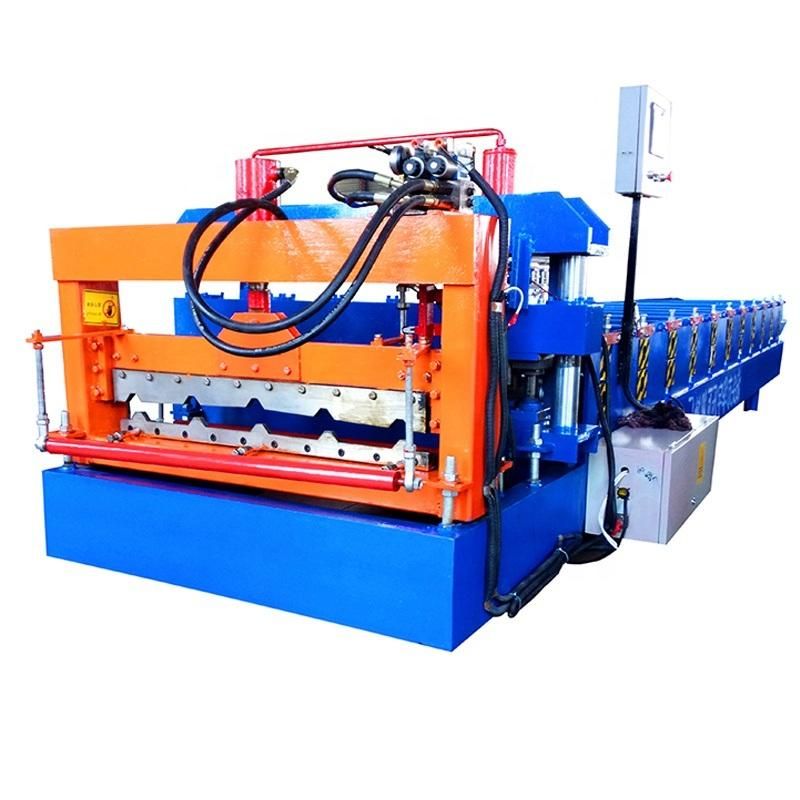

Main parameter of 840 glazed tile machine1 Suitable to process Color steel plate 2 Width of the plate 1000mm 3 Thickness of the plate 0.3-0.8mm 4 De-coiler Manual one, can load 5 tons raw material 5 Rollers for forming 11 rows 6 Diameter of the roller 72mm 7 Rolling material Carbon Steel 45# 8 Main motor power 4kw 9 Productivity 0-3m/min 10 Cutting method Hydraulic mould cutting 11 Material of the cutting blade Cr12 12 Hydraulic cutting power 3kw 13 Processing precision Within 1.00mm 14 Control system Delta PLC control 15 Side panel of machine 14mm 16 Main structure of the machine 300 H steel 17 Weight About 4.0T 18 Dimensions 7.0*1.5*1.55m 19 Voltage 380V 50Hz 3phases(changeable as needs) 20 Certificate CE/ISO 21 22 Custom According to customer's requirements
This set of schemes are not only high value, but also the configuration is superior, and the whole process is automated.↓↓↓↓↓↓Click here to get in touch with us↓↓↓↓↓↓ ↓↓↓↓↓↓Click here to get in touch with us↓↓↓↓↓↓
Company Profile
FAQ1:How to play order:
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can
pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4.What's the after- sale service:
we sent technician to your country to fix the machine.The buyer should bear all the cost including:
visa, round trip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
5.How about the warranty: 12 months limits warranty.
Configurations

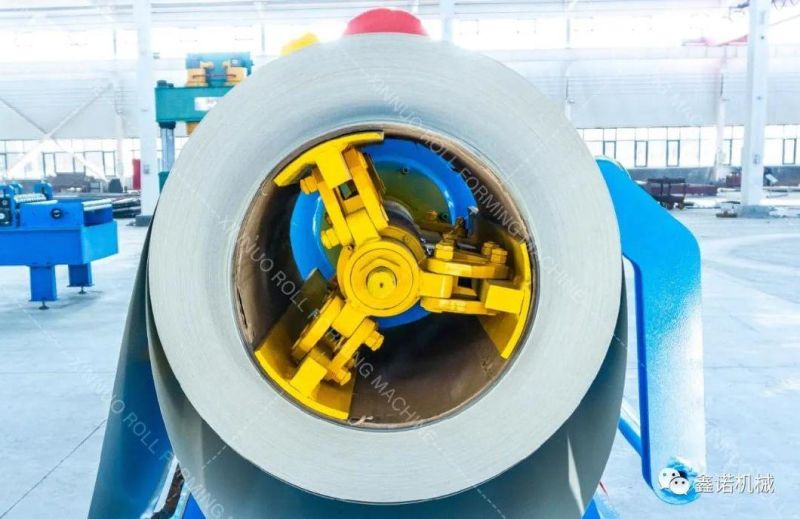

Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor, Glazed Tile Pressing Device ,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
This set of schemes are not only high value, but also the configuration is superior, and the whole process is automated.↓↓↓↓↓↓Click here to get in touch with us↓↓↓↓↓↓ ↓↓↓↓↓↓Click here to get in touch with us↓↓↓↓↓↓Company Profile
FAQ1:How to play order:
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can
pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4.What's the after- sale service:
we sent technician to your country to fix the machine.The buyer should bear all the cost including:
visa, round trip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
5.How about the warranty: 12 months limits warranty.
