Colored Steel Wall Roof Panel Cold Roll Forming Machine
Cangzhou Nexus Machinery Co., Ltd.- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof, Wall
- Transmission Method：Electric
Base Info
- Model NO.：NX1000
- Product Name：Colored Steel Wall Roof Panel Machine
- Raw Material：PPGI Sheet
- Thickness Range：0.3-0.8mm
- Machine Power：4kw+3kw
- Machine Weight：About 5 Tons
- Warranty：12 Months
- Afer-Sales Service：Engineer Is Availble to Overseas
- Speed：5-12m,Min
- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：5500mm*1500mm*1500mm(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：China
- HS Code：8455221000
- Production Capacity：30 Sets , Months
Description
Manual decoilerCapacity 5ton Feeding width MAX 1300mm Expanding range 460-520mm Main motor power 4kw Drive 1'' single chain Type: Wall board Main shaft dia ¢70mm material 45# forge steel and quenched Roller material 45# high grade forge steel ,chrome coated 0.05mm Roll station 16 groups Raw material 0.3-0.8mm Coil width 1000mm Working speed 10m--15m/min(Exclude cutting time) Length Tolerance ±1.5mm Weight of machine About 3 ton Size of machine About 5500×1800×1500mm L x W x H Color of machine Yellow and Blue Coder Omron, made in Japan Control PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client) Computer operating panel touching screen Other electrical element Schneider Cutting Hydraulic cutting. Auto cutting when reach the set length Hydraulic power 3KW Blade material Cr12mov,quenched 58°-62° Working pressure 16mpa Cutting tolerance +/- 1.0mm
4. Equipment list :

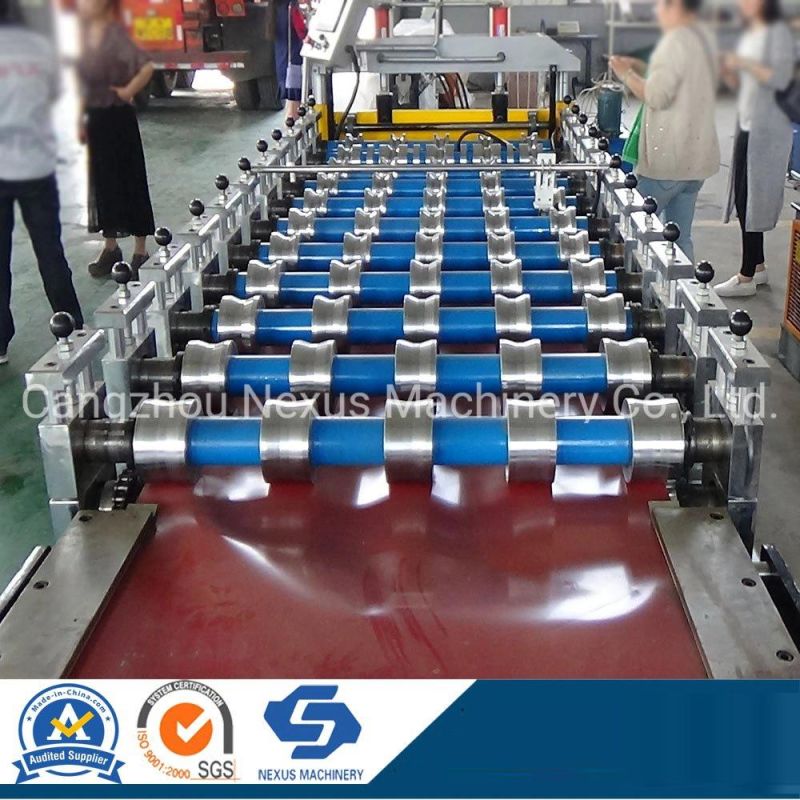

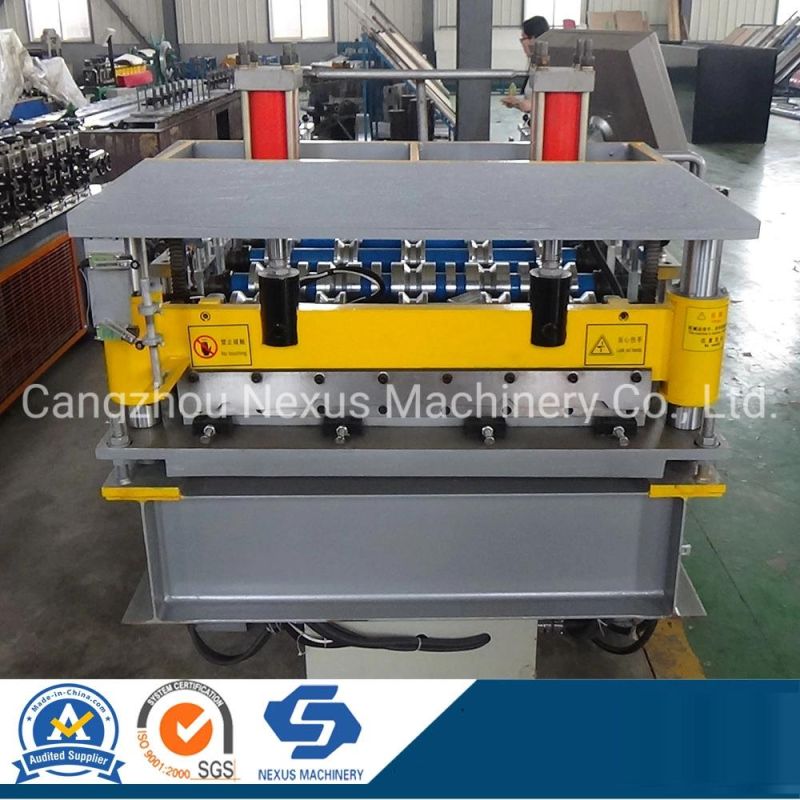

5. Photos ofColored Steel Wall Roof Panel Cold Roll Forming Machine for Reference:
ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
4. Equipment list :
| No. | Product Name | QTY |
| 1 | 5T Manual decoiler | 1 |
| 2 | Colored Steel Wall Roof Panel Cold Roll Forming Machine (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system) | 1 |
| 3 | Passive Output table | 2 |
| Sum | 4 |
