• Model NO.：QT4-20
• Capacity：400*200*200mm About 5760PCS Per Shift
• Mould Capacity：400*200*200mmmm Make 4 Pieces Per Mould
• Weight：Around 4000kgs
• Voltage：Customized Your Local Voltage
• Moulding Cycle：20 Seconds
• Warranty：1 Year
• Pressure：Hydraulic
• Brick Type：Hollow, Solid, Paver and So on
• Transport Package：40 Feet High Container
• Specification：7100*1600*2610mm
• Trademark：Shiyue
• Origin：Shandong Province, China
• HS Code：8474802000
• Production Capacity：2000 Sets Per Year

Basic Info.

Model NO. QT4-20 Capacity 400*200*200mm About 5760PCS Per Shift Mould Capacity 400*200*200mmmm Make 4 Pieces Per Mould Weight Around 4000kgs Voltage Customized Your Local Voltage Moulding Cycle 20 Seconds Warranty 1 Year Pressure Hydraulic Brick Type Hollow, Solid, Paver and So on Transport Package 40 Feet High Container Specification 7100*1600*2610mm Trademark Shiyue Origin Shandong Province, China HS Code 8474802000 Production Capacity 2000 Sets Per Year

Product Description

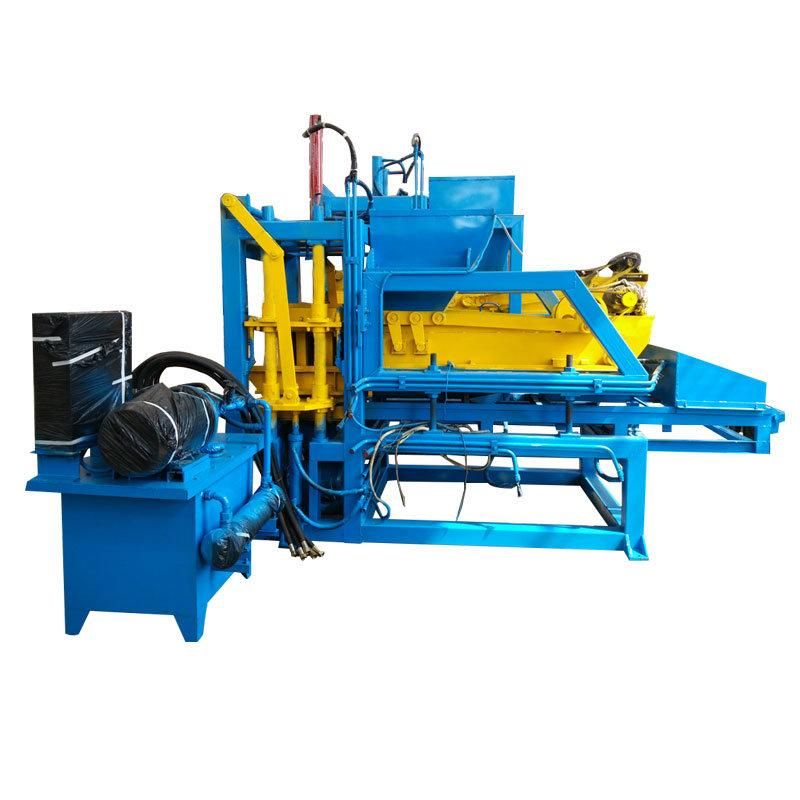

QT4-20 interlocking block making machine main parameters and advantage

1.Technology advanced:German advanced technology
2.High quality:the whole machine is adopted high quality steel,and precision welding,the hydraulic system use high-quality components,so it have a longer life and less fault during work.
3.Low investment,high efficiency:this machine have several function features,such as low price,reliable performance,easy to operated,stable,more efficient,high output,low power consumption.
4.Produce high quality bricks:the brick it produced have high density,high strength,accurate dimensional,good appearance,so it can reduce the customer's investment and production costs and give fast and large benefit.

Overall Dimension	7100*1600*2610mm
Rated Pressure	16MPa
Main Vibration Form	Platform Vibration
Vibration Frequency	4600( r/min)
Pallet Size	1020*570mm
Molding cycle	20s
Overall Power	27.5kw
Vibration Force	45KN
Total Mass	4T
Demolding method	Hydraulic
Factory Area	600m2

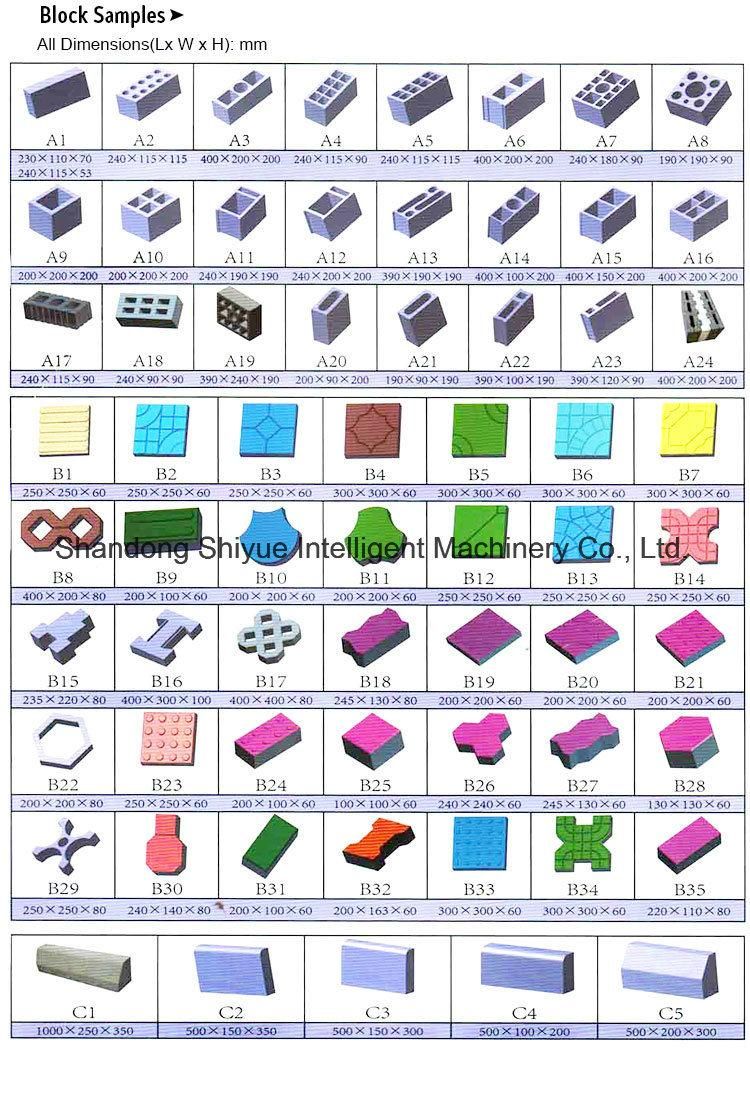

Applied Products	Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone, colored pavers ,etc.
Raw Material	Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw material etc.

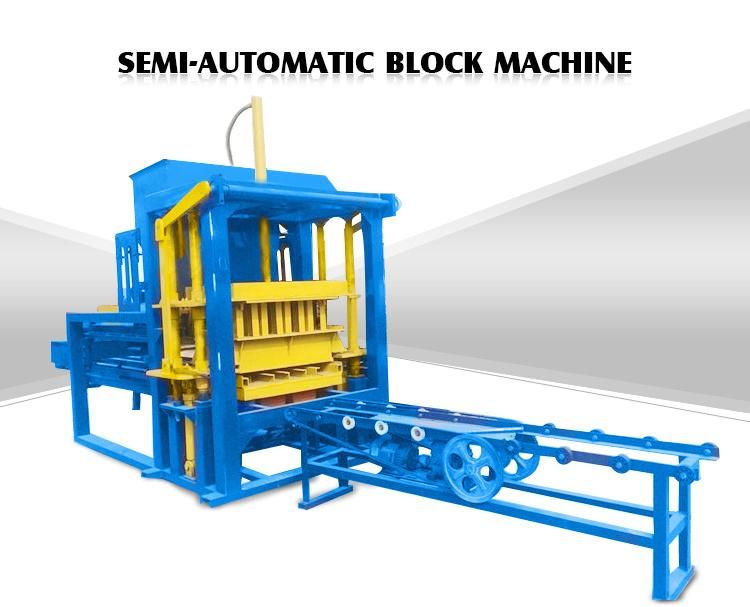

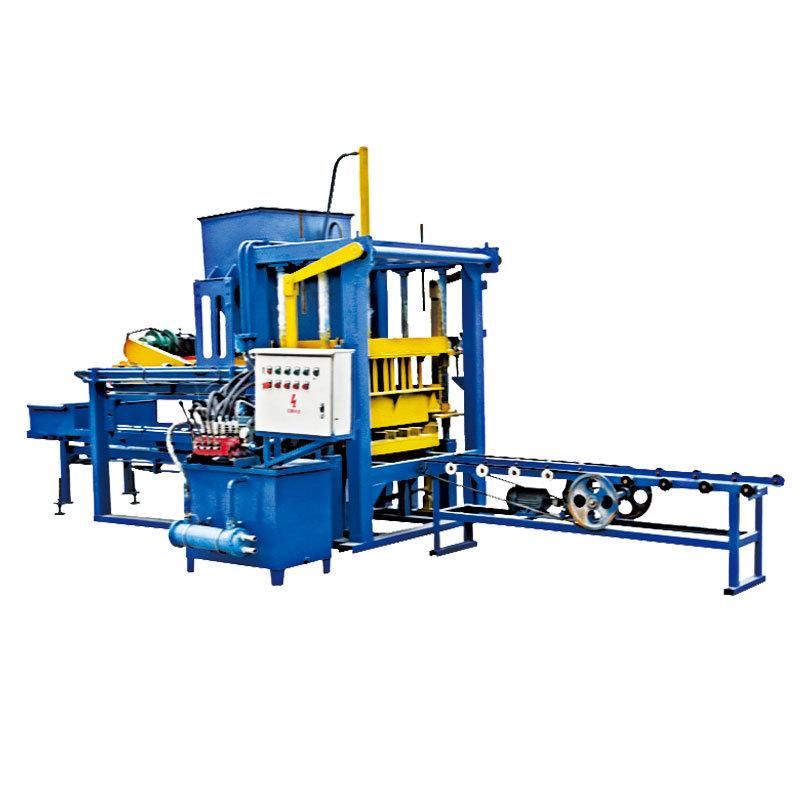

QT4-20 interlocking block making machine show

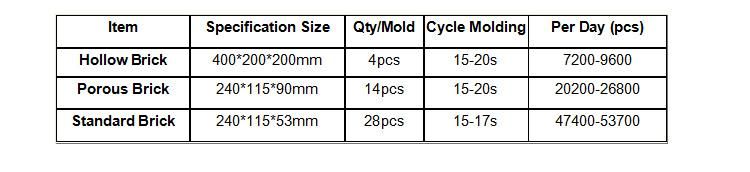

common brick capacity




FAQ
1> Is this block machine suitable for us to use?
Answer: if you want to make common bricks and Medium capacity, this model is suitable for you, if no, please tell us what kind of bricks do you want to make? or what capacity do you prefer?Then the most suitable model can be recommended to you.
2>Which industry did this block machine usually be used in?
Answer: Interlocking bricks, Paving bricks,Solid bricks,etc
3>How to use the block machine?
Answer: We will send the operating manual to you after you purchase the machine, for bigger machine, we can offer engineer fly to your side for installation and training your workers.
4>How about the after sale service of block machine?
Answer: 1 year guarantee for the whole machine (without the spare parts),good machine no need after sale service,we keep the superior quality machine for you.
5>what's your payment term
our common payment is 30% deposit by T/T before arrange the machine production,70% balance before the delivery,if other payment term,we can negotiation.
