• Voltage：380V
• Product Name：Vertical Insulating Double Glazed Hollow Glass Was
• Input Power：23kw
• Air Pressure：0.5-0.8MPa
• Max. Processing Glass Size：2000X2500mm
• Min. Processing Glass Size：280*450mm
• Working Direction：Right to Left or Left to Right
• Pane Glass Thickness：3-18mm
• Machine Dimension：18900X2100X3200mm
• Weight：4500kg
• Application：Double Glazing Glass Machine
• Usage：Insulting Glass Production
• Washing Speed：0-8m,Min
• Package：Wooden Cases
• Function：Double Glazing Glass Production
• Transport Package：Standard Wooden Box Package
• Specification：JYW-2000
• Trademark：Truepro
• Origin：China
• HS Code：8479819000
• Production Capacity：200 Sets,Year

ModelJYW-2000Power Supply380V 50HzPower23.0KWWork Pressure0.5-0.8MPaMax glass size2000x2500mmMin glass size280x450mmPane glass thcikness3-18mmTransfer speed8-45m/minTotal weight4500kgBoundary dimension18500x2100x3200mm


Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

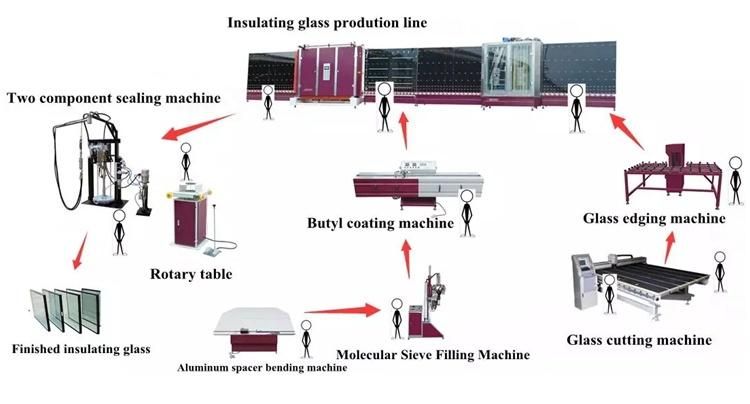

4. Insulating glass production line
