• Model NO.：QT5-15
• Hour Capacity：900-1200PCS,H(400*200*200)
• Pallet Size：1100*550mm
• Color：Client Requirement
• Vibration Frequency：4600r,Min
• Block Type：Hollow, Solid, Paver Blocks, Curbstone
• Molding Cycle：15-20s
• Rated Pressure：16MPa
• Power：26.5kw
• Transport Package：Nude Package
• Specification：7400*1950*2800 mm
• Trademark：SHIYUE
• Origin：China, Shandong
• HS Code：8474802000
• Production Capacity：5000 Sets

overall demension:

7400*1950*2800 mm

rated pressure:

21Mpa

main vibration form:

platform vibration

vibration frequency

2800-4500( r/min)

pallet size

1100*550mm

molding cycle:

15-25s

overall power

26.5KW

Mixer model

JS500

Pictures

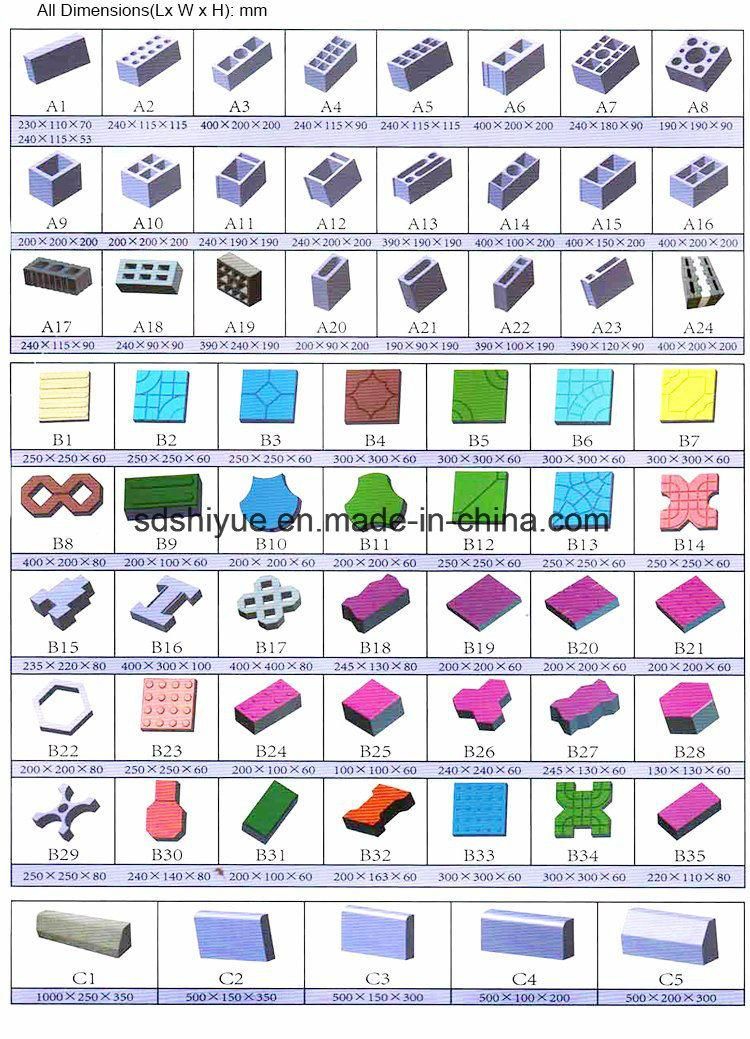

Size(L*W*H) (mm)

Pcs/mould

Pcs/mould

Pcs/8h

240x115x90

16

2880-3600

23040-28800

400x115x53

32

7680-8800

61440-70400

400x200x200

5

900-1200

7200-9600

1. The whole brick machine production line equipment is mainly the full container sea shipping,

2. Brick machine equipments finish manufacturing and testing, next to clean up, and then do another paint protection,

3. Before shipment to use plastic film winding, wrapped the entire brick machine in case of water or moisture,

4. Then load brick machines into the container by forklift,

5. During loading to tighten the machine with reinforcement ring in container, so as to avoid the damage by transport bumps on the brick machine.

Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of build factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material,
capacity and the size of brick)
(3) Welcome to visit our factory and production line anytime

Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time

After-sale:
(1) The engineer will guide to carry out the plant at the clients side.
(2) Set up, fix,and operate
(3) Will not stop training the operator until they are satisfied at clients side.
(4) 24 hours service
(5) Recall clients regularly ,get feedback in time,keep well communication with each other.

Our factory
Shiyue Machinery is located in Linyi,Shandong. With advanced technologies and rich experiences on manufacture. We have specialized in stationary block machine,mobile block machine, clay block machine, crusher,pipe making machine, pole making machine,concrete mixing plant etc.After 27-year's effort,we have receive good reputation from many countries such as India, the United States, Russia, the United Kingdom, the Philippines, Canada, Australia, South Africa, Pakistan, Brazil, Malaysia, Sri Lanka, Mexico, Nigeria, Kenya etc.What's more,our machines have won'Product patent award',and 'product innovation award' and so on.Shiyue machinery your best choice for your business
FAQ

1.Question:Does the machine could change mold?
Answer:Yes,this machine could change different kinds of mold.The machine could produce interlock, paver size depending on your local requirements.
2.Question:What is the electric voltage and rate?
Answer:Our local electric voltage is 380v, 3phase, 50hertz, the electricl voltage can be revised according to local situation.
3.Question:How about the service life of this machine?
Answer:This machine could work for about 6-10 years if your side maintain well.
4.Question:What's your machine warrenty?
Answer:12 months guarantee,we send more spare parts for you when shipping machine to you.
5.Question: The mode of transportation.
 Answer: by sea, by land or by rail according to customer local need
