Cy2-25 Eco Brick Making Machine Earth Soil Brick Making Machine Price Brick Moulder
Linyi Chuangyun Import & Export Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Semiautomatic
- Type：Hydroforming
- Method：Hydraulic Pressure
- Color：According to Your Need
Base Info
- Model NO.：CY2-25
- Moulding Cycle：20-30s
- Power：4kw
- Products：Soil Interlocking Bricks
- Transport Package：Plywood Box with Iron Angle Frame
- Origin：China
- HS Code：8474802000
- Production Capacity：30sets , Month
Description
Basic Info.
Model NO. CY2-25 Moulding Cycle 20-30s Power 4kw Products Soil Interlocking Bricks Transport Package Plywood Box with Iron Angle Frame Origin China HS Code 8474802000 Production Capacity 30sets / MonthProduct Description

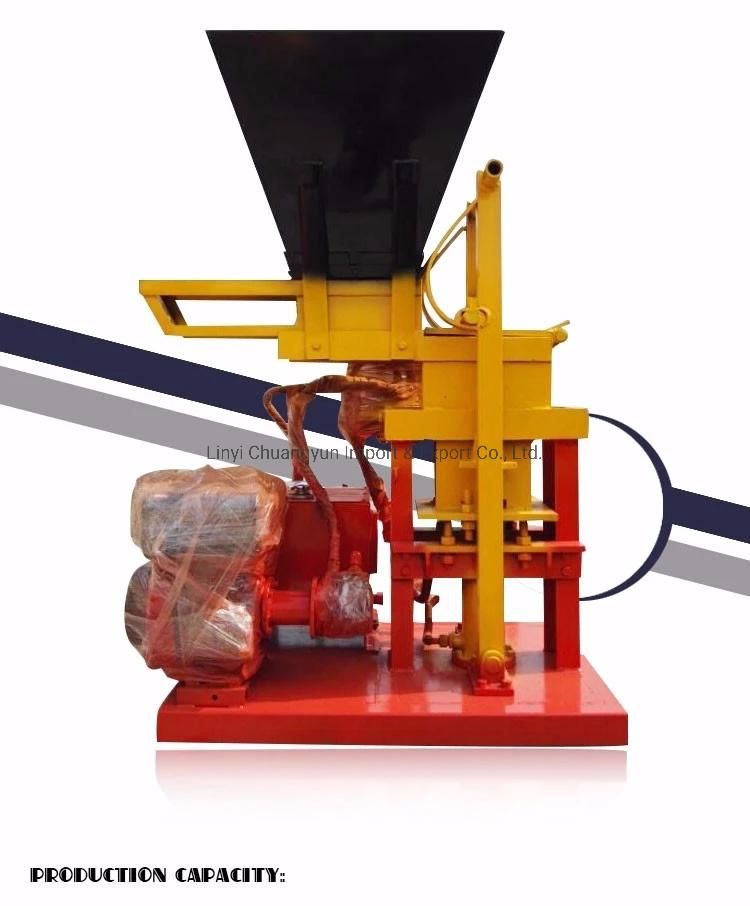

CY2-25 Eco Brava Clay Interlocking Brick Making Machine
Features:

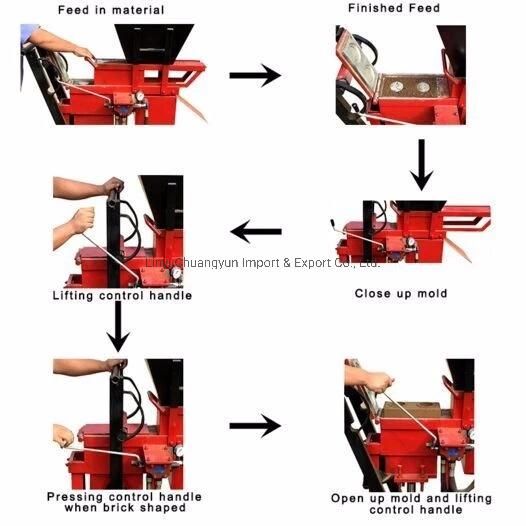

1. ECO BRAVA clay block machine is our newest clay and cement brick making machine. It is manual operation machine, but only need 1 people.

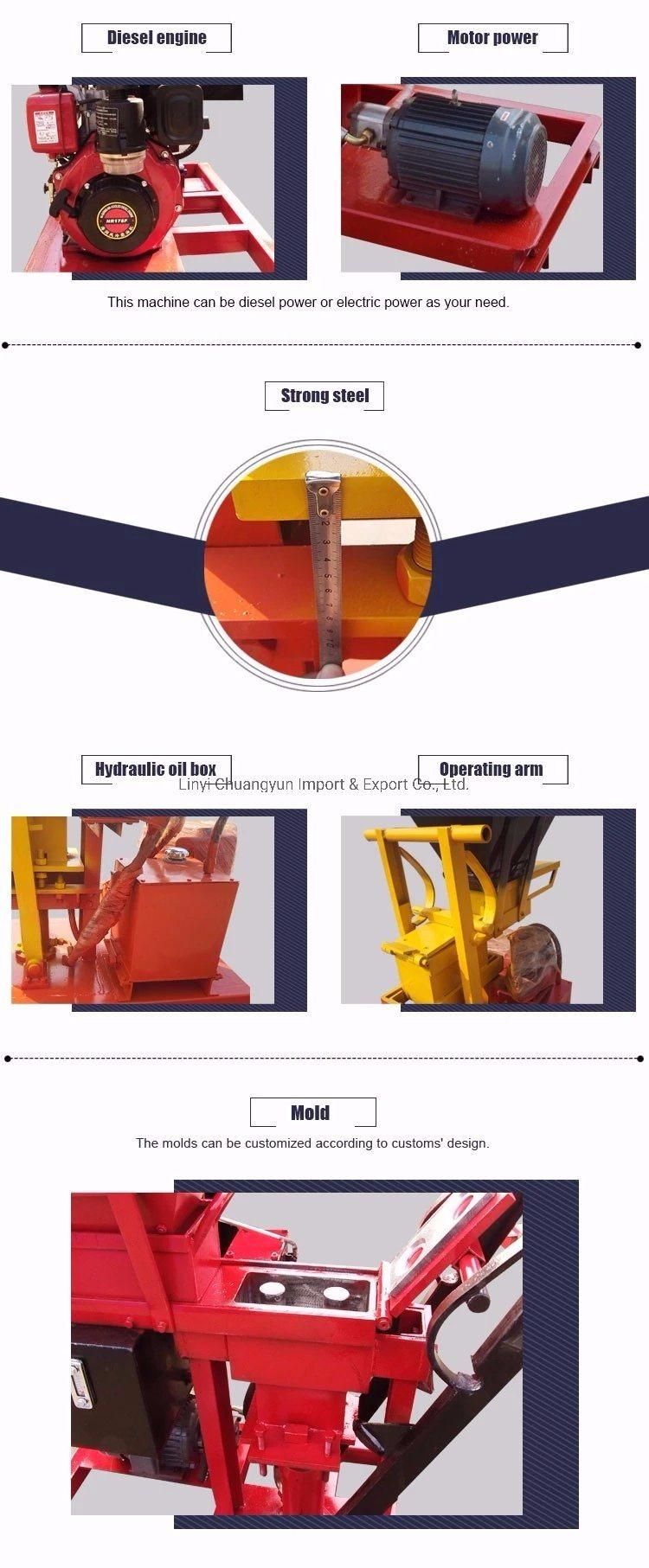

2. You can choose diesel engine or electric motor. This machine enable to produce varied models of blocks, bricks and floors in only one equipment, without the need of buying another machine.
3. Manufactured with precision in a Machining Center, its interior receives a thermal treatment and is rectified. Compound by modeler wombs interchangeable enabling flexible of different forms and models for the pressed blocks, bricks and floors.
Technical specifications:
| Machine power | Electric or diesel engine |
| Molding cycle | 20s |
| Capacity | 1400pcs/8hours |

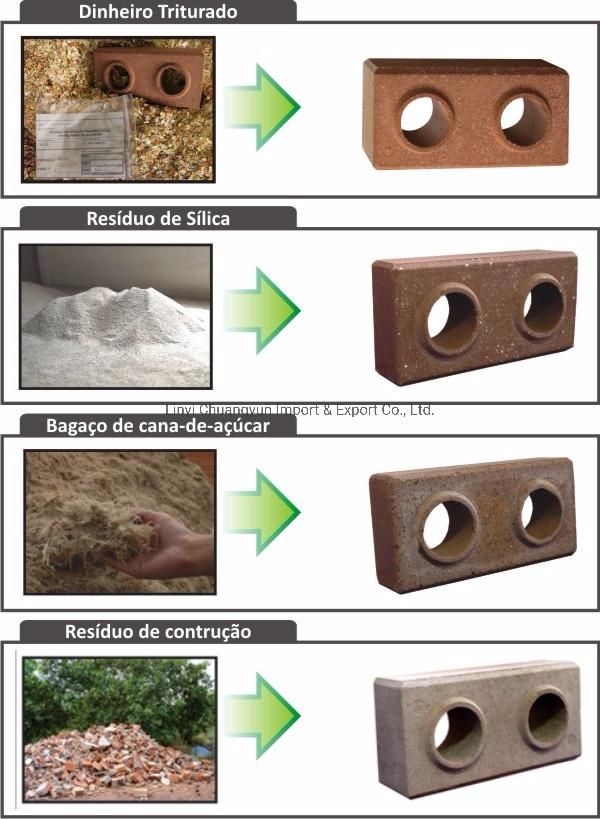

| Raw material | clay,soil,earth,mud,concrete, sand,cement, fly ash,etc. |
| Machine weight | 500KGS |
| Overall size | 1200*800*1750mm |
| Worker | 1 people |
| Hydraulic pressure | 16 Mpa |
Production capacity
| No. | Block size | Pcs/mould | Pcs/hour | Daily capacity |
| 1 | 300*150*100mm or 250*125*75mm | 1 | 180-200 | 1400-1500 |
Applied fields: It is widely used in buildings, road paving, squares, gardens, landscaping, city constructions etc.
