• Model NO.：QT6-15
• Cycle：15-20s
• Vibration Force：60-80kn
• Rated Pressure：21MPa
• Weight：5500kgs
• Pallte Size：960*700*25mm
• Water Consumption：5-10t
• Voltage：380V
• Worker：6-8workers
• Transport Package：Container
• Specification：5200*2050*2650mm
• Trademark：XINMING
• Origin：Shandong. China
• HS Code：8474802000
• Production Capacity：500PCS,Year

Advantage
 1. Control System: Electric control system consists of imported color touch screen and programmed PLC with data input and output device, including safety logical control and trouble shooting system. Vibration analyzing system: detecting the vibration frequency, vibration amplitude, vibration acceleration and noise of the whole machine, so as to adjust the vibration to optimum efficiency.
 2. Hydraulic System:The system consists of imported components and seals with high dynamic performance proportional valves. The action of key cylinders can be operated through the regulator of flow and pressure according to the working requirement.The main frame is wide for the convenience of mold filling, so more blocks can be made. In order to get even pressure, three oil reservoirs are used, which raise the pressure to as high as 100t. Moreover, the smallest reservoir in the middle increases the operating speed of the left and right ones respectively, thus improving the productivity.
 3.Vibration System :Frequency conversion motor drive the vibrating case, easy to obtain ideal vibration force, vibration frequency and amplitude, can produce high quality block. Unique double-vibration box drives all in one vibration table to make the deviation of amplitude lower, more even so as to guarantee the consistency firm and durable.

 Major ComponentPallet size:960*700*25mm
Many kinds of pallet can be used for brick/block machine.
1. fiberglass pallet
2. bamboo pallet

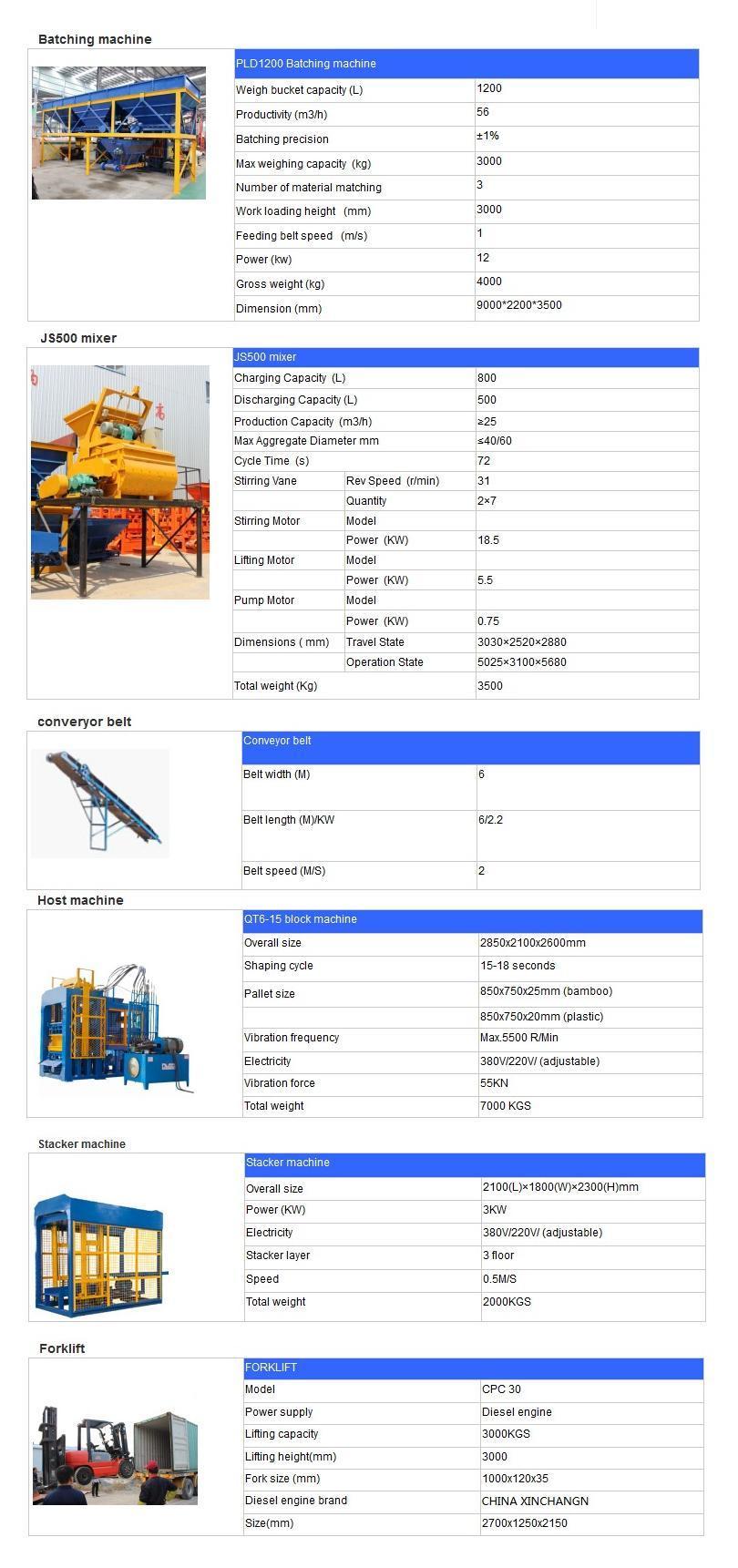

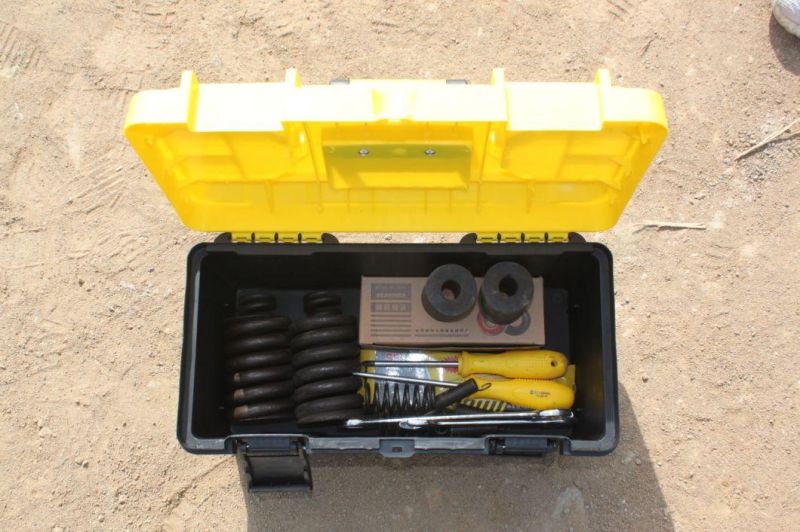

3. PVC palletTOOLS:we offer these tools for free.We can also give you the videos and instruction about insallation and operation and you can give us video call when the machine faults you can't handle it .We are responsible for all the repairs that caused by our quality problems within two year's warranty.We will make every effort to solve your problems Technical  SpecificationPower38.7KWCycle 15-20SVibration Force60-80KNRated Pressure21MPaPallet Size960*700*25mmMachine Size 5200*2050*2650Weight5500KGSRelated Accessories100T silo,PLD1200 Batching,JS500 Mixer
Forklift,2000Pcs Pallet
  Production Capacity
