UPVC and Aluminum Window Door Digital Display Cutting Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Model：Ljz2-500*4200
  • Input Voltage：380V 50Hz
  • Input Power：4.5kw
  • Air Pressure：0.5~0.8MPa
  • Air Consumption：200L,Min
  • Cutting Length：360~5000mm

Base Info

  • Model NO.：Ljz2-500*4200
  • Cutting Height：10-300mm
  • Cutting Width：10-130mm
  • Cutting Angle：90°45°67.5°
  • Saw Feeding Speed：0~3m,Min
  • Saw Blade Standard：500*4.4-30*Z120
  • Overall Dimension：5500*1700*1600mm
  • Transport Package：Wooden Box
  • Specification：5500*1700*1600mm
  • Trademark：YueFeng
  • Origin：China
  • HS Code：8477800000
  • Production Capacity：40 Window Per Day

Description

Basic Info.

Model NO. Ljz2-500*4200 Cutting Height 10-300mm Cutting Width 10-130mm Cutting Angle 90°45°67.5° Saw Feeding Speed 0~3m/Min Saw Blade Standard 500*4.4-30*Z120 Overall Dimension 5500*1700*1600mm Transport Package Wooden Box Specification 5500*1700*1600mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Window Per Day

Product Description

UPVC and Aluminum Window Door digital display cutting Machine


UPVC and Aluminum Window Door Digital Display Cutting Machine

UPVC and Aluminum Window Door Digital Display Cutting Machine

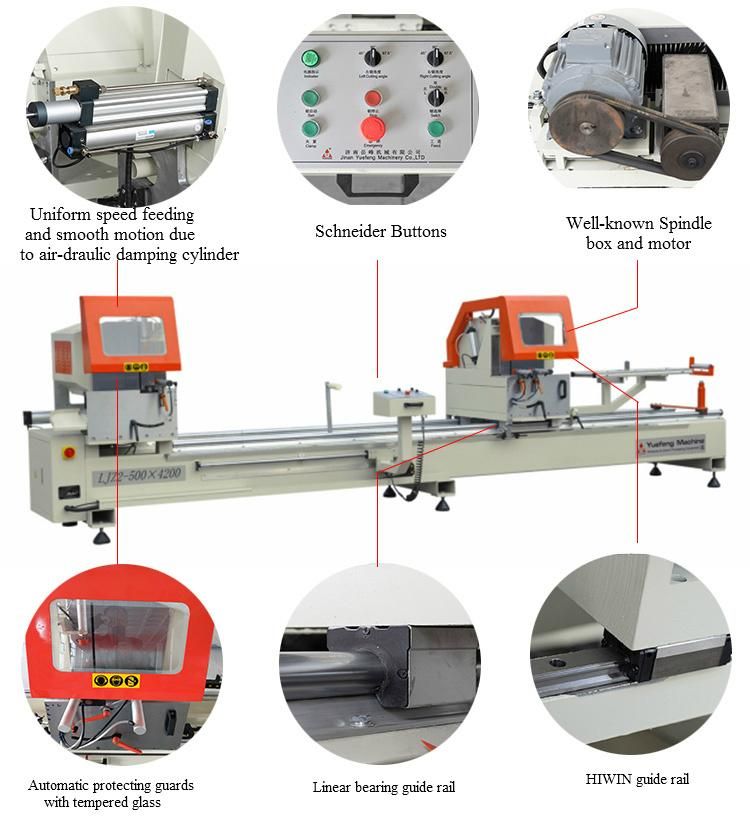

1.Two heads work independently or together.
2.Uniform speed feeding and smooth motion due to air-draulic damping cylinder.
3.Saw blade feeding system adopts imported linear guide pair, with high accuracy and smooth working.
4.Automatic protecting guards result convenience and safety.

Technical Parameter:
ModelLJZ2-500×4200
Input voltage380V 50Hz
Input power4.5Kw
Air pressure0.5~0.8MPa
Air consumption200L/min
Spindle speed3200r/min
Cutting length360~4200mm
Cutting width10~130mm
Cutting height10~300mm
Cutting angle90° 45° 67.5°
Saw feeding speed0~3m/min
Saw blade standardφ500×4.4×φ30×Z120
Overall dimension5500×1700×1600mm


 UPVC and Aluminum Window Door Digital Display Cutting Machine
UPVC and Aluminum Window Door Digital Display Cutting Machine
UPVC and Aluminum Window Door Digital Display Cutting Machine
UPVC and Aluminum Window Door Digital Display Cutting MachineUPVC and Aluminum Window Door Digital Display Cutting MachineFAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
