• Model NO.：NX1000
• Product Name：Roll Sheet Tile Making Forming Roofing Machine
• Raw Material：PPGI Sheet
• Feeding Width：1000mm,1219mm
• Thickness Range：0.3-0.8mm
• Machine Power：5.5kw+3kw
• Forming Speed：10-15m,Min
• Roller Station：16-22 Groups
• Operation Type：Touching Screen PLC
• Machine Weight：About 5 Tons
• Warranty：12 Months
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：6500mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：Hebei, China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

Basic Info.

Model NO. NX1000 Product Name Roll Sheet Tile Making Forming Roofing Machine Raw Material PPGI Sheet Feeding Width 1000mm/1219mm Thickness Range 0.3-0.8mm Machine Power 5.5kw+3kw Forming Speed 10-15m/Min Roller Station 16-22 Groups Operation Type Touching Screen PLC Machine Weight About 5 Tons Warranty 12 Months Transport Package Plastic Film & Steel Wire Fixed Specification 6500mm*1500mm*1500mm(L*W*H) Trademark NEXUS MACHINERY Origin Hebei, China HS Code 8455221000 Production Capacity 30 Sets / Months

Product Description

China Products Corrugated Aluminium Zinc Roll Sheet Tile Making Forming Roofing Machine

he plate produced by these series machine is a perforated type with screw lockup. Its feature is low convenient for mounting, and therefore extensively applied in factory buildings of steel structure, warehouse, and public use buildings etc. It is a commonly used wall panel.


1. Processing flow diagram of machine:

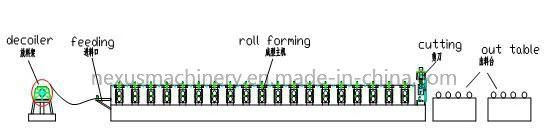

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table

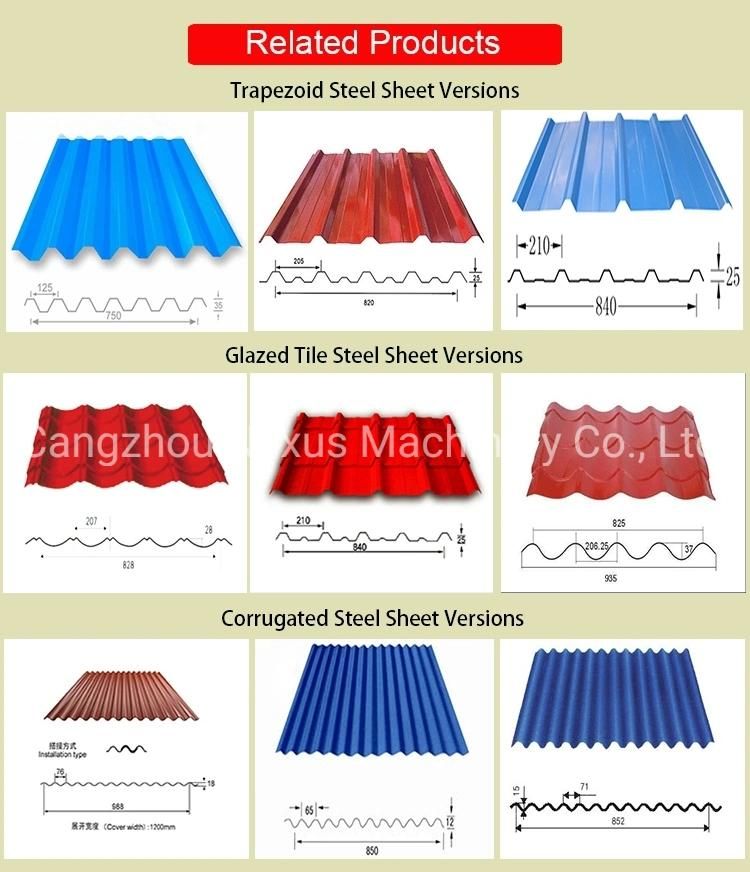

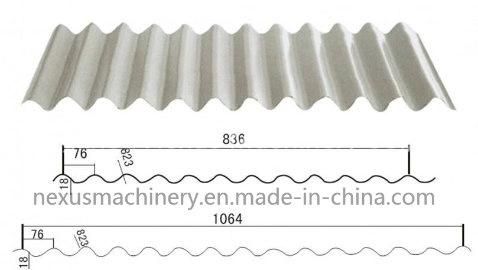

2. Profile Drawings for Reference:




3. Technical parametersChina Products Corrugated Aluminium Zinc Roll Sheet Tile Making Forming Roofing Machine  for :



1	Suitable to process	Color steel plate
2	Width of the plate	1000mm
3	Thickness of the plate	0.3-0.8mm
4	De-coiler	Manual one, can load 5 tons raw material
5	Rollers for forming	14 rows
6	Diameter of the roller	80mm
7	Rolling material	Carbon Steel 45#
8	Main motor power	4kw
9	Productivity	8-12m/min
10	Cutting method	Hydraulic mould cutting
11	Material of the cutting blade	Cr12
12	Hydraulic cutting power	3kw
13	Processing precision	Within 1.00mm
14	Control system	Delta PLC control
15	Side panel of machine	14mm
16	Main structure of the machine	300 H steel
17	Weight	About 4.6T
18	Dimensions	7.5*1.6*1.2m
19	Voltage	380V 50Hz 3phases(changeable as needs)
20	Certificate	CE/ISO

4. Equipment list :


No.	Product Name	QTY
1	5T Manual decoiler	1
2	China Products Corrugated Aluminium Zinc Roll Sheet Tile Making Forming Roofing Machine   (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

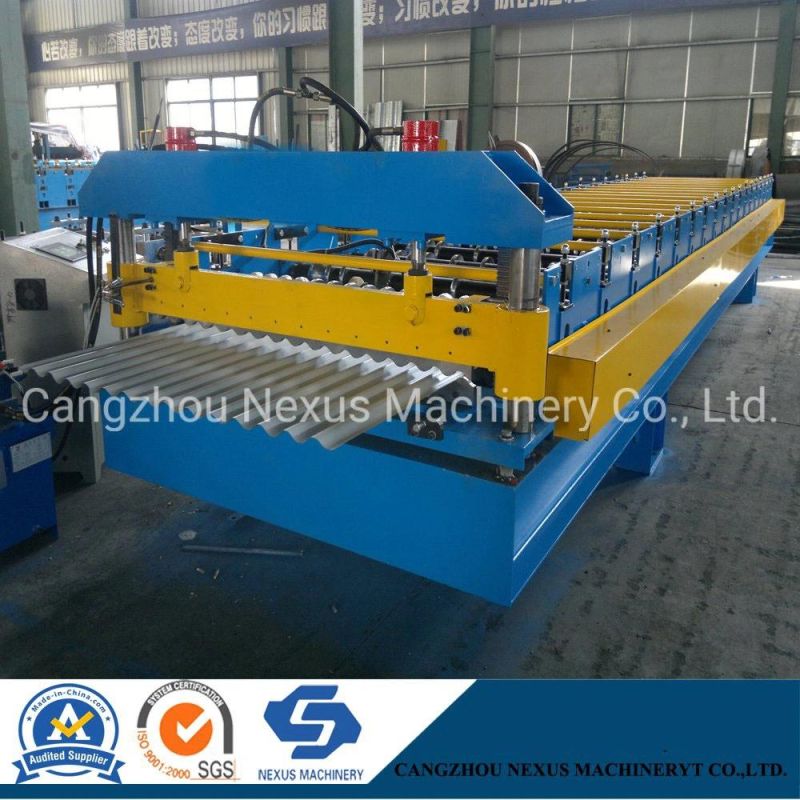

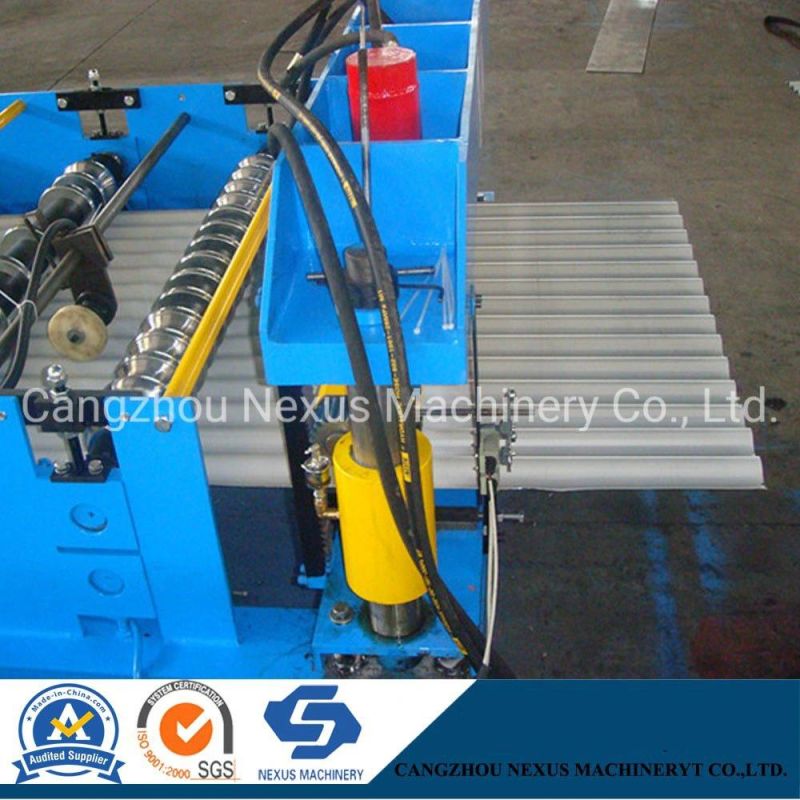

 Photos of China Products Corrugated Aluminium Zinc Roll Sheet Tile Making Forming Roofing Machine  for Reference:







More Photos for your choose:
