Auto UPVC Window Automatic PVC Window Water Slot Milling Machine 3 Axis
Shandong Truetec Machinery Co., Ltd.- Condition：New
- Certification：CE
- Automatic Grade：Automatic
- CNC or Not：not CNC
- Voltage：380V
- Product Name：Water Slot Milling PVC Windows and Doors Machine
Base Info
- Function：Milling All Kinds of Water Slots
- Input Power：1.14kw
- Air Pressure：0.5~0.8MPa
- Air Consumption：30L,Min
- Main-Shaft Revolution：25000r,Min
- Cutter Diameter：Degree5 ,4mm
- Slot Length：0-60mm
- Color：Gray
- Usage：Used for Processing PVC Window and Door
- Keywords：Water Slot Milling Machine
- Transport Package：1. Simple Stretch Film Packaging; 2. Professional
- Specification：1200*1200*1800mm
- Trademark：TRUEPRO
- Origin：China
- Production Capacity：300set,Year
Description
Basic Info.
Function Milling All Kinds of Water Slots Input Power 1.14kw Air Pressure 0.5~0.8MPa Air Consumption 30L/Min Main-Shaft Revolution 25000r/Min Cutter Diameter Degree5 /4mm Slot Length 0-60mm Color Gray Usage Used for Processing PVC Window and Door Keywords Water Slot Milling Machine Transport Package 1. Simple Stretch Film Packaging; 2. Professional Specification 1200*1200*1800mm Trademark TRUEPRO Origin China Production Capacity 300set/YearProduct Description

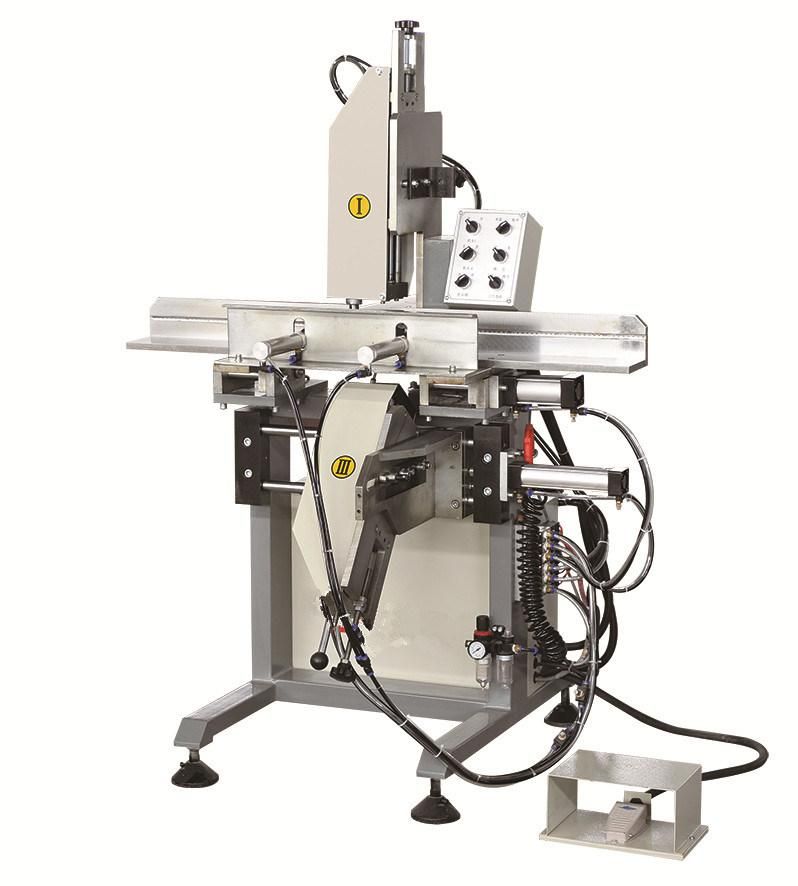

Auto UPVC Window Automatic PVC Window Water Slot Milling Machine 3 Axis
Main Feature:
- Milling all kinds of water slots and air pressure balance groove
- Full design with high rigidity, processing beautiful water slot, high appearance quality.
- Special feeling system, need no special maintenance, high milling quality.
Main Technical Parameter:
| Model | CLXCA-60 |
| Power supply | 220V 50Hz |
| Input power | 1.14KW |
| Air pressure | 0.5-0.8Mpa |
| Air consumption | 30L/min |
| Spindle rotary speed | 25000r/min |
| Slot length | 0-60mm |
| Overall dimension | 1200*1200*1800mm |
| Weight | 300kg |
