Horizontal Center Drill Machine for Window and Door Making Lztz120

Shandong Zunbo CNC Equipment Co., Ltd.
  • After-sales Service：Lifetime Maintenance
  • Warranty：1 Year
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Automatic
  • CNC or Not：CNC

Base Info

  • Model NO.：LZTZ120
  • Voltage：380V
  • Numerical Control：CNC,Mnc
  • Performance Classification：MID-Range CNC Machine Tools
  • Application：Window
  • Specification：4650x950x1370mm
  • Trademark：Zunbo
  • Origin：China

Description

Basic Info.

Model NO. LZTZ120 Voltage 380V Numerical Control CNC/Mnc Performance Classification MID-Range CNC Machine Tools Application Window Specification 4650x950x1370mm Trademark Zunbo Origin China

Product Description

Product Description:

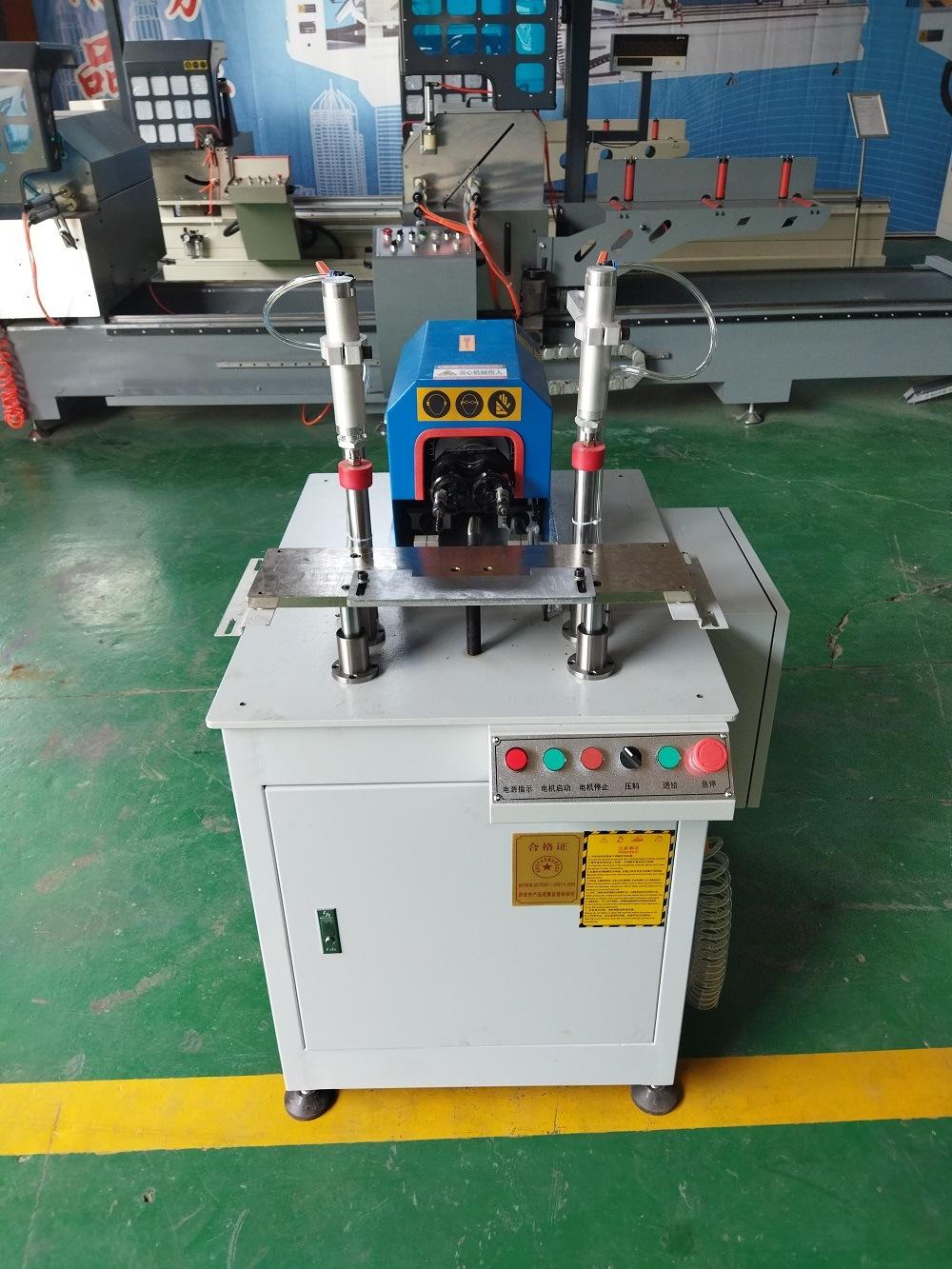

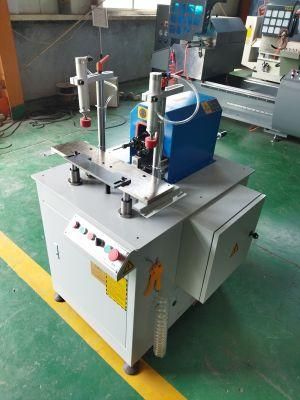

Horizontal center drill machine
This machine specializes in processing aluminum-plastic profile middle stile connecting holes, with a wide processing range, large adjustable distance, and quick length setting. It is an efficient processing equipment for middle stile materials and connecting holes.


Technical Parameter:

Model: LZTZ120
Voltage: 50Hz/380V
Power: 1.5kW
Adjusting range of drill bit spacing: 19-90mm
Drilling angle: 0-360°
Length of support frame: 2000mm
The maximum distance between the center of the stile: 2250mm
Longest profile center distance: 4500mm
Dimensions: 4650x950x1370mm
