• Model NO.：LJB2B-CNC-5000
• Voltage：380V
• Input Power：6.8kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：200L,Min
• Spindle Speed：3200r,Min
• Cutting Length：380~5000mm
• Cutting Width：10~135mm
• Cutting Height：10~230mm
• Cutting Angle：45~157.5 Degree
• Saw Feeding Speed：0~3m,Min
• Saw Blade Standard：500X4.4X30xz120
• Overall Dimension：7000X1800X1800mm
• Transport Package：Plastic Cover or Wooden Cases
• Trademark：YUEFENG
• Origin：Jinan, Shandong, China
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. LJB2B-CNC-5000 Voltage 380V Input Power 6.8kw Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Spindle Speed 3200r/Min Cutting Length 380~5000mm Cutting Width 10~135mm Cutting Height 10~230mm Cutting Angle 45~157.5 Degree Saw Feeding Speed 0~3m/Min Saw Blade Standard 500X4.4X30xz120 Overall Dimension 7000X1800X1800mm Transport Package Plastic Cover or Wooden Cases Trademark YUEFENG Origin Jinan, Shandong, China Production Capacity 100 Sets Per Month

Product Description

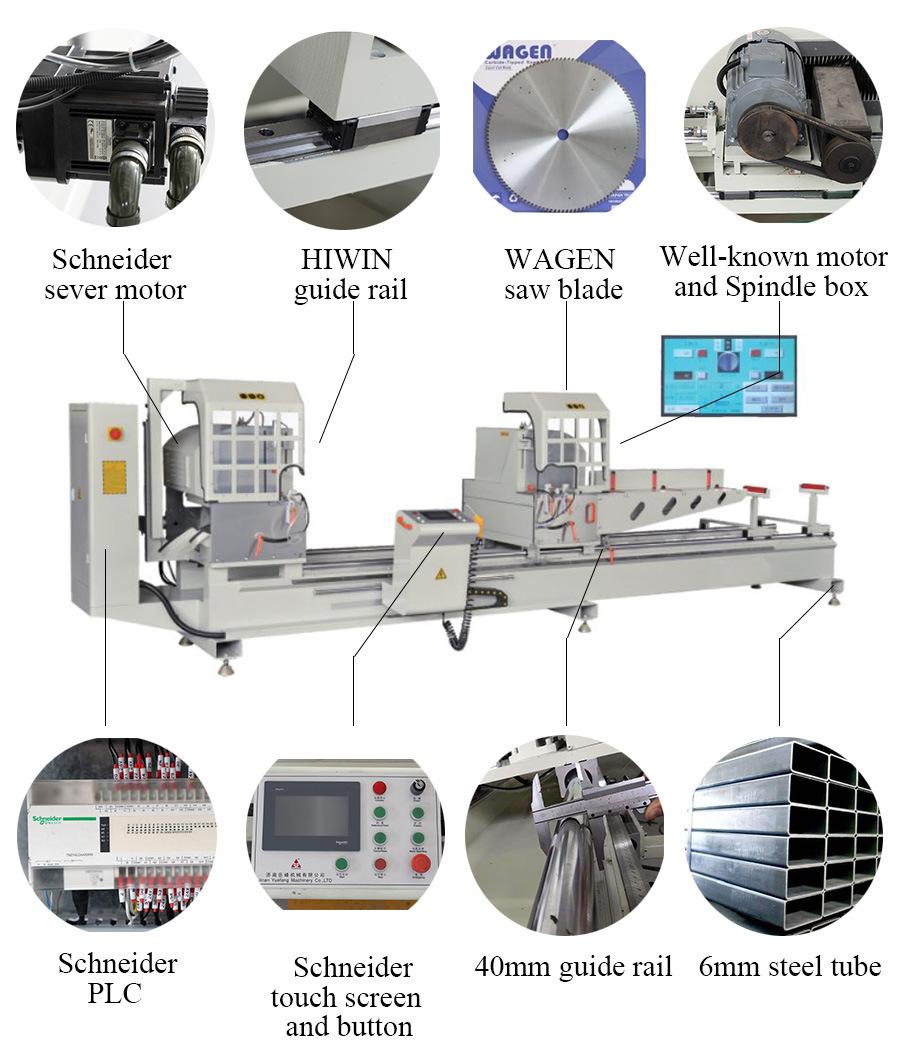

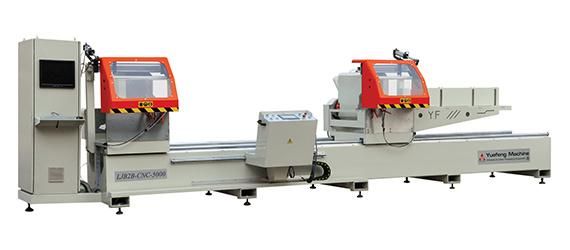

Aluminum CNC double head cutting machine for curtain wall profile
Mainly used for profiles cutting, such as aluminum, PVC and curtain wall profiles.
Saw blades be installed on the motor directly, with the lever swing mode for cutting.
The high accuracy imported saw blades result high accuracy cutting.
The speed reducer be driven by Imported servo motor, results any angle could be cut between 45°~157.5°
The Imported control system could optimize the profile cutting.
Several profiles size could be input in once, so the cuttings could be finished continuous.
Input the cutting datas you need directly, do not need back to reference point first when changing the cutting length.
The ball screw be driven by imported servo motor drives the saw head, results high speed and high accuracy for repeat locating.
With bar code printer, result a digital production.



Technical Parameter:

Model	LJB2B-CNC-5000
Input voltage	380V 50Hz
Input power	6.8Kw
Air pressure	0.5~0.8MPa
Air consumption	200L/min
Spindle speed	3200r/min
Cutting length	380~5000mm
Cutting width	10~135mm
Cutting height	10~230mm
Cutting angle	45°~ 57.5°
Saw feeding speed	0~3m/min
Saw blade standard	φ500×4.4×φ30×Z120
Overall dimension	7000×1800×1800mm

RFQ:

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
