• Voltage：380V
• Input Power：1.5kw
• Motor Speed：1400r,Min
• Operating Pressure：0.6-0.8MPa
• Air Consumption：3L,Min
• Rated Pressure：15MPa
• Extrusion Pressure：48kn
• Motion Stroke of Angle Cylinder：85mm
• Weight：340kgs
• Transport Package：Wooden Case
• Specification：1000x1200x1200mm
• Trademark：SETH
• Origin：Shanong China

Basic Info.

Voltage 380V Input Power 1.5kw Motor Speed 1400r/Min Operating Pressure 0.6-0.8MPa Air Consumption 3L/Min Rated Pressure 15MPa Extrusion Pressure 48kn Motion Stroke of Angle Cylinder 85mm Weight 340kgs Transport Package Wooden Case Specification 1000x1200x1200mm Trademark SETH Origin Shanong China

Product Description

Jinan SETH Intellighent Equipment Co.,Ltd.

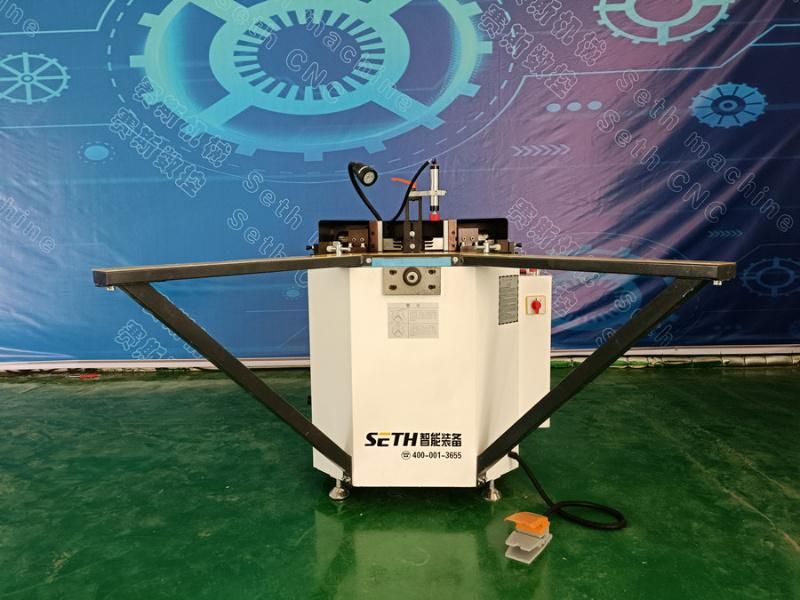

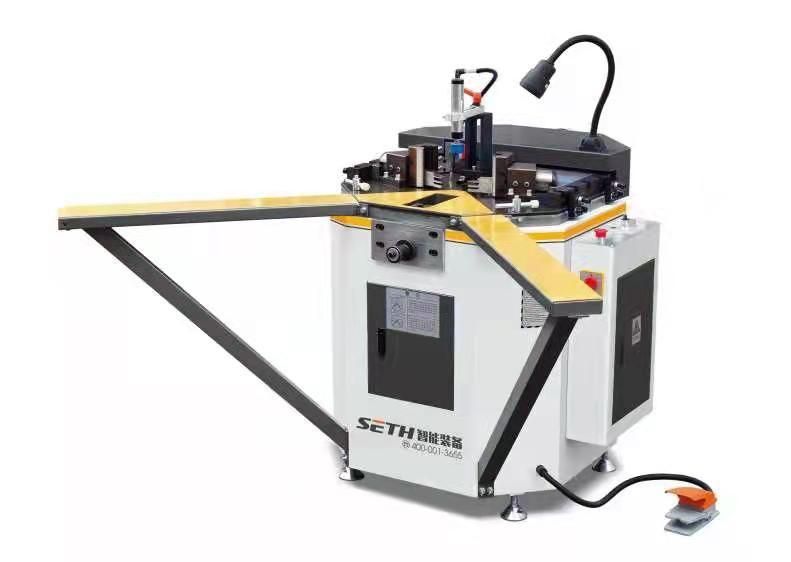

 LMB-120 model Hydraulic-pressure Synchronize Corner Combining Machine

1.Product Feature:
1. It is suitable for angle-code punching and riveting connection
  of aluminum doors and windows. The power is controlled by
 hydraulic system, and the work is stable and reliable.
2. The left punch and the right punch are driven by a hydraulic
 cylinder through a mechanical linkage mechanism, thus realizing
 the synchronous feeding of the working rigidity of the two
 punches, avoiding the useless deformation in the corner assembly
 process and making the window corner connection firmer.
3. Convenient operation, small joint error and good effect of
  making doors and windows.
4.Threaded connection adjusts the distance between the front and
 ear corner cutters, which makes it more convenient to set the   cutters.
5.LED work lights are set on the countertop, which makes the
 operation more accurate, practical and convenient,
and reduces the rejection rate.
6.Major electrical components adopt well-known brands to ensure the
 reliability of the electrical system.

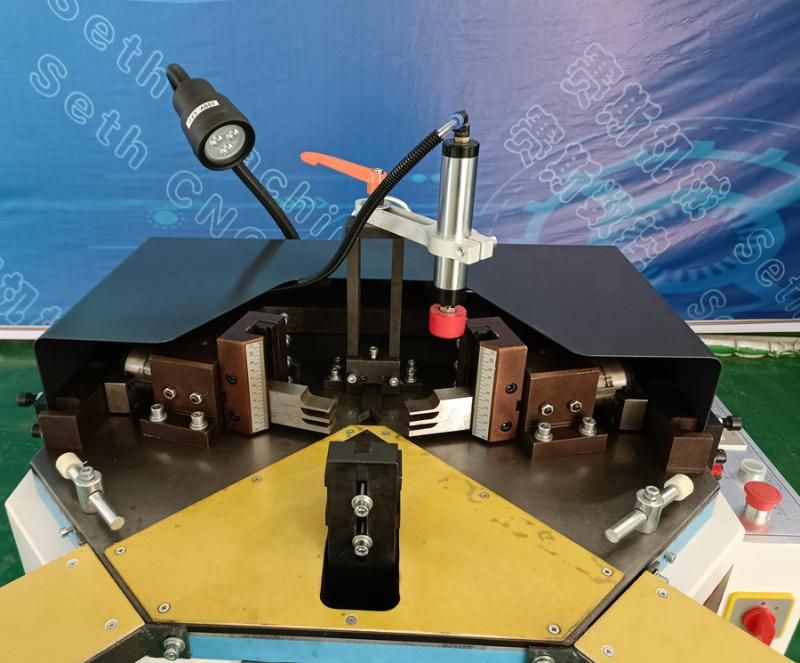

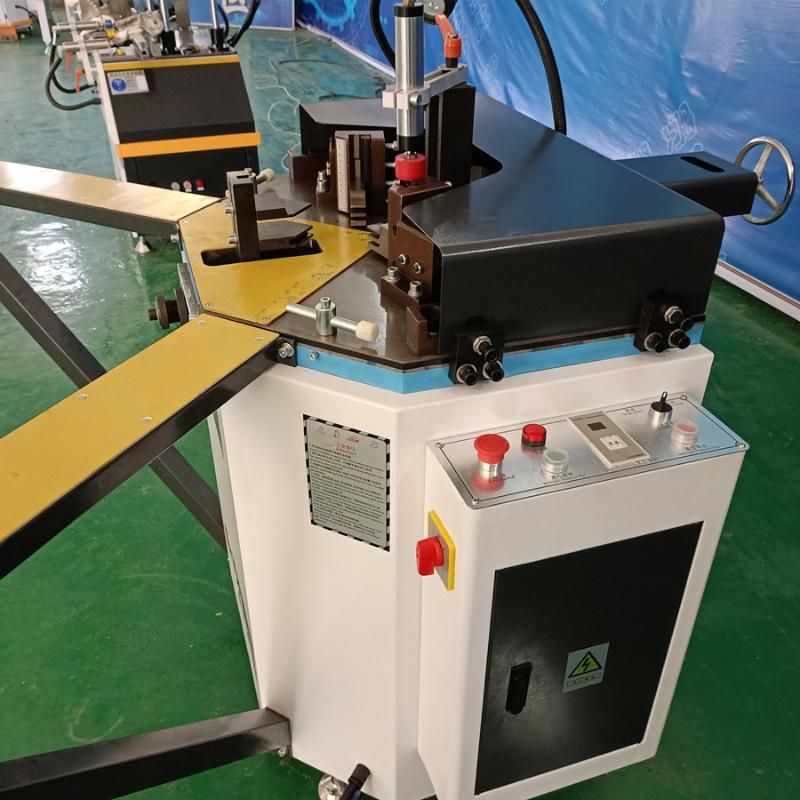

 2.Product details:

3. Technical Parameter:

Power supply	380V/50Hz
Input motor power	1.5kW
Motor speed	1400r/min
Operating pressure	0.6~0.8MPa
Air consumption	3L/min
Rated pressure	15MPa
Extrusion pressure	48KN
Motion stroke of angle cylinder	85mm
Adjustment range of position block	54mm
Height of machine profile	90mm
dimension	1000x1200x1200mm
weight	340kgs

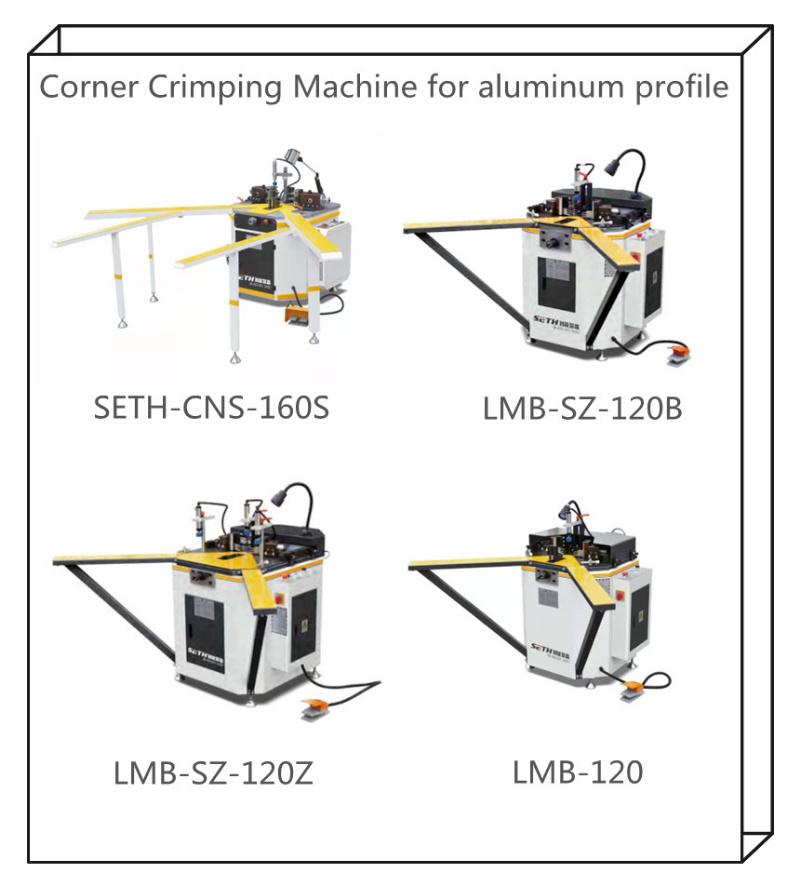

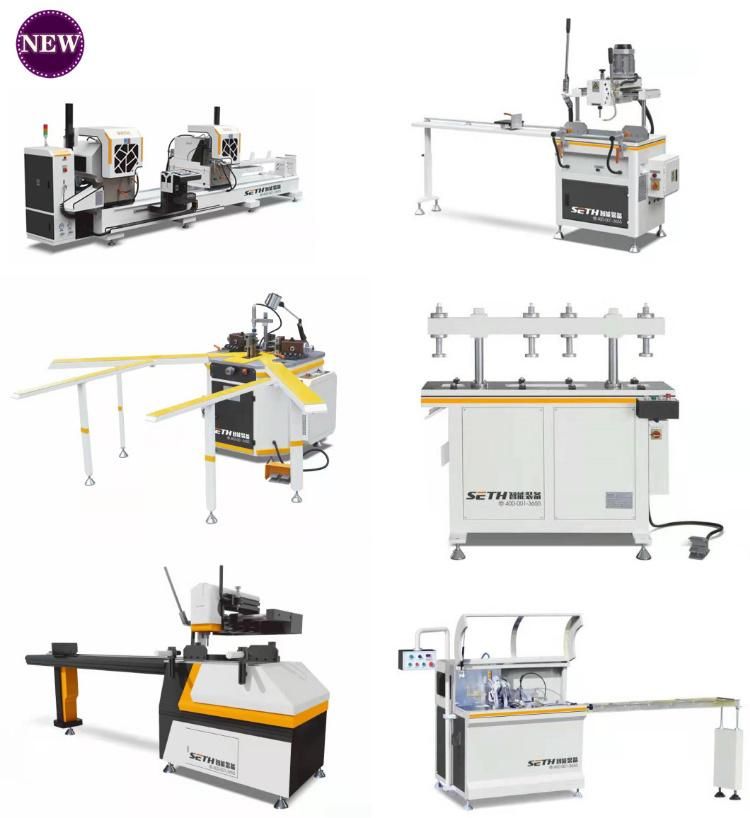

4.Hot products


5.Our company Join hands with SETH lead to IntelligenceJinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,
upvc window and door machine,curtain wall and hollow glass processing machine equipment
that can meet the needs of different clients, and can also be customized according to customer requirements of different grades of products.
The company has rich experience in production and more than 10 national patents and passed ISO9001,SGS,CE certifications, excellent product design and development engineers,
skilled production engineers, experienced production management team and after-sales service
that providing you with a strong guarantee.

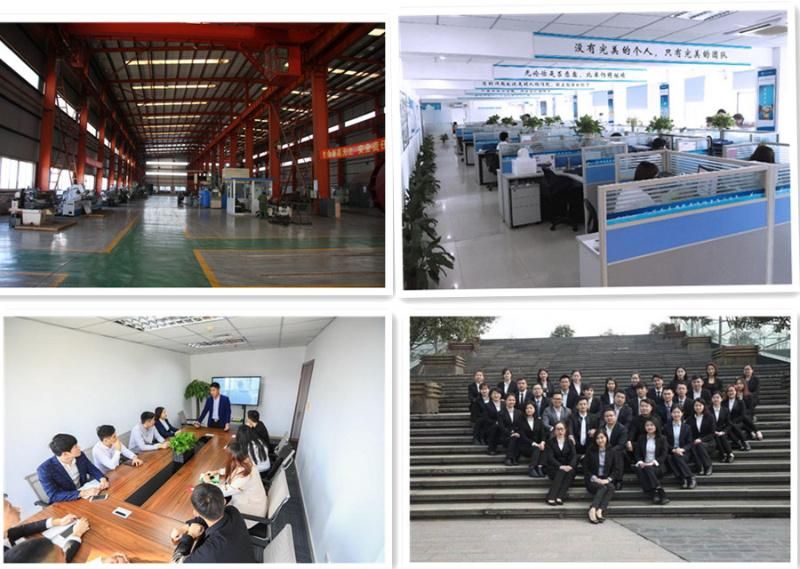

The company has all kinds of equipment processing workshop, assembly workshop and quality inspection center, can independently realize the design of equipment, processing, assembly,
test one-stop flow operation, to ensure the excellent quality of equipment.

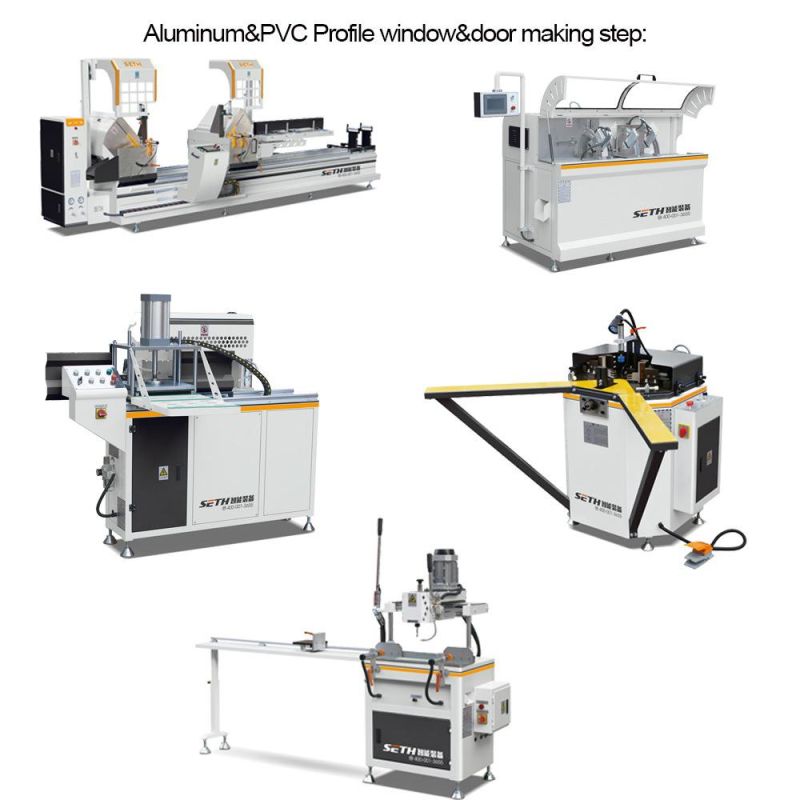

our main products including aluminum&uPVC profile machining center, Aluminum cutting saw
machine ,CNC aluminum corner connector cutting saw,milling machine,end-milling machine,
welding machine,corner cleaning machine.corner crimping machine,punching&drilling machine.
Customer is the foundation, the company in line with the " quality first, customer first" principle,
Please join hands with SETH to lead intelligence.


6.Package and delivery of our Aluminum uPVC window &door machines
7.Certificates
