• Model NO.：SHWG4-120*4500
• Input Voltage：380,220V 50Hz
• Input Power：4.5kw
• Air Pressure：0.6~0.8MPa
• Air Consumption：200L,Min
• Welding Length：450~4500mm
• Welding Height：20~120mm
• Overall Dimension：5300*1200*1750mm
• Transport Package：Wooden Box
• Specification：5300*1200*1750mm
• Trademark：YueFeng
• Origin：China
• HS Code：8477800000
• Production Capacity：30 Window Per Day

Basic Info.

Model NO. SHWG4-120*4500 Input Voltage 380/220V 50Hz Input Power 4.5kw Air Pressure 0.6~0.8MPa Air Consumption 200L/Min Welding Length 450~4500mm Welding Height 20~120mm Overall Dimension 5300*1200*1750mm Transport Package Wooden Box Specification 5300*1200*1750mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 30 Window Per Day

Product Description

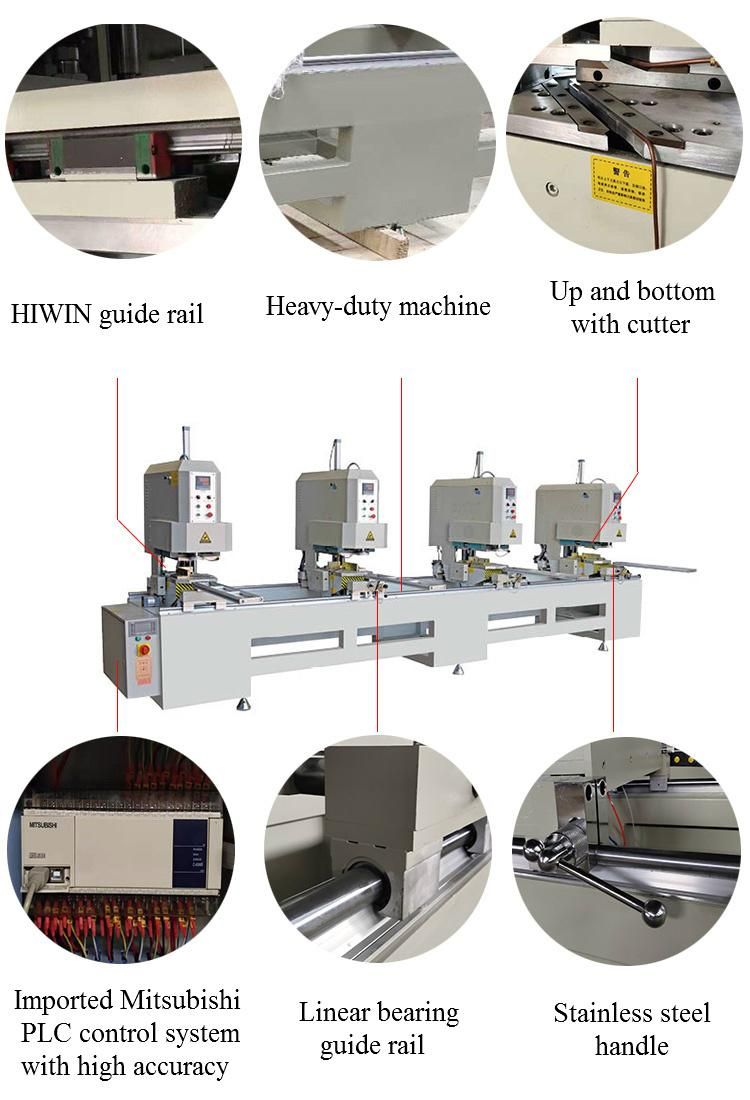

   SHWG4-120×4500  Four-head Seamless Welding Machine (Double Side)
Feature


1. The lower workbench is one-piece plate structure instead of the conventional five-row structure, and the lower pressure pliers are operated on the precision square rail.( The only manufacturer in China that uses a one-piece structure, by national patent)

2. Independent auxiliary compression can effectively prevent the material from running, which makes the diagonal melting more accurate.

3. Because the PVC plastic profile itself has some variability such as a deformation,angular instability,non-perpendicular,etc., this model is especially designed with a variety of profiles to design a simple and convenient combination type plate, which can nit only effectively assist the machine,but also ensure the weld flatness, angle and size of the doors and windows. And no need to customize the backup plate to achieve almost all the world's door and window profiles welding.

4. Each heads has a separate lubrication system to lubricate all the rail parts in the head.

5. The locking of the machine head is automatic locking, which is convenient and quick.

Technical Parameter:


Model	SHWG4-120*4500
Input voltage	380/220V 50Hz
Input power	4.5Kw
Air pressure	0.6~0.8MPa
Air consumption	200L/min
Welding length	450~4500mm
Welding height	20~120mm
Overall dimension	5300*1200*1750mm

FAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
