• Model NO.：LJZ2-CNS-500x4200
• Voltage：380V
• Input Power：4.5kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：200L,Min
• Spindle Speed：3200r,Min
• Cutting Length：360~4200mm(360~5000mm)
• Cutting Width：10~130mm
• Cutting Height：10~300mm
• Cutting Angle：90 45 67.5 Degree
• Saw Feeding Speed：0~3m,Min
• Saw Blade Standard：500X4.4X30xz120
• Overall Dimension：5500(6300)X1700X1600mm
• Transport Package：Plastic Cover or Wooden Cases
• Trademark：YUEFENG
• Origin：Jinan, Shandong, China
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. LJZ2-CNS-500x4200 Voltage 380V Input Power 4.5kw Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Spindle Speed 3200r/Min Cutting Length 360~4200mm(360~5000mm) Cutting Width 10~130mm Cutting Height 10~300mm Cutting Angle 90 45 67.5 Degree Saw Feeding Speed 0~3m/Min Saw Blade Standard 500X4.4X30xz120 Overall Dimension 5500(6300)X1700X1600mm Transport Package Plastic Cover or Wooden Cases Trademark YUEFENG Origin Jinan, Shandong, China Production Capacity 100 Sets Per Month

Product Description

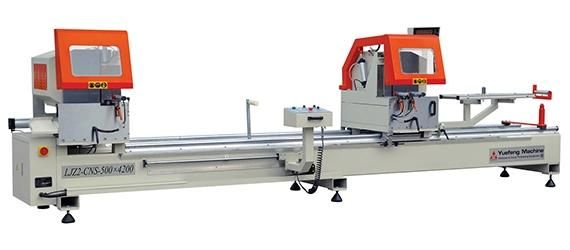

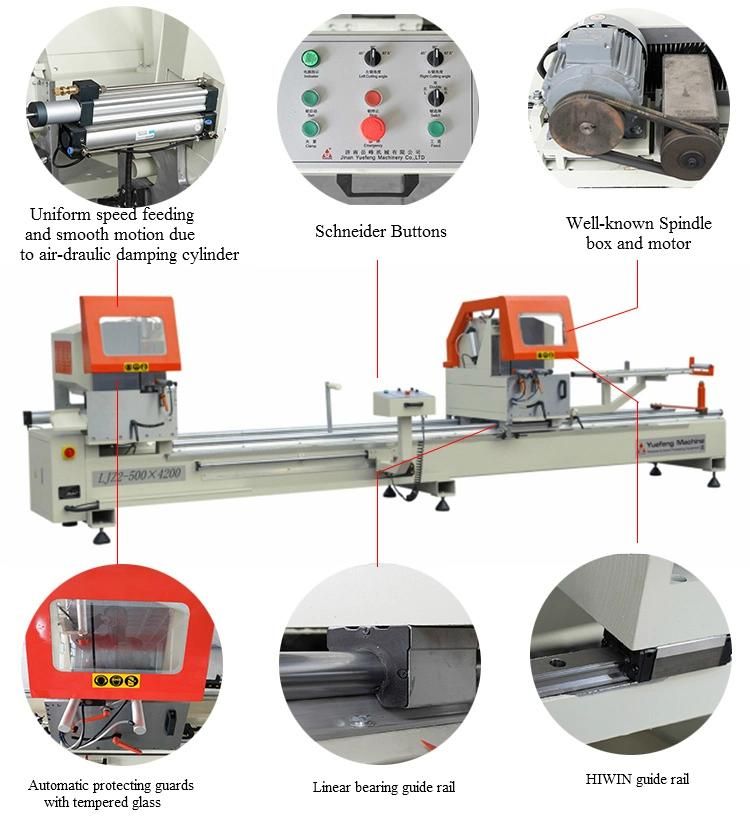

Automatic CNS double head cutting machine for aluminum and upvc window and doorUsed for cutting profiles such as aluminum profile and curtain wall.
Touched screen and import controlling system adopted with high accuracy and smooth working. Two heads cutting angle 90°45°67.5°(22.5°) are available.
Setting heights of profiles will show the lengths of cutting with different angles (90°, 45°, 67.5°) automatically.
The system can store various of profiles, convenience and efficiency.
Digital display system adopted, with high efficiency and accuracy.


Technical Parameter:


Model	LJZ2-CNS-500×4200(5000)
Input voltage	380V 50Hz
Input power	4.5Kw
Air pressure	0.5~0.8MPa
Air consumption	200L/min
Spindle speed	3200r/min
Cutting length	360~4200mm(360~5000mm)
Cutting width	10~130mm
Cutting height	10~300mm
Cutting angle	90° , 45° , 67.5°
Saw feeding speed	0~3m/min
Saw blade standard	φ500×4.4×φ30×Z120
Overall dimension	5500(6300)×1700×1600mm

RFQ:

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
