• Model NO.：NX470
• Product Name：Joint Hidden Standing Seam Roof Machine Machine
• Raw Material：PPGI Sheet
• Thickness Range：0.3-0.8mm
• Machine Power：4kw+3kw
• Machine Weight：About 5 Tons
• Warranty：12 Months
• Afer-Sales Service：Engineer Is Availble to Overseas
• Speed：5-12m,Min
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：5500mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

 Reliable Joint  Hidden Standing Seam Metal Roof RollForming Machine

Suitable Raw Material 0.3-0.6mm, G350-G550, Color steel coil, Galvanized coil, Aluminized zinc coil or as your requestUnder Frame400 H-beam Sidewall 16mmConnect Bar25mm, zinc platedRollerHigh grade 45# steel, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keywayShaft70mm, solid, finish turning, cylindrical grinding, with keywayForming Stations 23PLC DELTA, TAIWANMain Motor  7.5kw, Lichao, Shanghai, with reducerHydraulic Pump station  4kwCutting bladeCr12Mov, quenching 58-62°, double oil cylinderOil paintNational standard greyComputer screenDELTA, TAIWANChain 1inch

5. Guarantee:

1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

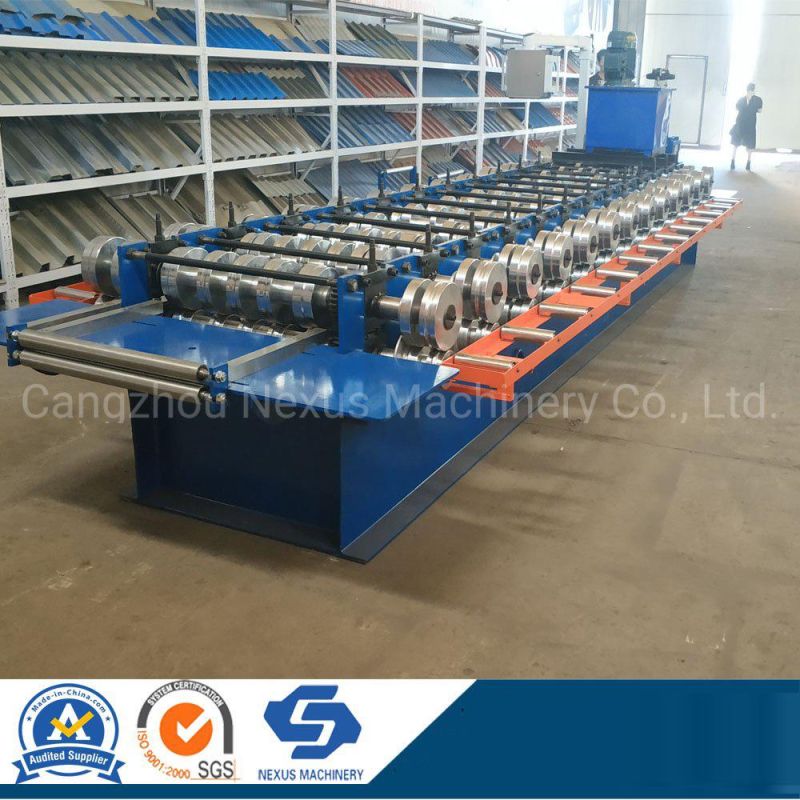

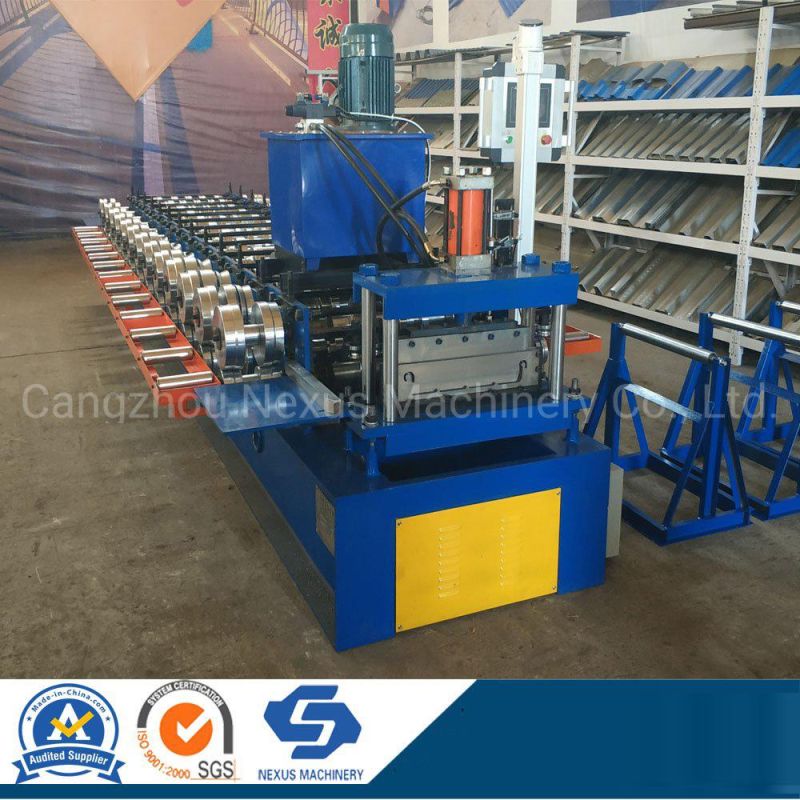

6. Photos ofGalvanized Metal Dry Joint-hidden Wall Tile Stud  Roll Forming Machine  for Reference:










ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
