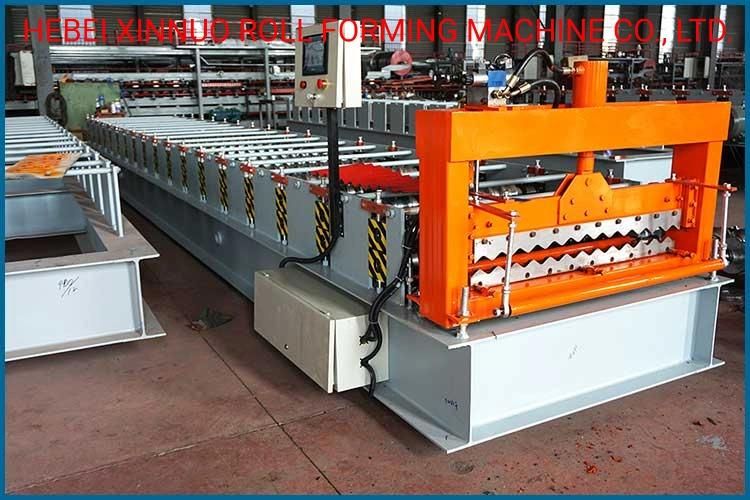

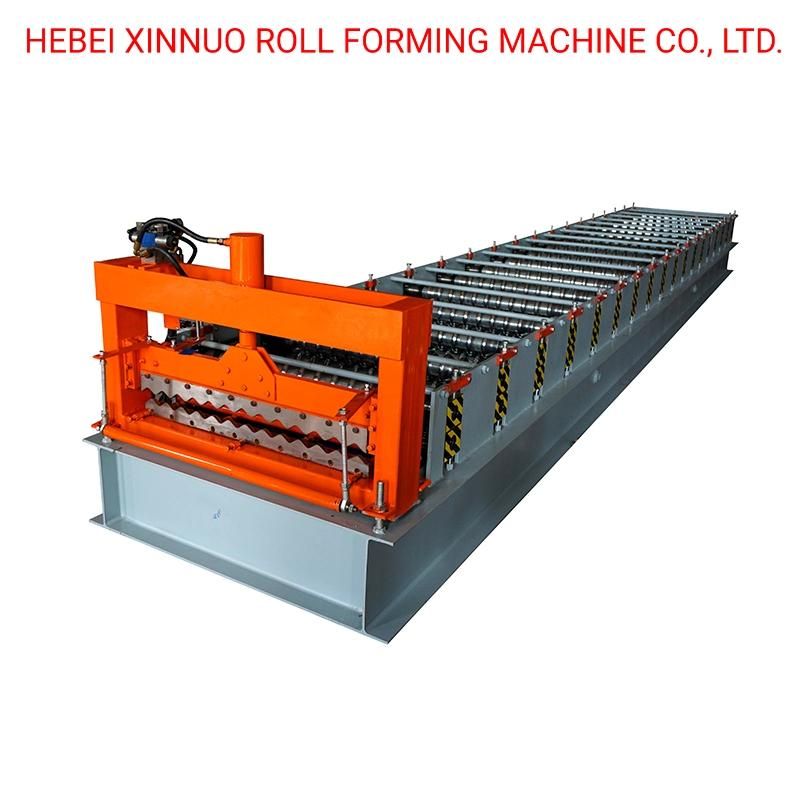

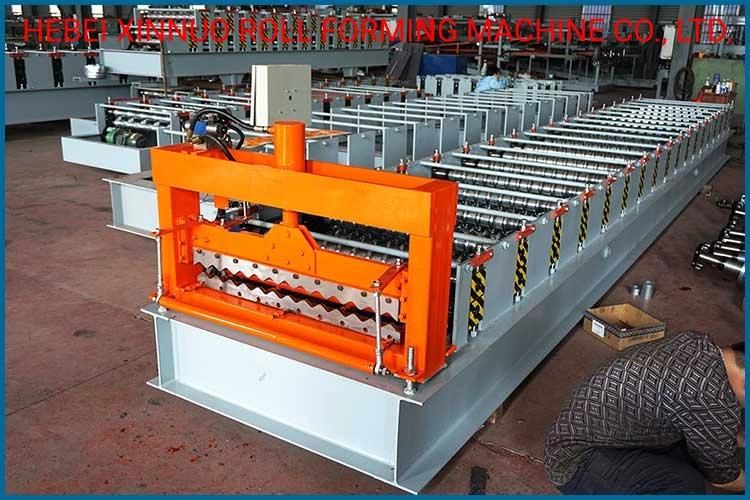

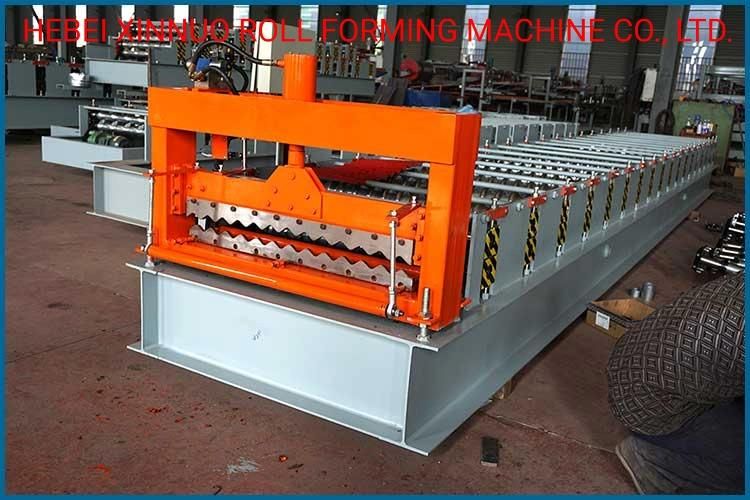

Post Corrugated 800 Barrel Type Manufacturing Machine
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof
- Transmission Method：Electric
Base Info
- Model NO.：800
- Color：as Required
- Weight：3t
- Transport Package：Main Machine Is Nude
- Specification：7.2*1.4*1.2m
- Trademark：kexinda
- Origin：China-Mainland
- Production Capacity：1set,Month
Description
main parameter of roll forming machine1 Suitable to process Color steel plate 2 Width of the plate 1000mm 3 Rollers 12rows 4 Dimensions 7.2*1.4*1.2m 5 Power 3+3kw 6 Thickness of the plate 0.3-0.8mm 7 Productivity 8-12m/min 8 Diameter of the roller Φ70mm 9 Weight About 3.2 T 10 Voltage 380V 50Hz 3phases 11 Rolling material Carbon Steel 45# 12 Material of the cutting plate Cr12 13 Processing precision Within 1.00mm 14 Control system PLC control
ADVANTAGE
DETAIL
ADVANTAGE
| Our machine | Influence of the machine | |
| Main forming machine body | High strength H350 or H400 steel. machine through milling machine after welding | Sturdy and durable, ensure the plate standard |
| Material of the roller | High grade No.45 forged steel | Ensure the forming effect of the panel and the use age will be longer,the surface of the panel |
| Material of the cutting | GCr12 steel with quenched treatment | Cutting is out of shape not easily and use age will be longer,the panel size precision |
| Material of the active shaft | High grade solid No.45 carbon steel, Shaft diameter is 72mm. | Improve the integrated mechanic feature of the shaft and keep product standard |
| Control system | PLC control system,some elements are imported from Japan and Germany | Machine become more accurate and more stable |

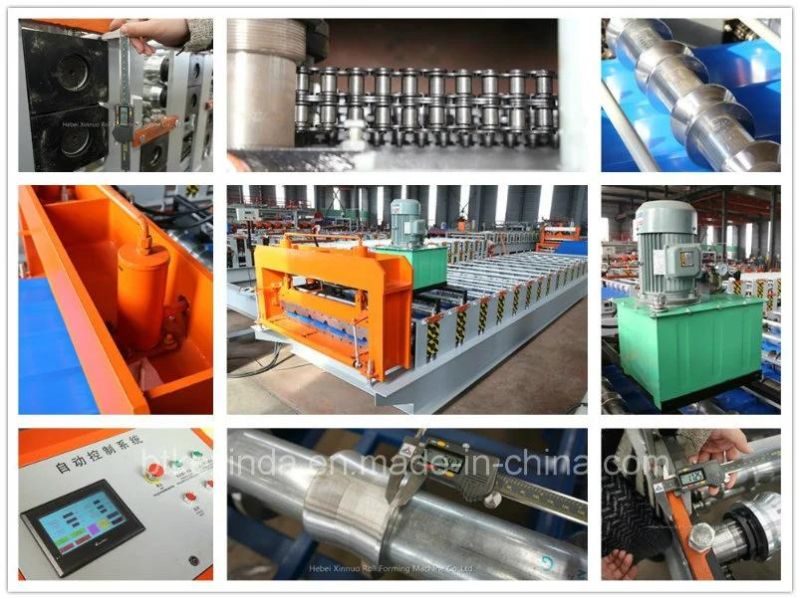

DETAIL
