• Model NO.：200-2000mm
• Size：200-2000mm
• Capacity：200*1000mm 150PCS,8hours
• Voltage：380V
• Power(W)：5.5--22kw
• Dimension(L*W*H)：2200*1600*4150mm
• Weight：3000kg
• Vibration Frequency：Max.1400r,M
• Transport Package：Standard Packing for International Transport
• Specification：ISO certified
• Trademark：FOCUS
• Origin：China
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. 200-2000mm Size 200-2000mm Capacity 200*1000mm 150PCS/8hours Voltage 380V Power(W) 5.5--22kw Dimension(L*W*H) 2200*1600*4150mm Weight 3000kg Vibration Frequency Max.1400r/M Transport Package Standard Packing for International Transport Specification ISO certified Trademark FOCUS Origin China Production Capacity 50 Sets Per Month

Product Description

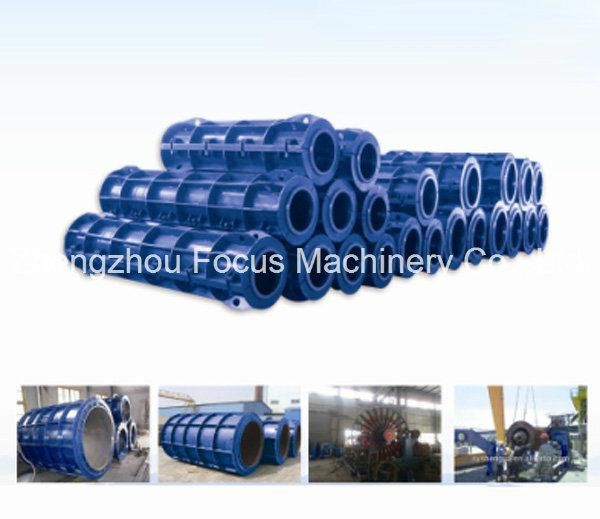

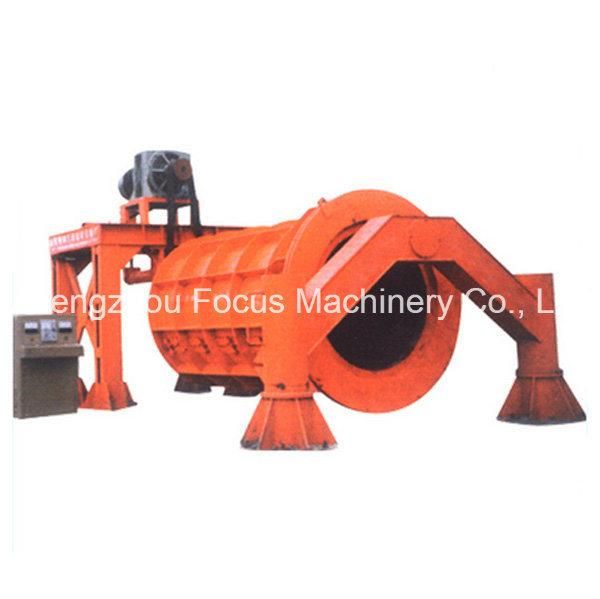

Introduction of drainage concrete pipe machine with steel mould

1.drainage concrete pipe machine is ideal equipment for producing concrete tubes, now it is reasonable in design, beautiful in appearance, reliable in performance and convenient in operating.

2.Its quality is approved by ISO9001 and CE.

3.With this series of drainage concrete pipe machine, the concrete tubes with specifications of 200-2000mm can be produced by using pulverized coal ash, slag, sands and crushed stone pulsing little quantity of cement.

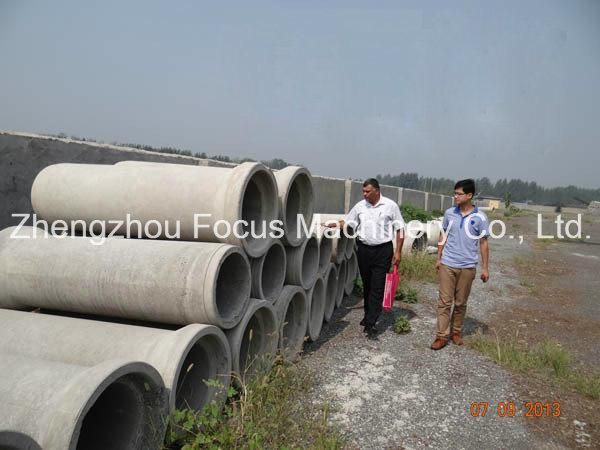

3.The tubes produced with this series machines are even in their wall thickness, smooth on surface, high in compression strength, convenient and firm in connection, and excellent in anti-seeping, which are widely used in agricultural irrigation and draining projects in cities.

4.The concrete pipe have steel bar inside.



type of pipe	pcs/8hours
φ200*1000mm	150
φ300*1000mm	150
φ400*1000mm	120
φ500*1000mm	110

power	22kw
overall	2200*1600*4150mm
electrical source	Max 1400r/h
vibration frequency	380V/50Hz
total mass	3000kg
