UPVC PVC Profile Window Making Machine Two-Axis Water Slot Router Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Semi-Automatic
  • CNC or Not：not CNC
  • Voltage：220V
  • Model：Scx02-2-50

Base Info

  • Model NO.：SCX02-2-50
  • Input Voltage：220V 50Hz
  • Input Power：0.9kw
  • Air Pressure：0.4~0.6MPa
  • Air Consumption：30L,Min
  • Rotating Speed：28000r,Min
  • Max. Milling Length：50mm
  • Max. Milling Depth：40mm
  • Diameter of Milling Cutter：4mm;5mm
  • Overall Dimension：2490*900*1650mm
  • Transport Package：Wooden Box
  • Specification：2490*900*1650mm
  • Trademark：YueFeng
  • Origin：China
  • HS Code：8477800000
  • Production Capacity：40 Window Per Day

Description

Basic Info.

Model NO. SCX02-2-50 Input Voltage 220V 50Hz Input Power 0.9kw Air Pressure 0.4~0.6MPa Air Consumption 30L/Min Rotating Speed 28000r/Min Max. Milling Length 50mm Max. Milling Depth 40mm Diameter of Milling Cutter 4mm;5mm Overall Dimension 2490*900*1650mm Transport Package Wooden Box Specification 2490*900*1650mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Window Per Day

Product Description

UPVC PVC Profile Window Making Machine Two-Axis Water Slot Router MachineSCX02-2-50   Two-axis Water Slot Router

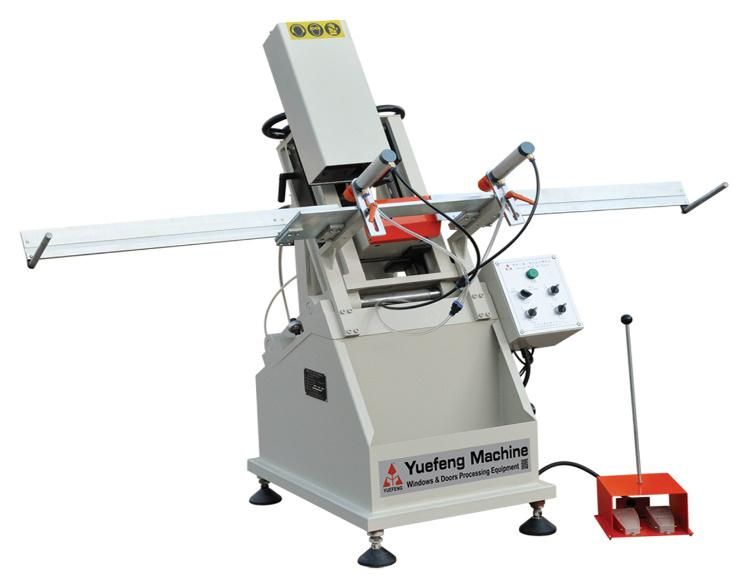

UPVC PVC Profile Window Making Machine Two-Axis Water Slot Router Machine


1.The machine processes all types of water slots and air pressure balance grooves.
2.The machine head is adjustable to meet different profiles; drilling and milling can be completed automatically at the same time;
3.It has the characteristics of high efficiency.

Technical Parameter:
Model SCX02-2-50
Input voltage220V 50Hz
Input power0.9 kw
Air pressure0.4~0.6MPa
Air consumption30L/min
Motor rotating speed28000r/min
Max. milling length50mm
Max. milling depth 40mm
Diameter of milling cutterφ4mmφ5mm
Overall dimension2490×800×1650mm




UPVC PVC Profile Window Making Machine Two-Axis Water Slot Router Machine
UPVC PVC Profile Window Making Machine Two-Axis Water Slot Router Machine
UPVC PVC Profile Window Making Machine Two-Axis Water Slot Router Machine
UPVC PVC Profile Window Making Machine Two-Axis Water Slot Router MachineUPVC PVC Profile Window Making Machine Two-Axis Water Slot Router MachineFAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
