Qt4-15 Xinming Hydraulic Brick Machine Automatic Color Paving Brick Making Machine for Construction
Shandong Xinming International Trade Co., Ltd.- Certification：CE, ISO, SGS
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
- Description：Qt4-15 Hydraulic Block Making Machine
- Weight：5.4t
Base Info
- Model NO.：QT4-15
- Molding Area：1016*600mm
- Water Consumption：5-6t
- Block Type：Hollow Soild Paving Block
- Standard Hollow Block：400*200*200mm
- Color：Optional
- Mold Period：15 Seconds
- The Size of Pallet：960*550*20mnm
- Mixer Model：Js500 Concrete Mixer
- Vibration Force：40-50kn
- Factory Area：1000-1500m2
- Pallet Number：1500 PCS
- Rated Pressure：21MPa
- Labor：5-7 Workers
- Transport Package：Nude in Container,LCL
- Specification：3500(L)*1700(W)*2830(H)mm
- Trademark：Xinming
- Origin：China
- HS Code：8474802000
- Production Capacity：500PCS,Month
Description

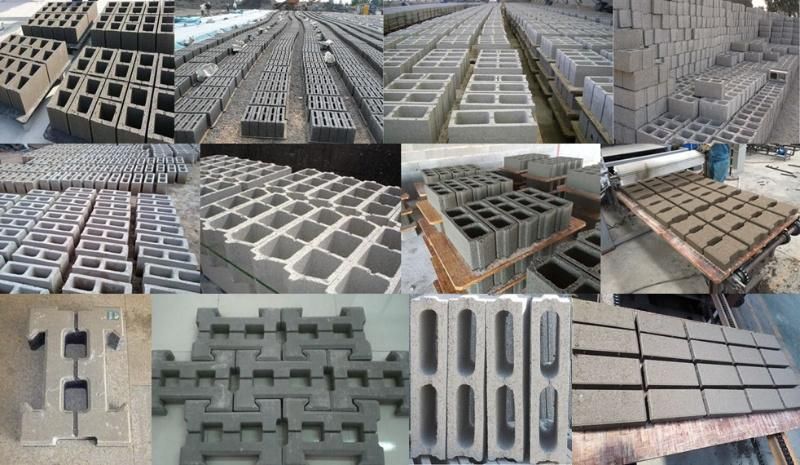

Ability to make bricks
QT4-15 Automatic Concrete Block Making Machine is multipurpose, especially, the mold is changable. It can produce different size and shape of blocks by changing moulds. Such as concrete hollow block, soild block, colorful paver brick, curbstone etc.
200*100*60mm
23040Pcs/8h
Other Information And Our Services
Workers Number: 5-6 Workers
Two workers to load material into Mixer
One Workers to operate block machine
One Workers to load pallet into pallet box of block machine
One or Two workers to carry fresh blocks to curing size
Factory Area : 1000-1500M2 ; Shelter Area; 200M2
Pallet Number for QT4-15 automatic block making line: 1500 pallet
Xinming Machinery Factory supply bamboo pallet, fiber (GMT) pallet and PVC pallet. We recommend you the Fiber Pallet.
Maintance: QT4-15 automatic hollow solid block making machine is easy in maintance. please clean the mixer and mold after everyday work and fasten screws and add lubrication oil to moving parts before every day work.
Install Service: We will ship machine in whole one. you only connect elecctricity line with block machine, the machine can work. the manual and installtion video is avaible.
Guarantee Time: One year. we will supply free accessories with machine for one year use. and Technical service and spare parts are avaible in all time.

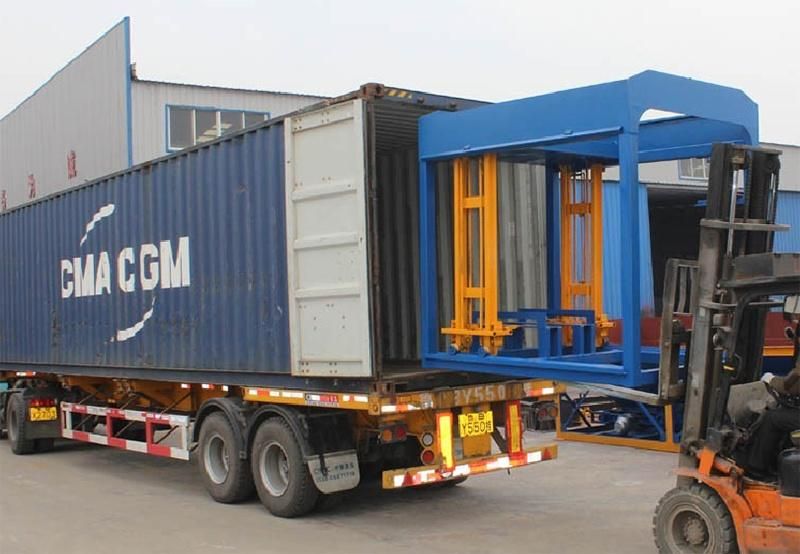

Packing
Company introduction
Xinming Machinery Co., Ltd is one of the biggest professional manufacturers of block machine with 18 years histories. Our Factory is located in Linyi City, Shandong Province, China.
On the basis of Rich experience and advanced Germany technologies,Xinming Machinery are majored in models of concrete block machine and clay interlocking brick machine to meet requirement of all customers. Such as automatic block machine, semi-automatic block machine, manual block machine, paver machine, curbstone machine and clay interlocking lego brick making machine. Xinming Machinery is widely used and praised in more than 70 countries such as Ghana, Kenya, Peru, Mexico, Vietnam, Sudan and so on.
