• Certification：ISO, CE
• Automatic Grade：Automatic
• CNC or Not：CNC
• Voltage：380V
• Power Supply：380V,50Hz
• Saw Head Motor：2*3.0km 2840r,Min
• Working Pressure：0.6~0.8MPa
• Air Supply：60L,Min
• Cutting Length：380~4300mm
• Cutting Width：Max.135mm
• Max.Cutting Slop：45° 135X180mm
• Cutting Angle：90° 45°
• Feeding Speed：0~3m,Min
• Saw Blade Specification：Φ500X4.4X30 Z=120
• Overall Dimension：5800X1800X1500mm
• Weight：1450kg

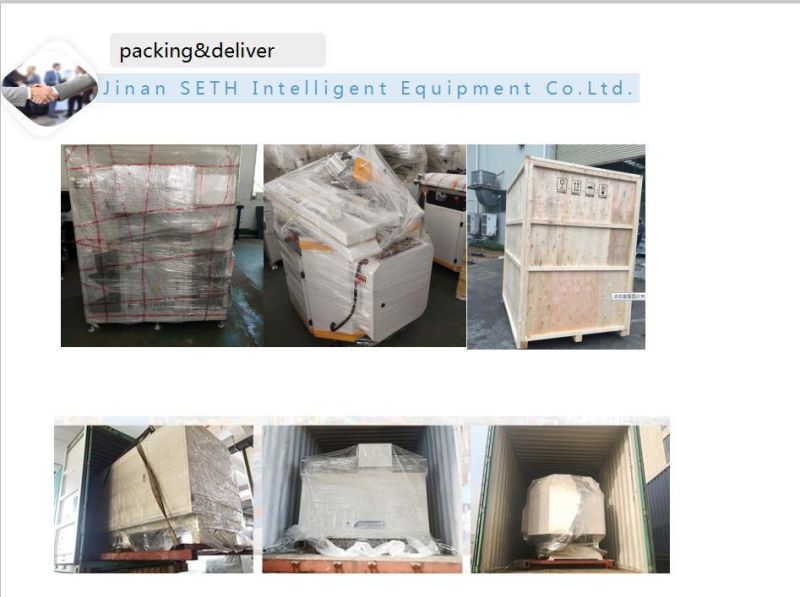

• Transport Package：Wooden Box
• Specification：500*4300-A
• Trademark：Seth
• Origin：Jinan
• Package size per unit product：580.00cm * 180.00cm * 150.00cm
• Gross weight per unit product：1450.000kg

Product Description

1.Mainly used for cutting industrial aluminum profiles, broken bridge aluminum doors and windows, curtain wall materials, and also used for cutting and blanking PVC and wood profiles.
2.Imported digital magnetic grid system automatically displays the cutting length, which has high precision of repeated positioning and convenient operation.
3.High-quality carbide saw blades for aluminum materials are selected, with an outer diameter of 500, high linear speed and high machining accuracy.
4.The high-precision spindle makes the saw blade rotate stably and effectively improves the surface quality of the workpiece.
5.Gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement.
6.Adopt micro spray cooling device.
7.The machine head can rotate automatically, position and clamp in two directions, and can work independently with a single machine head.
8.Automatic opening and closing of protective cover makes operation safer.
9.The saw blade automatically swings at an angle of 45° and 90° , and the protective cover automatically opens and closes, which makes the operation safer.
