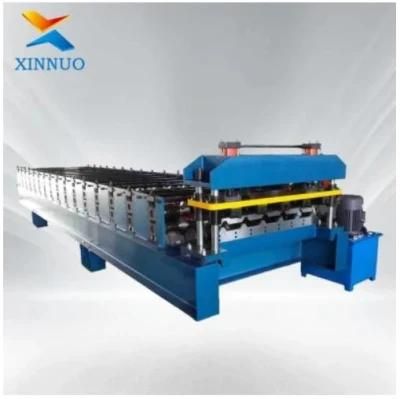

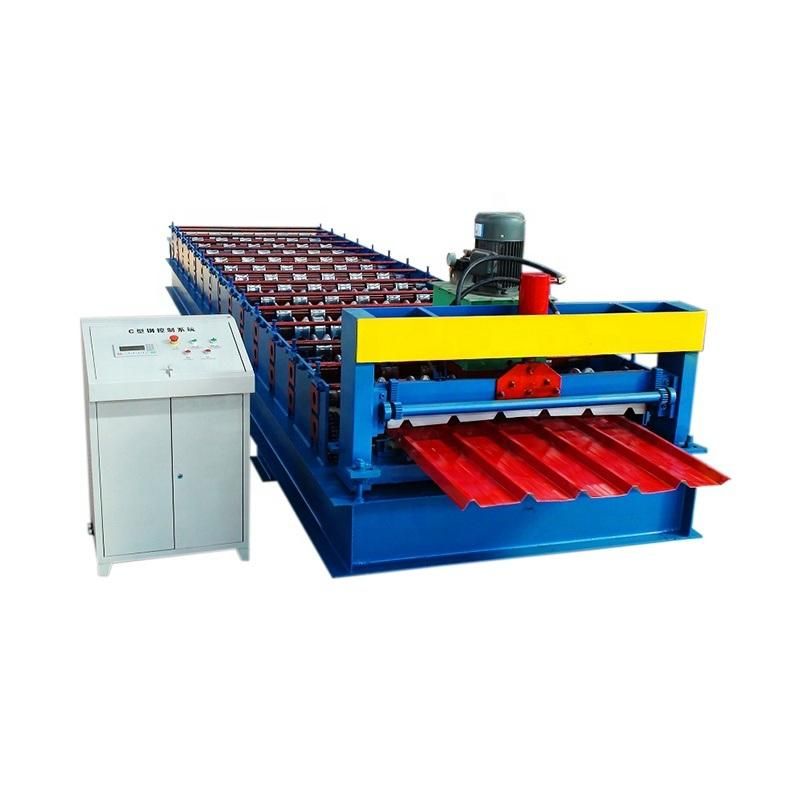

• Model NO.：Trapezoidal Roofing Sheet Roll Forming Machine
• Usage：Roof, Wall
• Transmission Method：Machinery
• Weight：3.2 Kg
• Feeding Width：1220mm
• Roller Material：45#Steel
• Production Speed：8-12m,Min
• Rolling Thinckness：0.3-0.8mm
• Control Sysem：PLC Automatic Control
• After Warranty Service：Video Technical Support
• Transport Package：Main Machine Is Nude in The Container
• Specification：7600mm*1300mm*1450mm
• Trademark：HUA YU XIN NUO, XINNUO
• Origin：Buotou Hebei, China
• Production Capacity：30 Set,Sets Per Month

↓↓↓↓↓Click here to get in touch with us↓↓↓↓↓
Product Specification

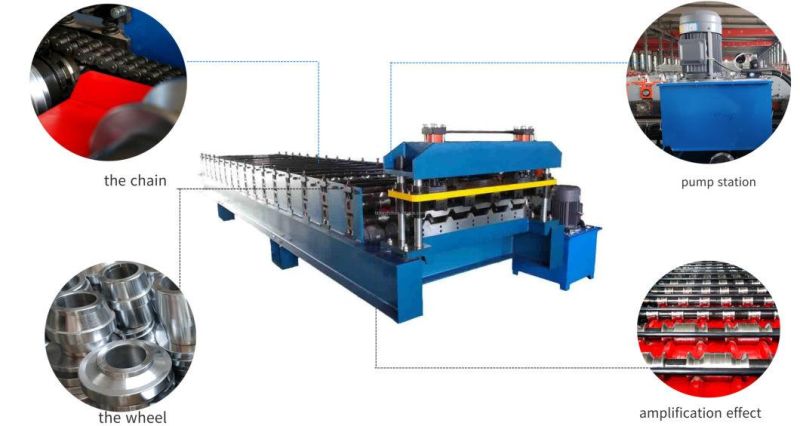

1. The advantage of  roof color steel metal sheet roll forming machine china manufacturer

It has reasinable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the costomer with limit area or site operation.

2. Main Parameter and specification of the roof color steel metal sheet roll forming machine china manufacturer

We design each machine according to user requirement. Below techinical parameters can be adjusted if needed.


control systemautomatic PLC frequency control ,text screen.roller steps9rowsmain powerpump power:4kwDiameter of rollerΦ72mmmax speed12m/minfeeding width1220mmthe effective width1010mm,tolerance ±1/100thickness of the plate0.35-0.6mmthe dimension of main roll former7600mm×1300mm×1450mmroller material45#steel,CNC-machined ,heat treatment, buffing, surface for electroplating chromium 0.05mm



Recommend Purchase Plan
plan
This set of schemes are not only high value, but also the configuration is superior, and the whole process is automated.↓↓↓↓↓Click here to get in touch with us↓↓↓↓↓Packing and Shipping
Company Profile
↓↓↓↓↓Click here to get in touch with us↓↓↓↓↓
FAQ
1:How to play order:
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can
pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
 4.What's the after- sale service:
we sent technician to your country to fix the machine.The buyer should bear all the cost including:
visa, round trip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
5.How about the warranty: 12 months limits warranty.
