• Model NO.：KXD
• Customized：Customized
• Usage：Roof, Wall, Stone Coated Roof
• Power：38V, 50Hz, 3 Phrase or as Your Like
• Transport Package：Main Machine Nude Packing with Plastic Film
• Specification：5800*1500*1500
• Trademark：KXD
• Origin：Botou City
• HS Code：8455221000
• Production Capacity：7000

Basic Info.

Model NO. KXD Customized Customized Usage Roof, Wall, Stone Coated Roof Power 38V, 50Hz, 3 Phrase or as Your Like Transport Package Main Machine Nude Packing with Plastic Film Specification 5800*1500*1500 Trademark KXD Origin Botou City HS Code 8455221000 Production Capacity 7000

Product Description

Colorful stone chip coated metal roofing tile making machinechina manufacturer











Our advantageous:
1: Factory direct supply price.
2: We have exported for more than 10 years.
3: Our customer are from about 70 countries.
4: We have the professional research team. We can make the machine according to your requirement.
5: High-end and high-grade design
6: Free technical support and Free accessoies supply.
1. The compositions of color stone tile production:
1.     Auto bottom gule spraying section
2.     Auto stone coated section
3.     The first time drying section
4.     Auto face gule spraying section
5.     The second time drying section
Product Description
Good price/performance ratio Color stone coated steel roof tile making machine with PLC control system
Product Description
1. Colorful stone-coated metal roof tile is a modern environmently friendly roofing material with the basic of 0.4mm AL-zin coated steel.
2. Covering color vermiculite surface with carried under the high temperature technology.
3. It is high-performance, stable, energy-efficient and easy operation.
Main characteristics
1. PLC computer control
2. No noise, no shake
3. Hydraulic system
4. Easy operation
5. Maintenance free
Main equipment
1. Automatic bottom glue spraying equipment
2. Automatic sand blasting room
3. First drying room
4. Automatic surface glue spraying equipment
5. Second drying room equipment component

NO. 1 Automatic bottom glue spraying equipment
Appearance size    4000*1000*2000mm
Driving section    3KW excitation motor
Automatic pressure spray tank    1 set; Capacity: 200kg; Range: 0.6-1MPa
Automatic glue machine motor    Servo motor: Power: 750W; PLC
Automatic spray gun    4 set
Dust collecting fan    1 set power: 200W
Damp proof lamp    1 PC; Power: 100W
Conveying device    Chain reciprocating
Air compressor    1 set power: 7.5kw
Dust control of axial flow fan    1 set power: 200W
Agitator    1 set power: 1.5kw
NO. 2 Automatic sand blasting room
Appearance size    3500*1000*1500mm
Frame work    Steel welding
Conveying device    Chain reciprocating
Automatic sand hopper    1 set; Capability: 200kg
Bucket lift    1 set
Manual sang blast gun    4 sets

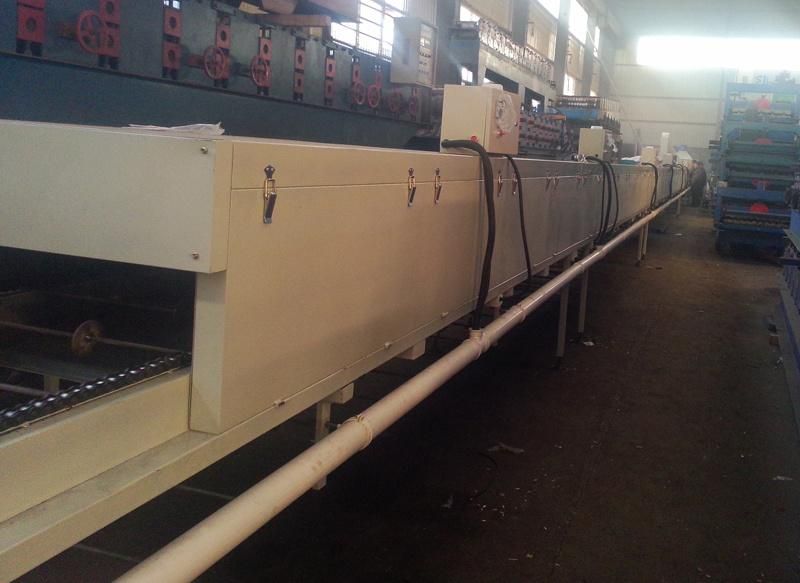

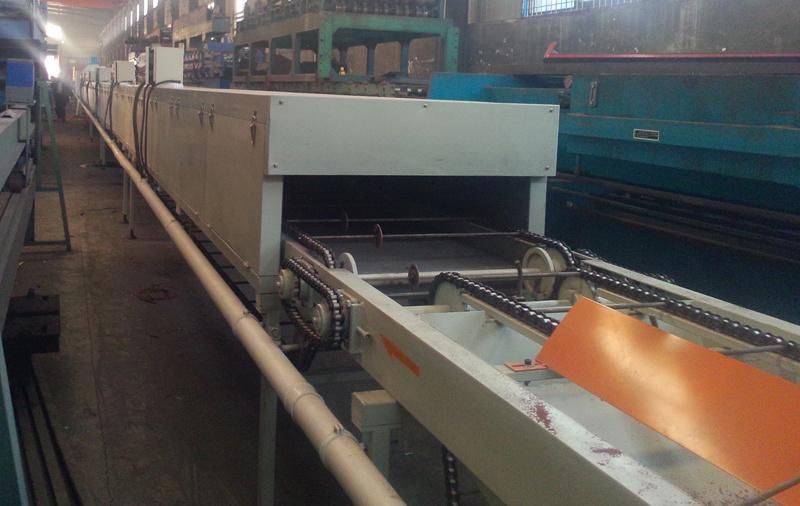

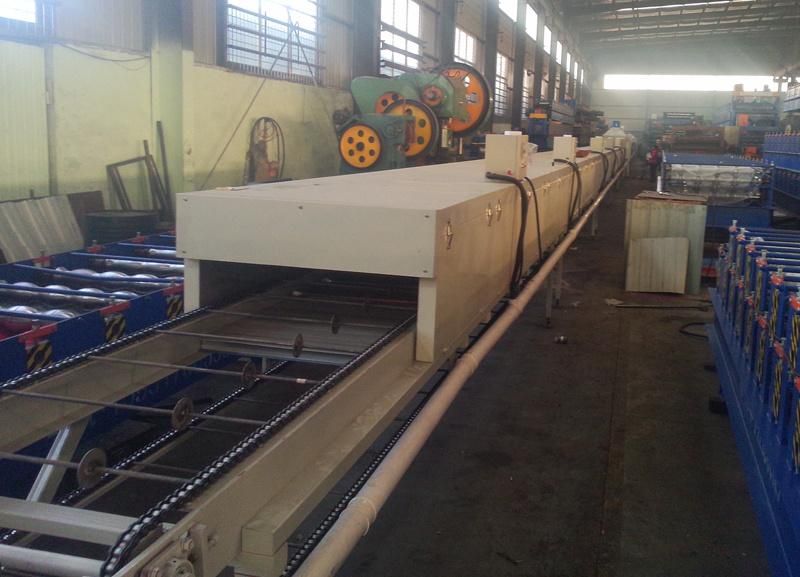

NO. 3 First drying room
Appearance size    25000*1000*1200mm
Framework    Steel welding
Frame type thermal insulation wall    1.2mm cold steel with rock wool
Automatic temperature controller    4sets range: 0-160
Infrared heating tube    30PCS power: 30kw
Conveying device    Chain reciprocating
Air cooling device    1set power: 200W
NO. 4 Automatic surface glue spraying equipment
Appearance size    3000*1000*2000mm
Framework    Steel welding
Damp proof lamp    1PC; Power: 100W
Automatic pressure spray tank    1set; Capability: 200kg; Range: 0.6-1MPa
Conveying device    Chain reciprocating
Automatic spray gun    4sets
Manual patch glue gun    4sets
Dust control of axial flow fan    1set; Power: 200W
Automatic glue machinemotir    Servo motor; Power: 750W

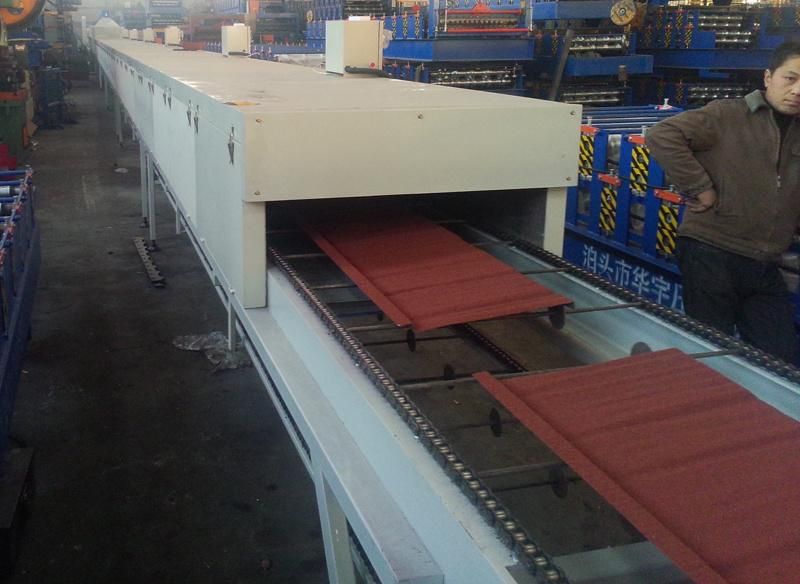

NO. 5 Second drying room equipment component
Appearance size    30000*1000*1200mm
Framework    Steel welding
Frame type thermal insulation wall    1.2mm cold steel with rock wool
Automatic temperature controller    4sets; Range: 0-160
Infrared heating tube    30PCS; Power: 30kw
Conveying device    Chain reciprocating
Air cooling device    1set; Power: 200W
ABOUT US
We are the manufacturers all kinds of roll forming machine, which can provide overseas after-sales service.
Our company has found for over 1 8 years since 1 9 9 6.
We are the professional manufacture to produce different kinds of roll forming machine
Roof and wall panel roll forming machine
C/z purlin roll forming machine
Sandwich panel production line
Floor deck roll forming machine
Light steel keel roll forming machine
Container board roll forming machine
Bending machine, cutting machine and automatic un-coiler
Trapezoidal steel roof panel roll forming machine for sale
All the parameters are only for reference, we can Joint-Hidden Roofing Sheet Roll Forming Machine as per your profile drawings.
Payment terms
T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery )
Packaging & Delivery
Packaging Details:
Stone Coated Metal Roof Tile Making Machine is standard export package, all Components Fixed by steel wire with Container.
Delivery Detail:
Within 90 days after receiving deposit
If needed, please feel free to contact with me

Mob:15933284089 /15832744556
