Building Material Making Machinery

Home > Product > Purlin Machine

C Z Purlin Roll Forming Machine C Z Channel Tile Making Machine

Cangzhou Nexus Machinery Co., Ltd.
  • Warranty：1 Year
  • Certification：CE, ISO9001
  • Customized：Customized
  • Condition：New
  • Control Type：Electric
  • Automatic Grade：Automatic

Base Info

  • Model NO.：NX80--300
  • Name：C Z Purlin Roll Forming Machine
  • Total Power：7.5kw+3kw
  • Coil Material Thickness：0.4--1.5mm
  • Processing Material：Galvanized Steel
  • Roller Material：Cr12MOV
  • Forming Speed：15-20m,Min
  • PLC Brand：Panasonic
  • Roll Forming Station：18 Stations
  • Operation Type：Touching Screen
  • Machine Weight：3 Tons
  • Machine Color：Yellow and Blue
  • Package：Need One Full Set of 20gp Container to Load
  • Transport Package：Plastic Film
  • Specification：4000mm*800mm*700mm(L*W*H)
  • Trademark：Nexus Machinery
  • Origin：Cangzhou, China
  • HS Code：8455221000
  • Production Capacity：10

Description

C Z Purlin Roll Forming Machine C Z Channel Tile Making MachineRolling speed15-20m/min(not include cutting time)Rolling thickness0.4-1.2mmRaw materialGalvanized steel sheetdimension5500×1600×1500(mm)Effective width Roller stations18 stationsOne stage for embossingRoller material45#forge steel, coated with chromeShaft diameterΦ70mm,material is 45# forge steelTransmissionBy chain1 inchMaterial of chain45# forged steel with frequency quenching, 12AMaterial of cuttingCr12Mov with quench HRC58-62°Tolerance6m+-1.5mmFrameH type steel

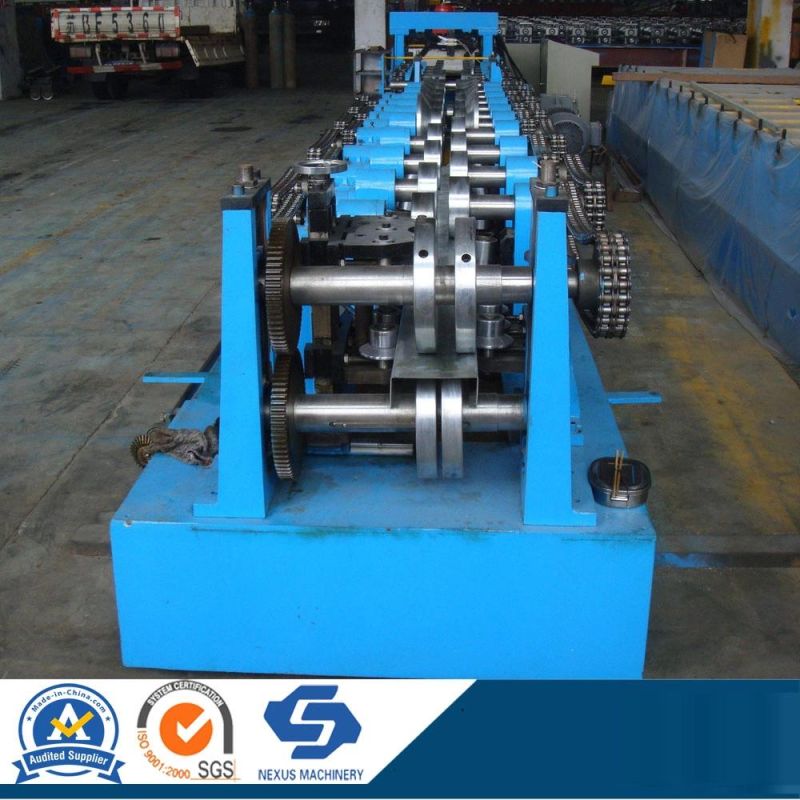

C Z Purlin Roll Forming Machine C Z Channel Tile Making Machine

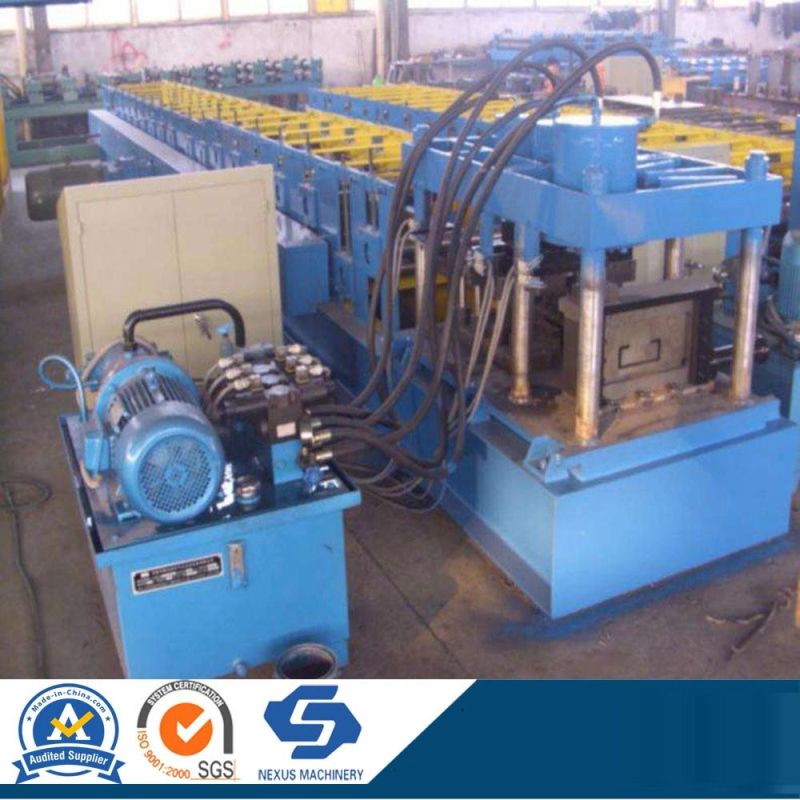

C Z Purlin Roll Forming Machine C Z Channel Tile Making Machine


Electric Element of C Z Purlin Roll Forming Machine C Z Channel Tile Making Machine

C Z Purlin Roll Forming Machine C Z Channel Tile Making Machine

ABOUT US:

Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.


Exhibition Photos:

C Z Purlin Roll Forming Machine C Z Channel Tile Making Machine
Machine Loading Photos:
C Z Purlin Roll Forming Machine C Z Channel Tile Making Machine

Hot-Sale Products you Might Be Interesting:

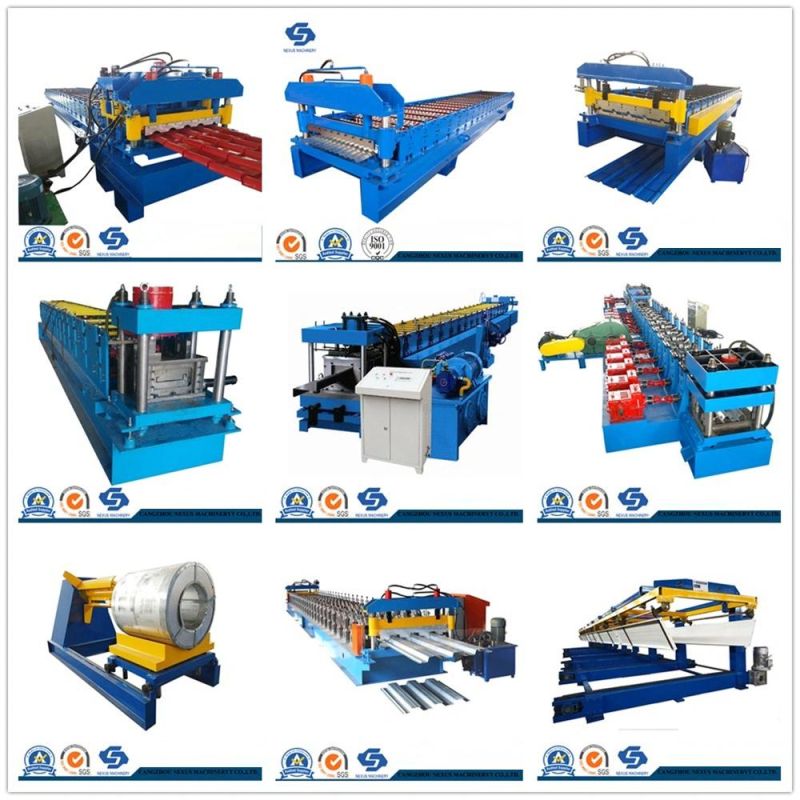

C Z Purlin Roll Forming Machine C Z Channel Tile Making Machine
Our Service:

Pre-Sales Service
Our company has more than 20 years of production experience, experienced technical department will be based on your specific drawings and requirements to design machines, and give you the appropriate technical advice
* Inquiry and consulting support
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
