• Model NO.：highway guardrail machine
• Color：as You Like
• Trade or Factory：Factory
• Guarantee：1 Year
• Life Time：10 Years
• Service：Provide Engineer to Install The Machines
• Brand Name of PLC：as Customer Request
• Drawing：Designed as Customer Request
• Power：38V, 50Hz, 3 Phrase or as Your Like
• Decoiler Type：Manul, Electric, Hydraulic
• Control System：PLC
• Transport Package：Main Machine Nude Packing with Plastic Film
• Specification：5800*1500*1500
• Trademark：KXD
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets Per Month

               Main parameters of highway guardrail machine

Suitable to process

Color steel plate, galvanized sheet,aluminum coils and etc.

2

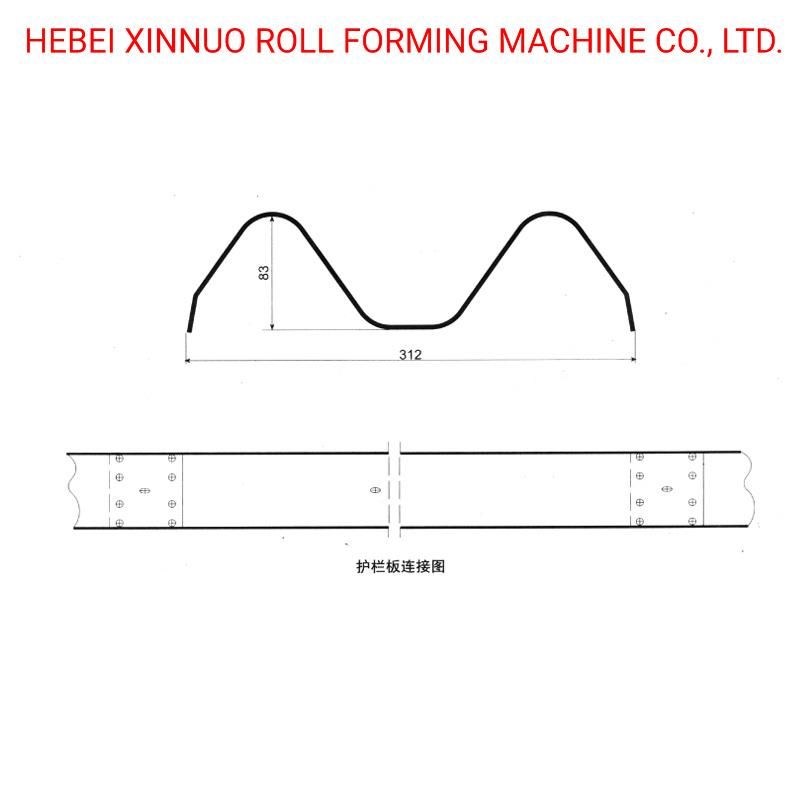

Effective width

310mm

3

Roller station

17 rows forming

7 roller leveling

4

Thickness of feeding material

2.0-2.5 mm

5

Productivity

8-12m/min

6

Rollers' material

45# forging steel

7

Diameter of shaft

100mm

8

Cutting tool material:

 Cr12 with quenched treatment 60-62°C

9

Weight

About 6.9T

10

Size

13.5*1.85*1.6mm

11

Voltage

380V  50Hz 3phases

12

Wall thickness of main forming machine

14mm steel plate

13

Main forming machine body

300 mm H steel

14

Total power

22+11 kw

15

Leveling power

2.2 kw

 Processing technique and deployment

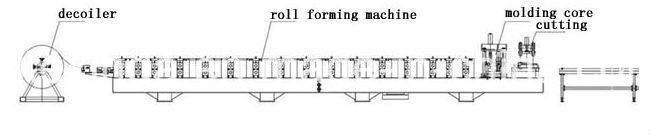

Processes: 10T Hydraulic de-coiler-Leveling device--Punching station--Roll forming machine-PLC system-Hydraulic system-Cutter-Output table

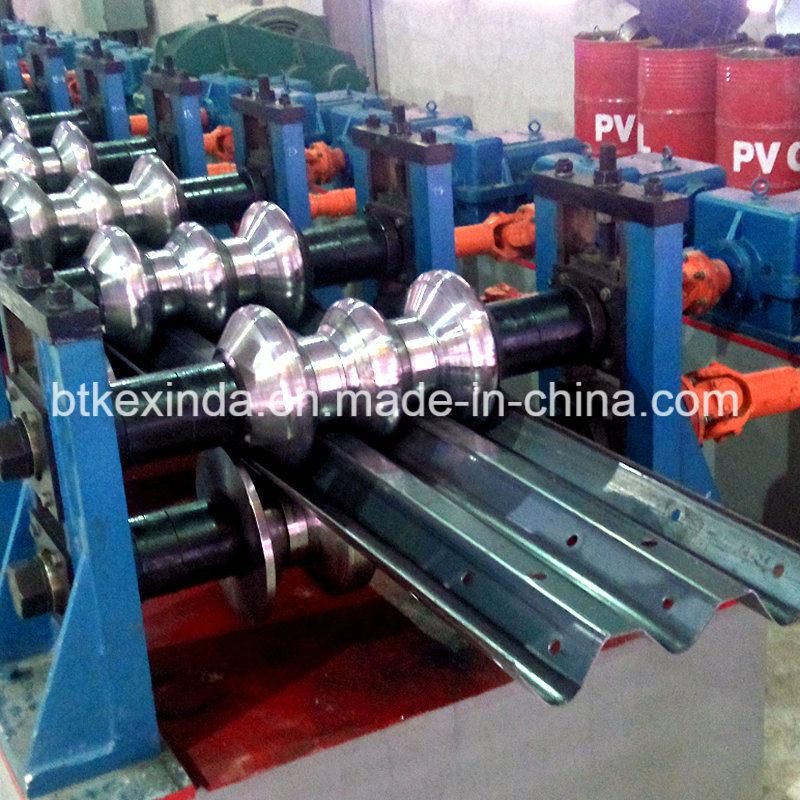

3.The picture of the  highway guardrail roll forming machine

                              4.The production process

Decoiler→Flating→Feeding →Forming→Cut to length→Colletion---(finish goods)

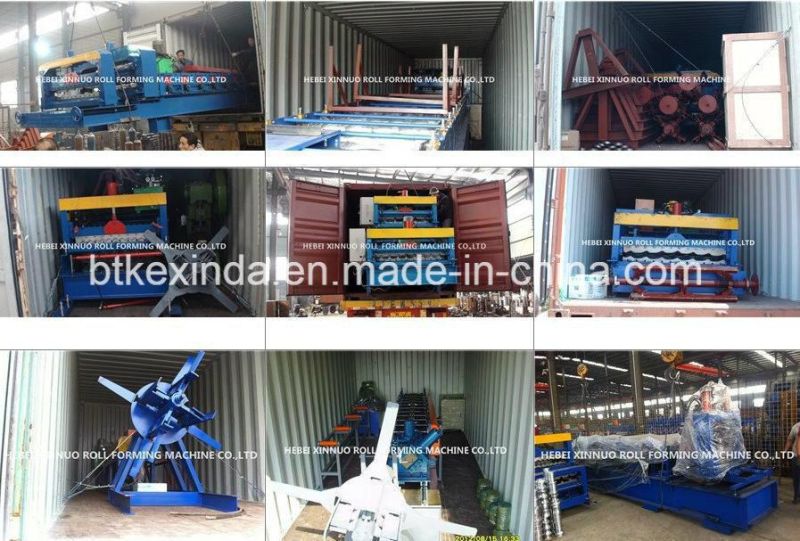

                           5.Packaging & Shipping

  Main machine is nude, the computer control box is packed with wooden frame

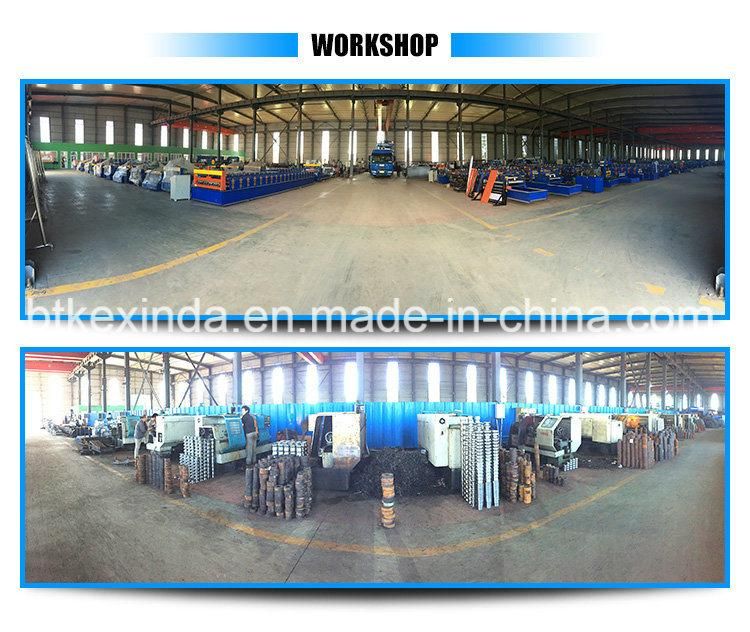

                   6.company overview
7.FAQ

1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2:How to visit our company:

Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.

3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.
