Automatic Cns Double Head Cutting Machine for Aluminum and UPVC Window and Door
JINAN YUEFENG MACHINERY CO., LTD.- Condition:New
- Automatic Grade:Automatic
- CNC or Not:not CNC
- Voltage:380V
- Input Power:4.5kw
- Air Pressure:0.5~0.8MPa
Base Info
- Model NO.:LJZ2-CNS-500x4200
- Air Consumption:200L,Min
- Spindle Speed:3200r,Min
- Cutting Length:360~4200mm(360~5000mm)
- Cutting Width:10~130mm
- Cutting Height:10~300mm
- Cutting Angle:90 45 67.5 Degree
- Saw Feeding Speed:0~3m,Min
- Saw Blade Standard:500X4.4X30xz120
- Overall Dimension:5500(6300)X1700X1600mm
- Transport Package:Plastic Cover or Wooden Cases
- Trademark:YUEFENG
- Origin:Jinan, Shandong, China
- Production Capacity:100 Sets Per Month
Description
Basic Info.
Model NO. LJZ2-CNS-500x4200 Air Consumption 200L/Min Spindle Speed 3200r/Min Cutting Length 360~4200mm(360~5000mm) Cutting Width 10~130mm Cutting Height 10~300mm Cutting Angle 90 45 67.5 Degree Saw Feeding Speed 0~3m/Min Saw Blade Standard 500X4.4X30xz120 Overall Dimension 5500(6300)X1700X1600mm Transport Package Plastic Cover or Wooden Cases Trademark YUEFENG Origin Jinan, Shandong, China Production Capacity 100 Sets Per MonthProduct Description

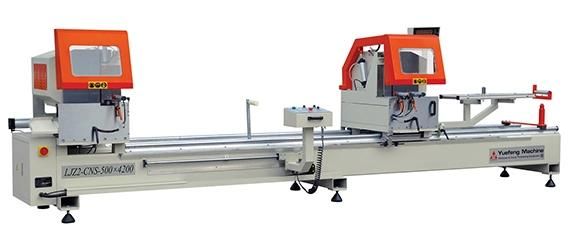

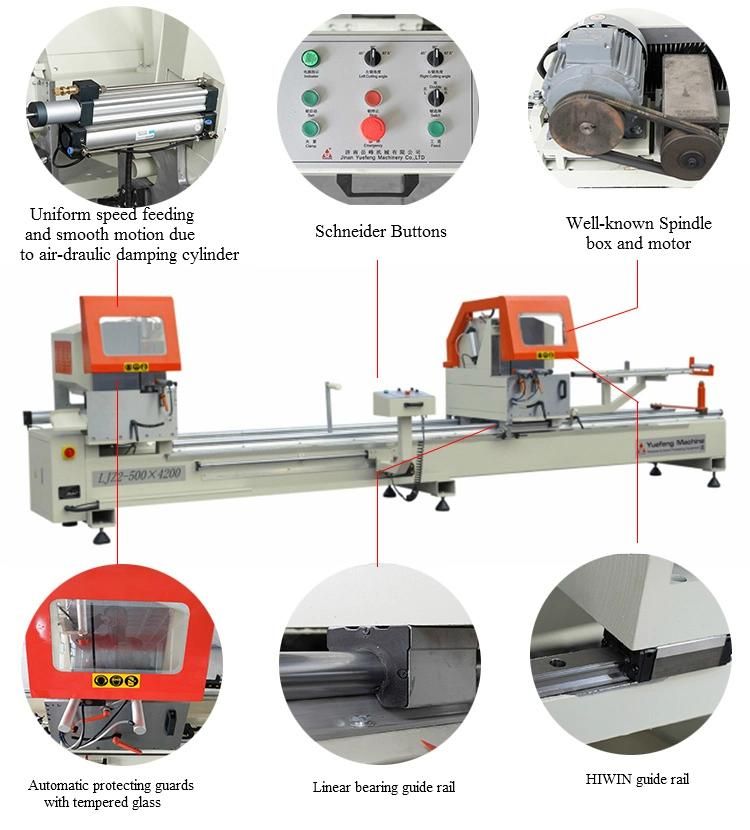

Automatic CNS double head cutting machine for aluminum and upvc window and door
Touched screen and import controlling system adopted with high accuracy and smooth working. Two heads cutting angle 90°45°67.5°(22.5°) are available.
Setting heights of profiles will show the lengths of cutting with different angles (90°, 45°, 67.5°) automatically.
The system can store various of profiles, convenience and efficiency.
Digital display system adopted, with high efficiency and accuracy.
Technical Parameter:
Model | LJZ2-CNS-500×4200(5000) |
Input voltage | 380V 50Hz |
Input power | 4.5Kw |
Air pressure | 0.5~0.8MPa |
Air consumption | 200L/min |
Spindle speed | 3200r/min |
Cutting length | 360~4200mm(360~5000mm) |
Cutting width | 10~130mm |
Cutting height | 10~300mm |
Cutting angle | 90° , 45° , 67.5° |
Saw feeding speed | 0~3m/min |
Saw blade standard | φ500×4.4×φ30×Z120 |
Overall dimension | 5500(6300)×1700×1600mm |
