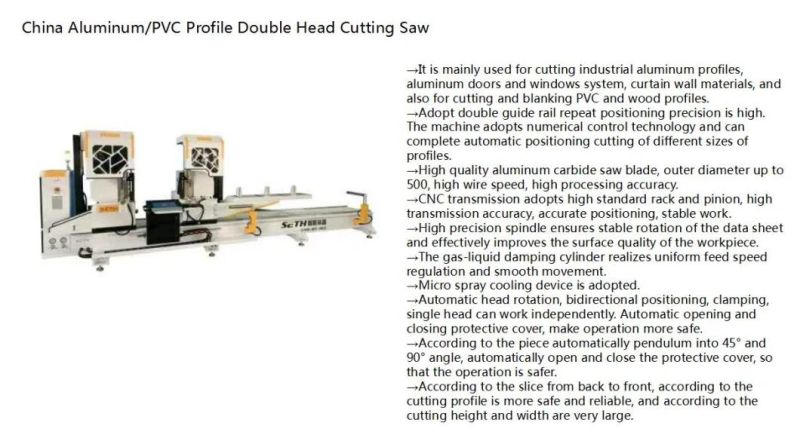

Double Head Cutting Saw UPVC Window Door Miter Assembly Mitre for PVC Profile CNC Automatic Machine Aluminum Aluminium
Jinan Seth Intelligent Equipment Co., Ltd.- Warranty：24 Month
- Condition：New
Base Info
- Certification：ISO, CE
- Automatic Grade：Automatic
- CNC or Not：CNC
- Voltage：380V
- Power Supply：380V,50Hz
- Saw Head Motor：2*3.0km 2840r,Min
- Working Pressure：0.6~0.8MPa
- Air Supply：60L,Min
- Cutting Length：380~4300mm
- Cutting Width：Max.135mm
- Max.Cutting Slop：45° 135X180mm
- Cutting Angle：90° 45°
- Feeding Speed：0~3m,Min
- Saw Blade Specification：Φ500X4.4X30 Z=120
- Overall Dimension：5800X1800X1500mm
- Weight：1750kg
- Transport Package：Wooden Box
- Specification：500*4300-A
- Trademark：Seth
- Origin：Jinan
- Package size per unit product：580.00cm * 180.00cm * 200.00cm
- Gross weight per unit product：2000.000kg
Description
Overview
Product Description

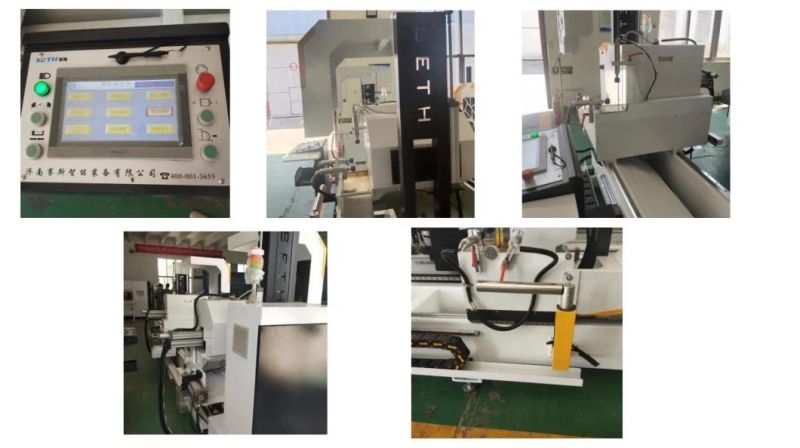

Detailed Photos
1double guide rail
2memory function
3retainer plate
4servo motor
| Power supply | 380v 50hz |
| Saw head motor | 2× 3KW/3000r/min |
| Working pressure | 0.6~ 0.8MPa |
| C Air consumption | 60L/min |
| Cutting length | Max5000mm min 280mm(Short cutting function is the shortest 200mm) |
| Cutting width | Max 150mm |
| Max. Cutting slope | 45°150×170mm 90°150×345mm |
| Max. square tube cutting | 150×200mm |
| Cutting angle | 45 degree 90 degree |
| Feeding speed | continuously viable 0-4m/min |
| Saw blade specification | ø500 × ø30 × 4.4× Z120 |
| dimension | 6550× 1300× 1800 mm |
| weight | 2000kgs |
| Accuracy of repeated fixed length | ≤ 0.1mm |
| Allowance of section cutting angle | ± 3' |
| Flatness of cutting profile | ≤ 0.02m |
| Roughness of cutting profile | Ra12.5μm |
