Qtj4-40 Manual Semiautomatic Cement Interlocking Brick Machinery Hollow Concrete Block Making Machine Price

Shandong Xinming International Trade Co., Ltd.
  • After-sales Service:Our Engineers Be Ale to Come
  • Warranty:2 Years
  • Certification:CE, ISO
  • Customized:Customized
  • Automatic Grade:Semiautomatic
  • Type:Vibration Molding

Base Info

  • Model NO.:QTJ4-40
  • Raw Material:Cement Sand Fly Ash
  • Dimension(L*W*H):1600(L)*1100(W)*2100(H)mm
  • Block Type:Hollow Concrete Brick Machine
  • Method:Hydraulic Pressure
  • Voltage:220V,380V
  • Brick Size:400X200X200mm, 400X150X200mm, 240X112X70mm...
  • Production Capacity (Pieces/8 Hours):3600-4000PCS,8hour for 400*200*200mm
  • Power:8.8kw
  • Cycle:36-40 Second
  • Pallet Size:850*550*20mm
  • Machine Weight:1.1t
  • Land Area:Shaded Area : 20-50m2 Stoking Area:200-500m2
  • Related Accessor:Ies:Jq350 Mixer and 600PCS Pallet
  • Worker:3-4 Workers
  • Products:Hollow,Solid Blocks, Pavers, Houdis, Curb Stone
  • Transport Package:Plywood Box with Iron Frame
  • Specification:1600*1100*2100
  • Trademark:XINMING
  • Origin:Shandong, Linyi
  • HS Code:8474802000
  • Production Capacity:50000sets,Year

Description

QTJ4-40 concrete block making machine
1.QTJ4-40 is a semi-automatic block making machine,which can make various brick types.
2.Its lifting motor has its own braking function and has strong braking performance;the limit card can control the height of the brick.
3.It has four guide columns,which ensure that the mold does not deviate;the vibration platform makes the mold box bear uniform force,the vibration force is large and uniform,and the brick density is good.
4.Mechanical transmission of finished bricks,steel plates are used for transmission,and steel plates are stable and not easy to get stuck.

Qtj4-40 Manual Semiautomatic Cement Interlocking Brick Machinery Hollow Concrete Block Making Machine Price
Technical Specification Power8.8KWCycle36-40 SecondPallet Size850*550*20mmMachine Size1600(L)*1100(W)*2100(H)mmMachine Weight1.3TLand AreaShaded Area : 20-50m2    Stoking Area:200-500m2ProductsHollow/Solid Blocks, Pavers, Houdis, Curb StoneWorker3-4 Workers Related AccessoriesJQ350 Mixer and 600PCS Pallet

Qtj4-40 Manual Semiautomatic Cement Interlocking Brick Machinery Hollow Concrete Block Making Machine Price

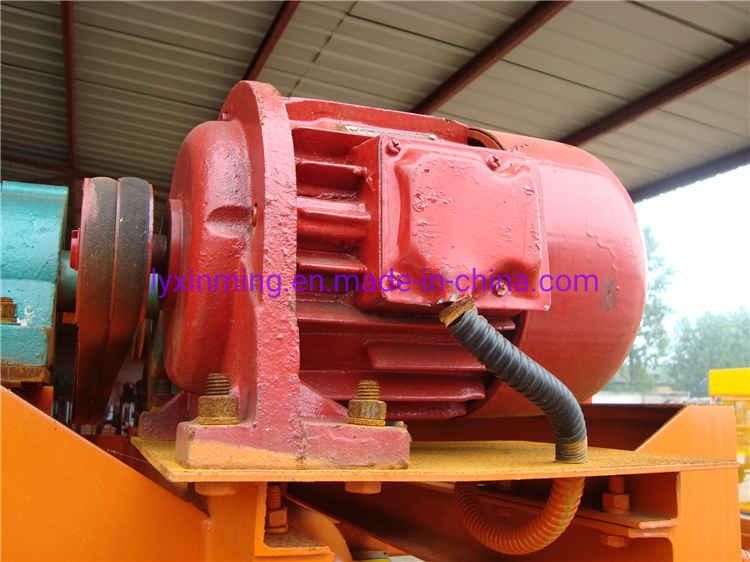

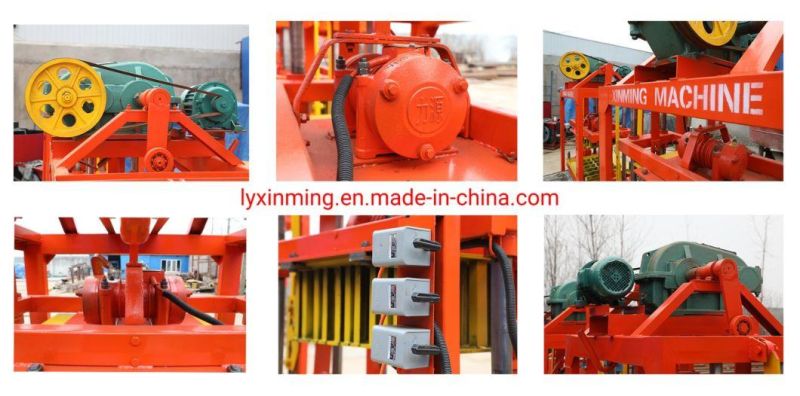

  Main Parts  Qtj4-40 Manual Semiautomatic Cement Interlocking Brick Machinery Hollow Concrete Block Making Machine PriceElectrical Machinery
Function:Use frequency conversional control Technology,which controls the block making
Advantage:
  1)Frequency Conversion Control:guarantees the precise and parallel movement between tamper head and mould,protects the products from transfiguration;increases the production rate by improving the vibrating efficiency;
   2)Controls the instantaneous start and stop of the motors,to protect the motor from over-heating caused by constant working

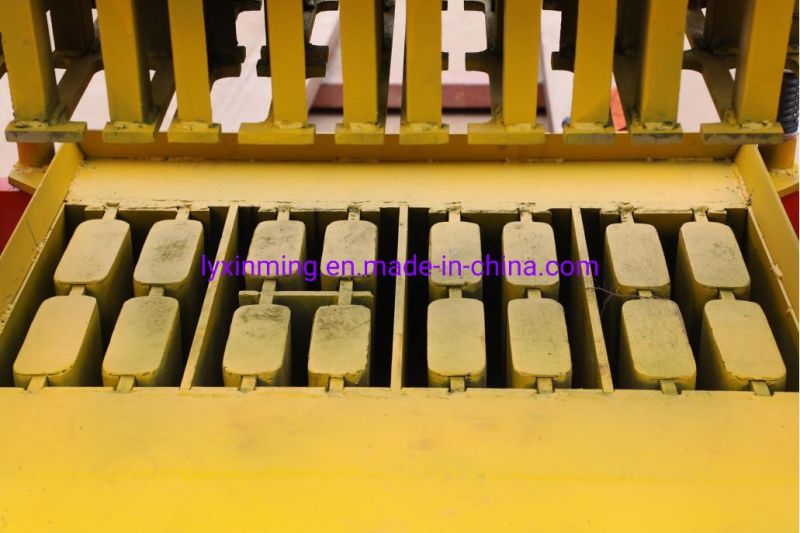

Block mould
Function:Comprise an upper die and a lower die,and that interaction between the upper die and the low die prevents the periphery of the punched material from being deform.
Advantage:After carbonization and wire cutting technology,the mold is more wear-resistant and has a longer service life.

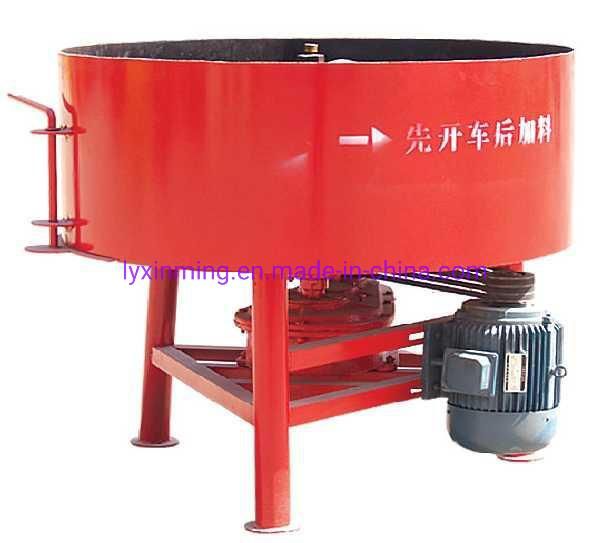

Qtj4-40 Manual Semiautomatic Cement Interlocking Brick Machinery Hollow Concrete Block Making Machine PriceQtj4-40 Manual Semiautomatic Cement Interlocking Brick Machinery Hollow Concrete Block Making Machine PriceMixer
Function:The rotating shaft drives the blades to shear,extrude and overturn the shaking in the barrel,so that the batch is uniformly mixed in the violent relative movement.
Advantage:Uniform and thorough stirring,no residue,simple structure,simple operation,fast discharging speed,firmness and durability,long service life and convenient maintenance.

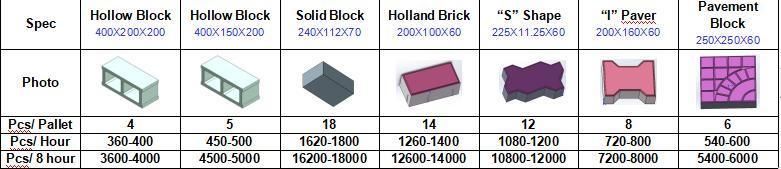

 Production CapacityQtj4-40 Manual Semiautomatic Cement Interlocking Brick Machinery Hollow Concrete Block Making Machine Price

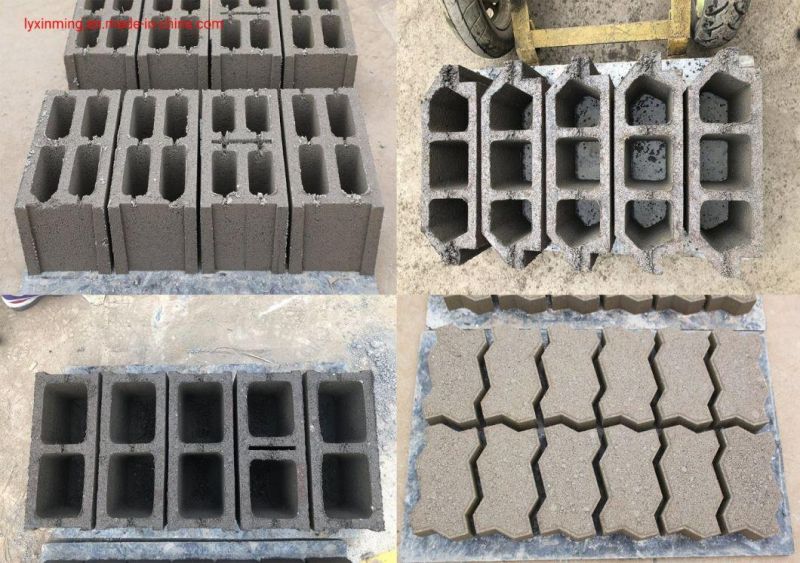

 Production results
Qtj4-40 Manual Semiautomatic Cement Interlocking Brick Machinery Hollow Concrete Block Making Machine Price
Qtj4-40 Manual Semiautomatic Cement Interlocking Brick Machinery Hollow Concrete Block Making Machine Price


  Package&Delivery
1.Packing:Seal the whole body with plastic wrap and put it in ironform plywood box.
2.Terms of delivery:From our factory to Qingdao Port,China
3.Guarantee:A warranty period for the Machine is 12 months.


Qtj4-40 Manual Semiautomatic Cement Interlocking Brick Machinery Hollow Concrete Block Making Machine Price
 Our Services
1.Before-sale services:
1)Guide customers to choose the best appliable machine type;provide the advanced,energy-saving and practical technological process.
2)We are responsible for the process chart and design.
2.Sale services:
1)Products must be inspected strictly before selling.
2)In accordance with the agreements stipulated in the contract.
3)We will organize delivery.
3.After-sale services:
1)Our company will send professional engineers to guide eith device installation,debugging and training operators until customers are fully satisfied.Moreover,we will design and manufacture products,according to the special requirements of customers.
2)Because of the problems caused by quality rather than human factors,we repair them free of charge.The quality guarantee period for machines is one year except the wearing parts.
