• Model NO.：LJZ2-CNC-450X4600
• Voltage：380V
• Process Usage：Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
• Numerical Control：CNC,Mnc
• Performance Classification：MID-Range CNC Machine Tools
• After-Sales Service：Lifetime Maintenance Service
• Application：Window
• Specification：5200*1800*1500 mm
• Trademark：Zunbo
• Origin：China

Basic Info.

Model NO. LJZ2-CNC-450X4600 Voltage 380V Process Usage Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools Numerical Control CNC/Mnc Performance Classification MID-Range CNC Machine Tools After-Sales Service Lifetime Maintenance Service Application Window Specification 5200*1800*1500 mm Trademark Zunbo Origin China

Product Description

Product Description:

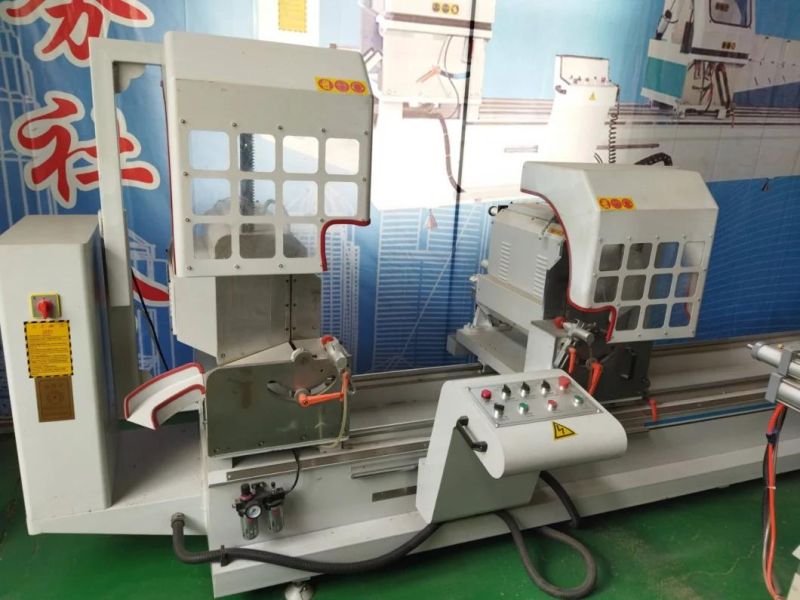

Model: LJZ2-CNC-450X4600
Mainly used for cutting of aluminum alloy curtain wall materials and window materials, and also for cutting of plastic profiles.
Using hard alloy saw blades, the outer diameter can reach 450, the line speed is high, and the machining accuracy is high.
The feed of the right handpiece adopts high-precision rack motion, with high transmission accuracy, accurate positioning and stable operation.
High-precision spindle makes the saw blade rotate stably
The gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement
Use micro spray cooling device to save the processing cost of doors and windows (optional)
When the machine is working, the two saw blades can cut at the same time or separately.
The saw blade moves from back to front, and the cutting profile is safer and more reliable, and the sawing height and sawing width are both large.
The saw blade can be automatically placed into the required angle of -45 +45° and 90°.
It can be equipped with digital display and automatic cutting corner code function


Technical Parameter:

Power source: 380V 50HZ
Saw head motor: 2× 2.2KW 3200r/min
Working pressure: 0.6~0.8MPa
Air consumption: 60L/min
Cutting length: Max 3700mm min 550mm
Cutting width: max 120mm
Maximum cutting bevel: 45°120×170mm 90°120×200mm
Cutting angle: 90°, 45° -45
Feed speed: stepless speed regulation 0-3m/min
Saw blade specifications: ø450 × ø30 × 4.4× Z120
Dimensions: 5200× 1800× 1500 mm
Weight: 1050kg Tolerance of profile cutting angle: ± 5
Flatness of cutting profile: ≤ 0.1m
Cutting surface roughness: Ra12.5μm
