• Model NO.：QT10-15
• Rated Pressure：21MPa
• Main Vibration：Platform Vibration
• Color：as Your Request
• Raw Material：Crushed Stone, Cement, Cinder, Clay etc
• Vibration Frequency：2800-4500r ,Min
• Molding Cycle：15-20s
• Overall Power：44kw
• Equipped with Mixer：Js750
• Transport Package：Nude Package or Plastic Packing or Wooden Package
• Specification：9350*2320*2950mm
• Trademark：SHIYUE
• Origin：Shandong, China
• HS Code：8474802000
• Production Capacity：3600 Sets,Set

Basic Info.

Model NO. QT10-15 Rated Pressure 21MPa Main Vibration Platform Vibration Color as Your Request Raw Material Crushed Stone, Cement, Cinder, Clay etc Vibration Frequency 2800-4500r /Min Molding Cycle 15-20s Overall Power 44kw Equipped with Mixer Js750 Transport Package Nude Package or Plastic Packing or Wooden Package Specification 9350*2320*2950mm Trademark SHIYUE Origin Shandong, China HS Code 8474802000 Production Capacity 3600 Sets/Set

Product Description

Main Parameter

Overall Dimension	9350*2320*2950mm
Vibration Frequency	0-60HZ
Main Vibration Form	Platform vibration
Moulding Mode	Load automatically, vibration moulding
Pallet Size	1100*900mm
Molding Cycle	10-15s
Overall Power	44KW
Vibration Force	100KN
Total Mass	12T
Demolding Method	Hydraulic
General Water Consumption	12T/Day
Factory Area	1200m²
Applied Products	Concrete blocks, hollow/solid blocks, pavers, interlocking blocks, curbstone, colored pavers, etc.
Raw Material	Crushed stone, sand, cement, dust, and fly ash, gravel, slag, ect.

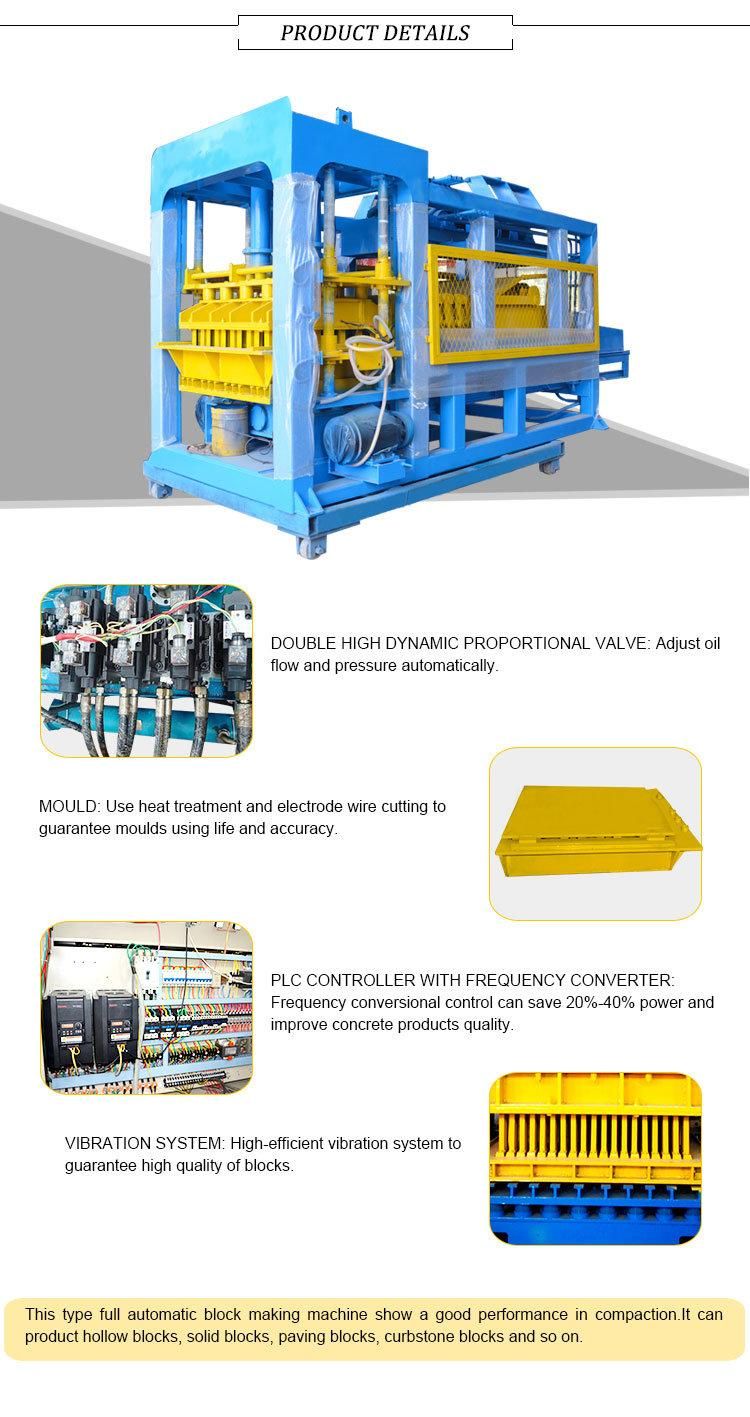

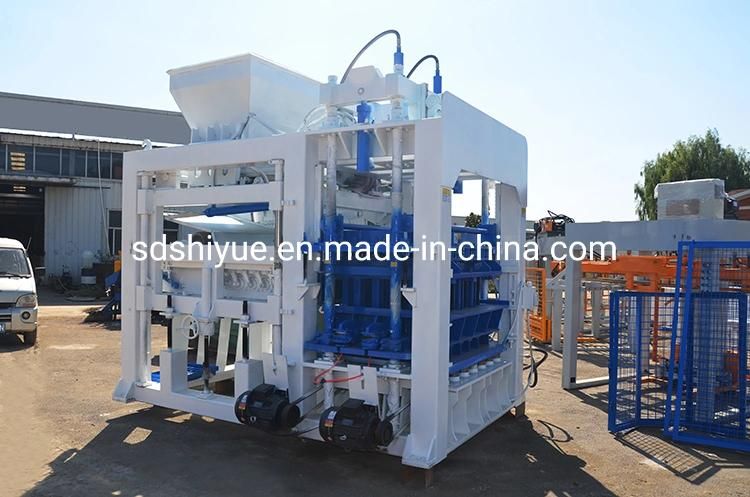

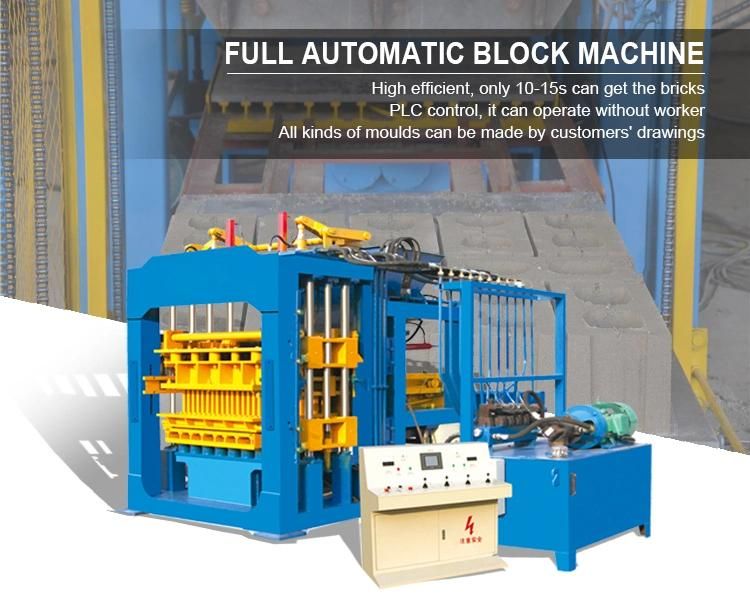

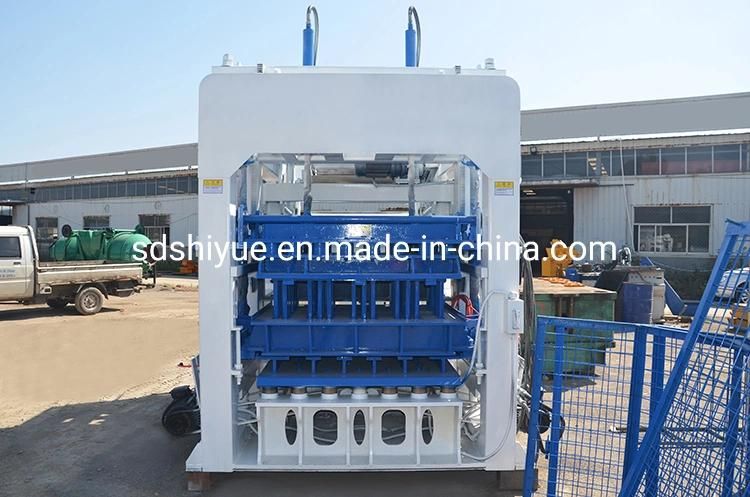

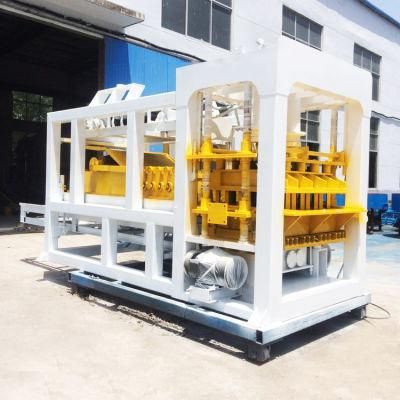

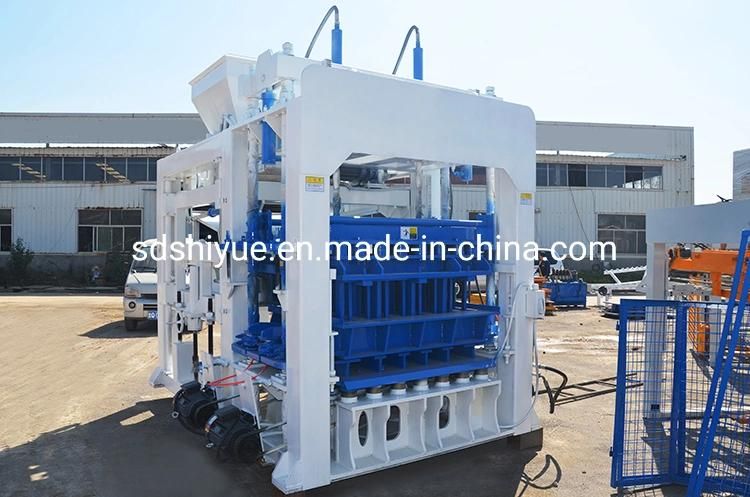

Machine details

Block capacity

Item	Size	Quantity per mold	Cycle moulding	Per hour	Per day
Hollow brick	400*200*200	10pcs	20-25s	1440-1800pcs	14400-18000pcs
Porous brick	240*115*90	24pcs	15-20s	4320-5760pcs	43200-57600pcs
Standard brick	240*115*53	52pcs	15-17s	11011-12480pcs	110110-124800pcs

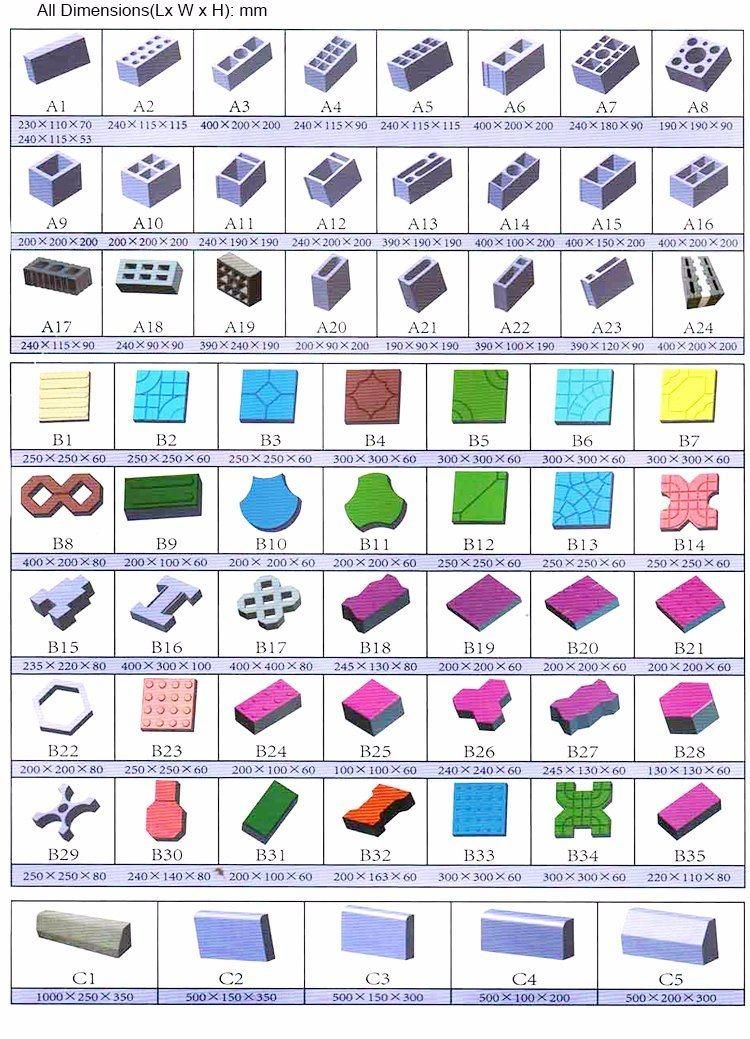

Block sample

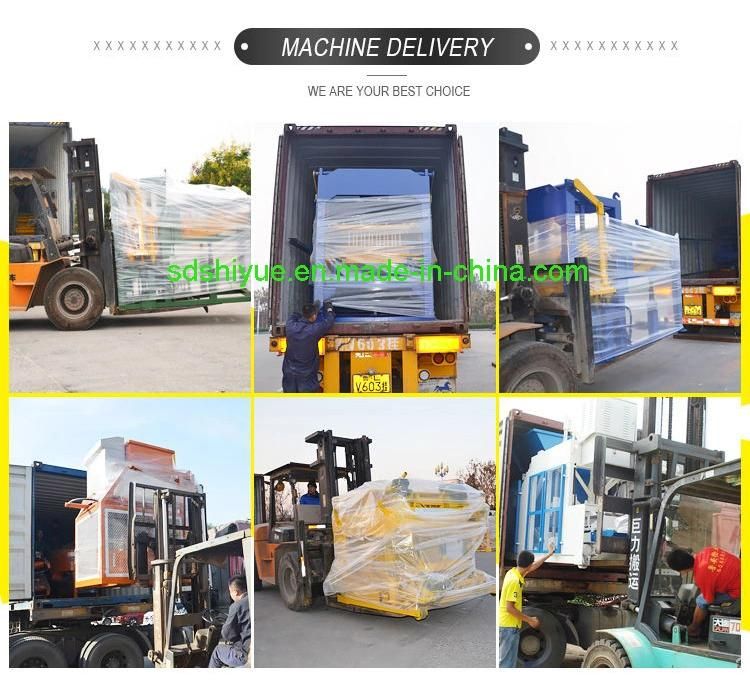

Shipping and delivery

1. The whole brick machine production line equipment is mainly the full container sea shipping,

2. Brick machine equipments finish manufacturing and testing, next to clean up, and then do another paint protection,

3. Before shipment to use plastic film winding, wrapped the entire brick machine in case of water or moisture,

4. Then load brick machines into the container by forklift,

5. During loading to tighten the machine with reinforcement ring in container, so as to avoid the damage by transport bumps on the brick machine.

Our service

Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of build factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material,
capacity and the size of brick)
(3) Welcome to visit our factory and production line anytime

Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time

After-sale:
(1) The engineer will guide to carry out the plant at the clients side.
(2) Set up, fix,and operate
(3) Will not stop training the operator until they are satisfied at clients side.
(4) 24 hours service
(5) Recall clients regularly ,get feedback in time,keep well communication with each other.

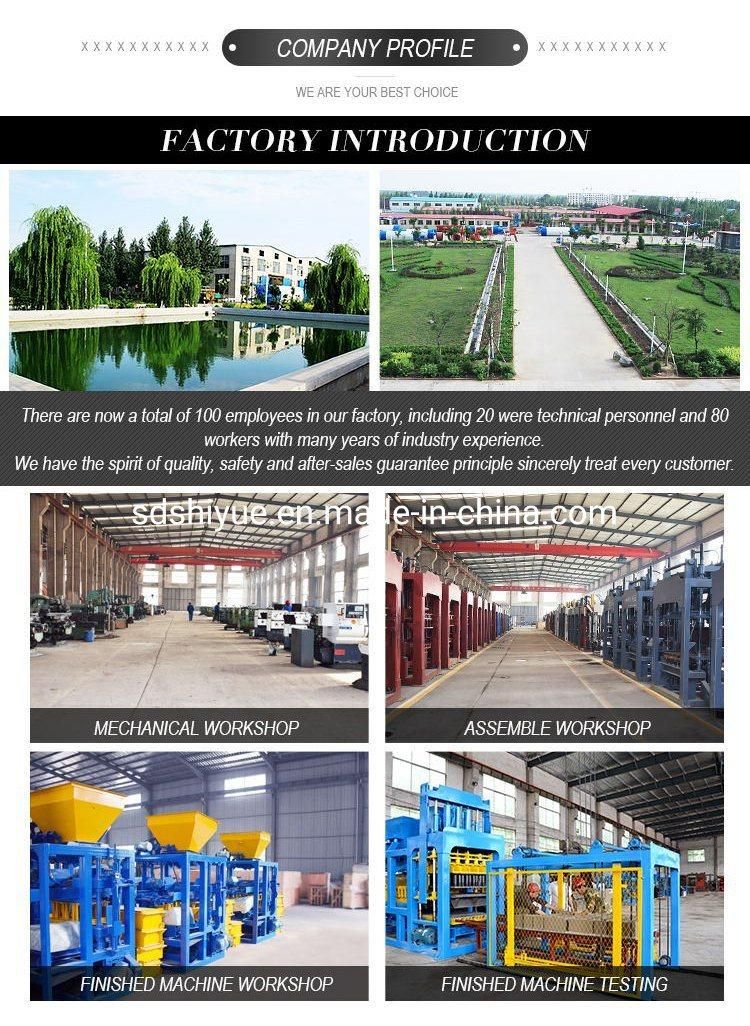

Our factory

Shiyue Machinery is located in Linyi,Shandong. With advanced technologies and rich experiences on manufacture. We have specialized in stationary block machine,mobile block machine, clay block machine, crusher,pipe making machine, pole making machine,concrete mixing plant etc.After 27-year's effort,we have receive good reputation from many countries such as India, the United States, Russia, the United Kingdom, the Philippines, Canada, Australia, South Africa, Pakistan, Brazil, Malaysia, Sri Lanka, Mexico, Nigeria, Kenya etc.What's more,our machines have won'Product patent award',and 'product innovation award' and so on.Shiyue machinery your best choice for your business



FAQ

1.Question:Does the machine could change mold?
Answer:Yes,this machine could change different kinds of mold.The machine could produce interlock, paver size depending on your local requirements.
2.Question:What is the electric voltage and rate?
Answer:Our local electric voltage is 380v, 3phase, 50hertz, the electricl voltage can be revised according to local situation.
3.Question:How about the service life of this machine?
Answer:This machine could work for about 6-10 years if your side maintain well.
4.Question:What's your machine warrenty?
Answer:12 months guarantee,we send more spare parts for you when shipping machine to you.
5.Question: The mode of transportation.
 Answer: by sea, by land or by rail according to customer local need
