Aluminum Window Curtain Wall Profile Cutitng Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Warranty:1year
  • Condition:New

Base Info

  • Model NO.:LJZ2-CNC-500x4200
  • Certification:CE
  • Automatic Grade:Automatic
  • CNC or Not:CNC
  • Voltage:380V
  • Input Power:6kw
  • Air Pressure:0.5~0.8MPa
  • Air Consumption:200L,Min
  • Spindle Speed:3200r,Min
  • Cutting Length:360~4200mm(360~5000mm)
  • Cutting Width:10~130mm
  • Cutting Height:10~300mm
  • Cutting Angle:90 45 67.5 Degree
  • Saw Feeding Speed:0~3m,Min
  • Saw Blade Standard:500X4.4X30xz120
  • Overall Dimension:5500(6300)X1700X1600mm
  • Transport Package:Plastic Cover or Wooden Cases
  • Trademark:YUEFENG
  • Origin:China
  • HS Code:8461500090
  • Production Capacity:100 Sets Per Month
  • Package size per unit product:68.00cm * 68.00cm * 68.00cm
  • Gross weight per unit product:45.000kg

Description

Basic Info.

Model NO. LJZ2-CNC-500x4200 Certification CE Automatic Grade Automatic CNC or Not CNC Voltage 380V Input Power 6kw Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Spindle Speed 3200r/Min Cutting Length 360~4200mm(360~5000mm) Cutting Width 10~130mm Cutting Height 10~300mm Cutting Angle 90 45 67.5 Degree Saw Feeding Speed 0~3m/Min Saw Blade Standard 500X4.4X30xz120 Overall Dimension 5500(6300)X1700X1600mm Transport Package Plastic Cover or Wooden Cases Trademark YUEFENG Origin China HS Code 8461500090 Production Capacity 100 Sets Per Month

Packaging & Delivery

Package size per unit product 68.00cm * 68.00cm * 68.00cm Gross weight per unit product 45.000kg

Product Description

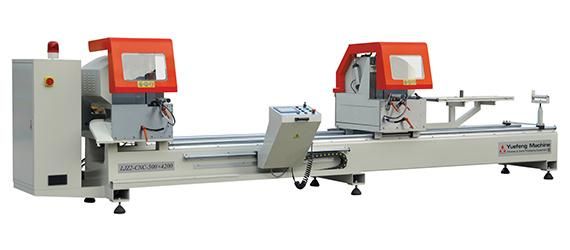

Double head automatic cnc cutting machine for aluminum profile
Aluminum Window Curtain Wall Profile Cutitng Machine
1. Used for cutting profiles such as aluminum profile and curtain wall, two heads cutting angle 90°/45°/67.5°(22.5°) are available.
2. Cutting dimension controlled by screw, with high accurate driving and locating. Right head can achieve the setting location automatically. Right head feed the profiles automatically; can also use for cutting aluminum connectors.

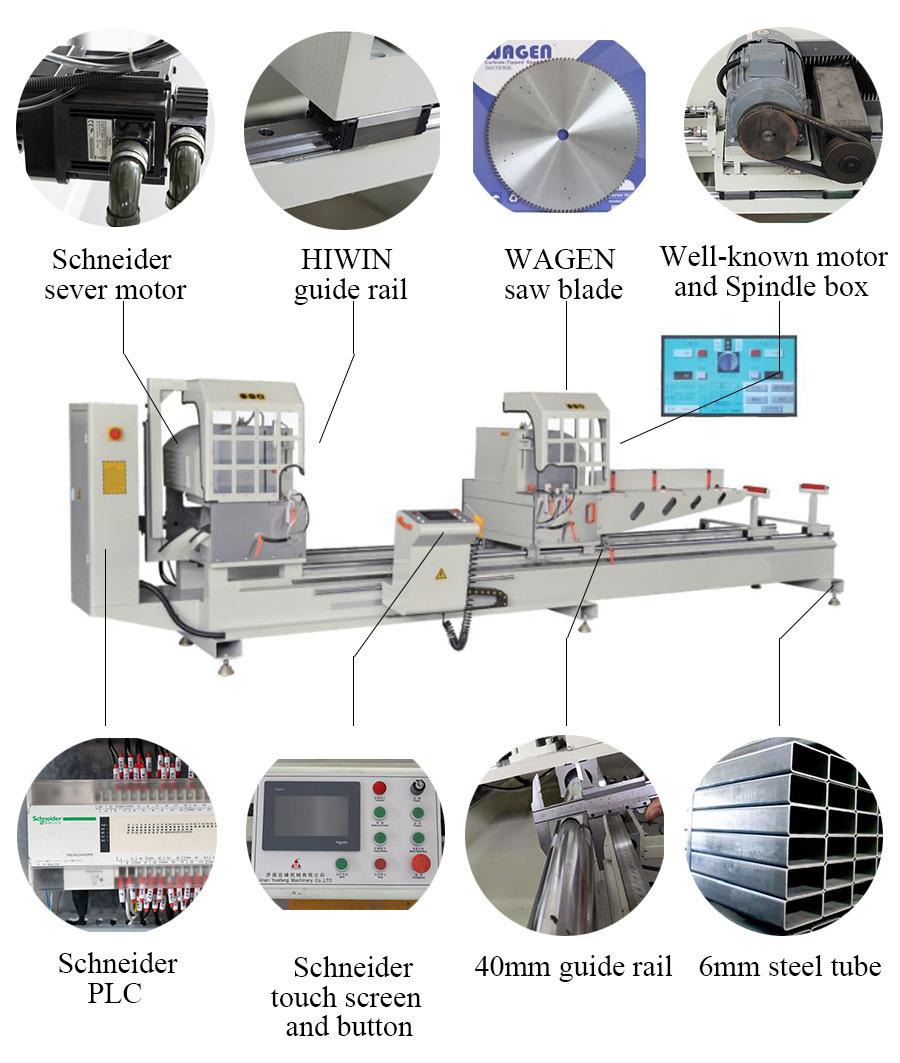

3. Japan CNC system adopted, which include PLC, touched screen, servomotor, and servodriver, Photo electrical switch, and Photo electrical cells etc. Complete Japan CNC system results high accuracy and smooth working.
4. Uniform speed feeding and smooth motion due to air-draulic damping cylinder.
5. Saw blade feed system adopts imported linear guide kinematic pair results high accuracy.
6.Automatic protecting guards result convenience and safety.


Technical Parameter:
ModelLJZ2-CNC-500×4200(5000)
Input voltage380V 50Hz
Input power6.0Kw
Air pressure0.5~0.8MPa
Air consumption200L/min
Spindle speed3200r/min
Cutting length400~4200mm(400~5000mm)
Cutting width10~130mm
Cutting height10~300mm
Cutting angle90° 45° 67.5°
Saw feeding speed0~3m/min
Saw blade standardφ500×4.4×φ30×Z120
Overall dimension5500(6300)×1700×1600mm

Aluminum Window Curtain Wall Profile Cutitng Machine
Aluminum Window Curtain Wall Profile Cutitng Machine
Aluminum Window Curtain Wall Profile Cutitng Machine
Aluminum Window Curtain Wall Profile Cutitng MachineAluminum Window Curtain Wall Profile Cutitng Machine

RFQ:

1.Are your company a trading one or a factory?

Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
