• Model NO.：1000 glazed roll forming machine
• Color：as Required
• Warranty：12 Months
• Weight：5t
• Power：4kw
• Transport Package：Main Machine Is Nude
• Specification：8.0*1.6*1.5m
• Trademark：kexinda
• Origin：China-Mainland
• HS Code：84552210
• Production Capacity：1 Set Per Month

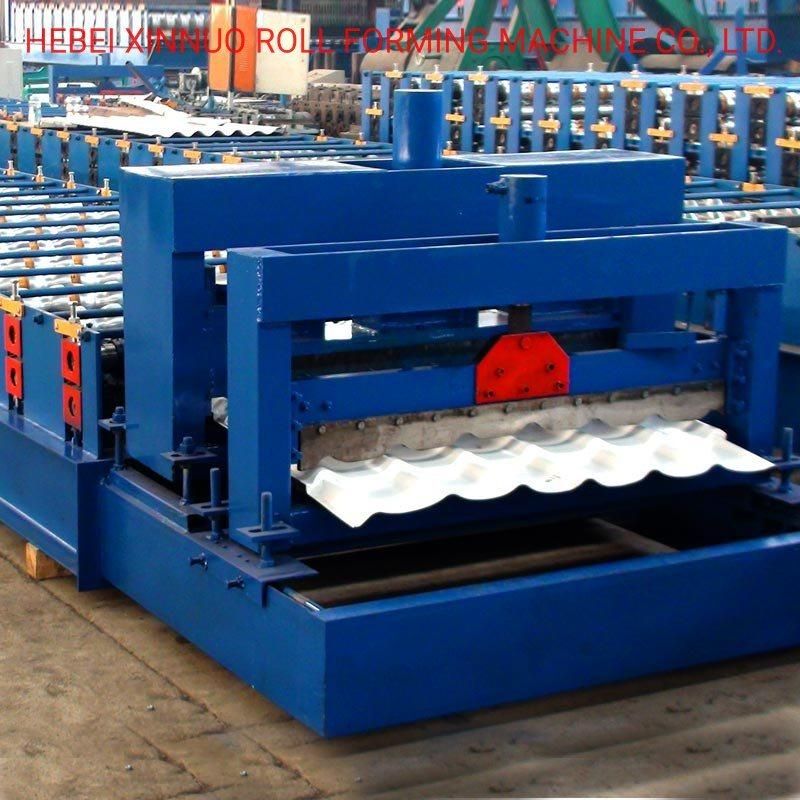

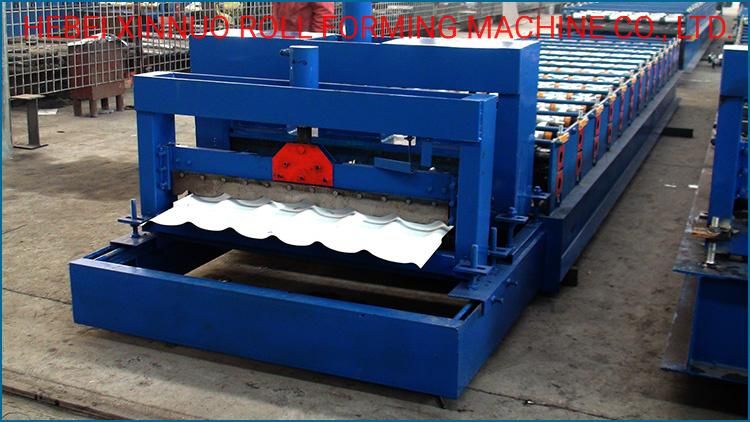

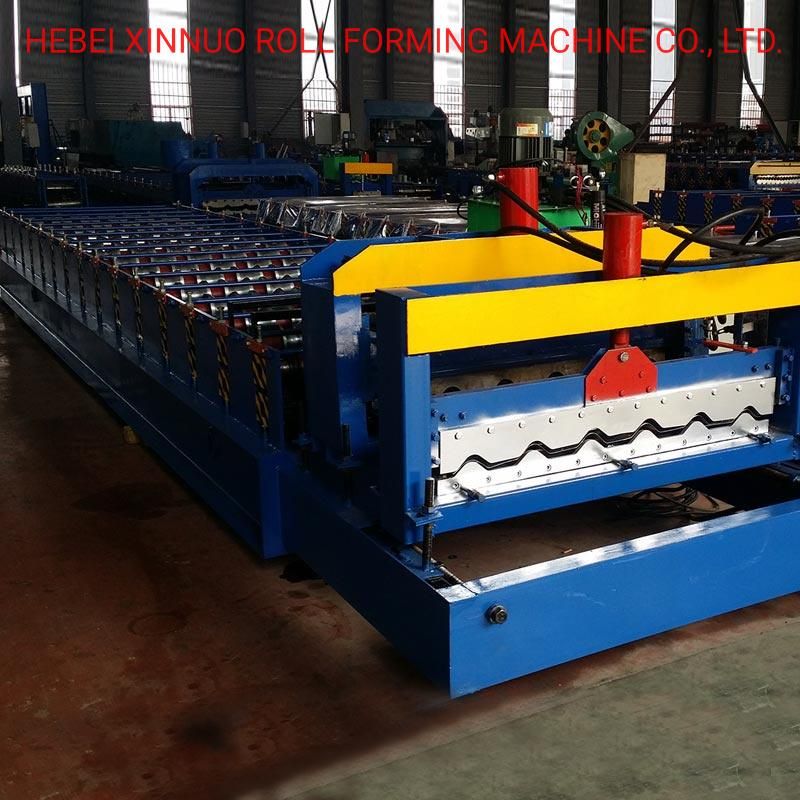

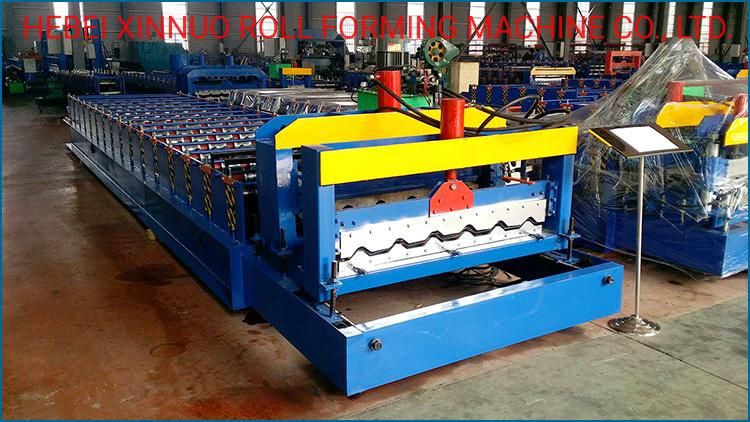

No.main parameter of 1000 glazed tile roll forming machine1Suitable to processColor steel plate2Width of the plate1250mm3Rollers14 rows4Dimensions8.0*1.6*1.5m5Power4+3kw6Thickness of the plate0.3-0.8mm7Productivity8-12m/min8Diameter of the rollerΦ75mm9WeightAbout 5.0 T10Voltage380V 50Hz 3phases11Rolling materialCarbon Steel 45#12Material of the cutting plateCr1213Processing precisionWithin 1.00mm14Control systemPLC control
ADVANTAGE


	Our machine	Influence of the machine
Main forming  machine body	High strength H350 or H400 steel.  machine through milling machine after  welding	Sturdy and durable, ensure the plate standard
Material of the  roller	High grade No.45 forged steel	Ensure the forming effect of  the panel and the use age will  be longer,the surface of the panel
Material of the  cutting	GCr12 steel with quenched treatment	Cutting is out of shape not easily  and use age will be longer,the panel  size precision
Material of the  active shaft	High grade solid No.45 carbon steel,  Shaft diameter is 72mm.	Improve the integrated mechanic  feature of the shaft and keep product  standard
Control system	PLC control system,some elements are  imported from Japan and Germany	Machine become more accurate and  more stable



ABOUT US

Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.


FAQ

1:How to play order:
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can
pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
 4.What's the after- sale service:
we sent technician to your country to fix the machine.The buyer should bear all the cost including:
visa, round trip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
5.How about the warranty: 12 months limits warranty
