• Model NO.：Hr1-20
• Motor：Siemens
• Mold：Changeable,Steel Casting Molds
• Power：3kw
• Brick Raw Material：Clay,Crushed Stone, Coal Cangue
• Voltage：380V
• After-Sales Service：Engineers Available to Service Machinery Overseas
• Colour：According to Your Demand
• Specification：CE, BV , SGS , ISO9001: 2008
• Trademark：HENRY
• Origin：Shandong
• HS Code：8474802000
• Production Capacity：180 PCS of 230X220X115mm Per Hour

Basic Info.

Model NO. Hr1-20 Motor Siemens Mold Changeable,Steel Casting Molds Power 3kw Brick Raw Material Clay,Crushed Stone, Coal Cangue Voltage 380V After-Sales Service Engineers Available to Service Machinery Overseas Colour According to Your Demand Specification CE/ BV / SGS / ISO9001: 2008 Trademark HENRY Origin Shandong HS Code 8474802000 Production Capacity 180 PCS of 230X220X115mm Per Hour

Product Description

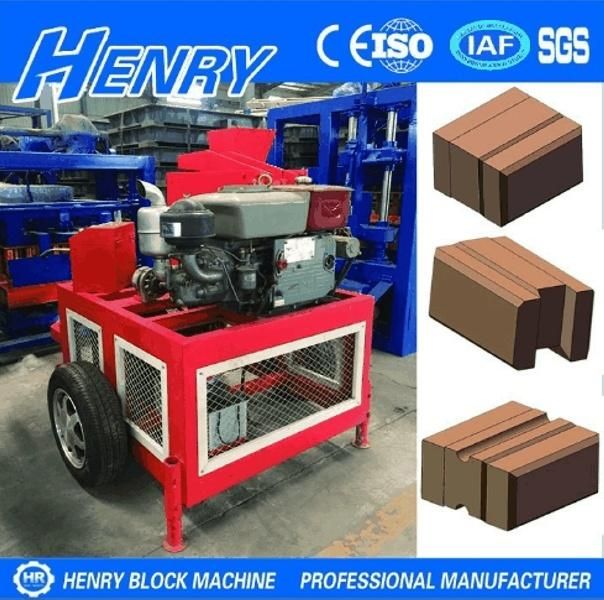

Soil Brick Making Machine Hr1-20 Eco Interlocking Brick Making Machine




Product Description

This machine has two types,electric motor and diesel engine power version,having different experience for customers.It is particular designing for producing hydraform bricks.The machine is easily operated,professional performance,durable equipments, fits small and middle investment.

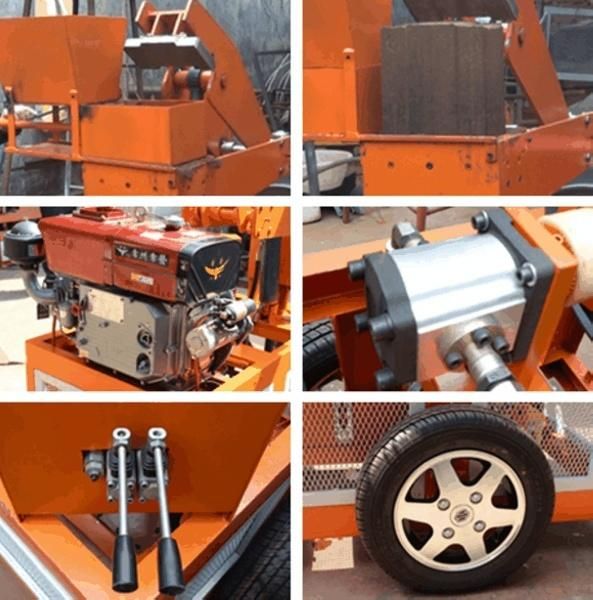

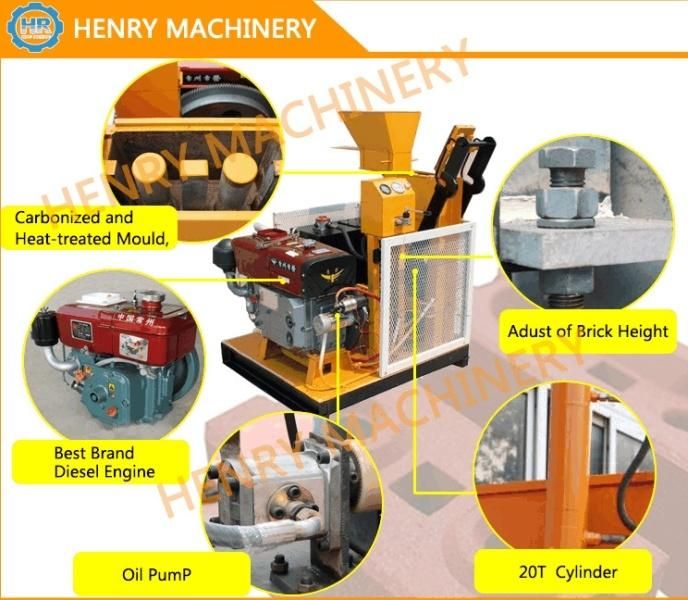

Machine details

1. Material hopper. It can reserve 8-10 shift material, saving feeding time.
2. Off molding cylinder. Off molding mechanically, saving labor.
3. Brick molding. With screw to be connected in order to change molding more easily.
4.Controlling cabinet. It's possible to start immediately with switch, oil meter showing pressure timely.
5. Diesel engine power. We use the world famous brand- CHANGCHAI engine.
6. Shift wheel, making it available to make bricks where needed.
7. Towing hook. It is easy to be transported with a vehicle.

What's the feature of Soil Brick Making Machine Hr1-20 Eco Interlocking Brick Making Machine?
1.Save up to 30% in construction costs
2.Faster and Easier construction
3.High Quality firebrick like finish
4.After sales support to ensure NO "down time" on your site
5.Low machine maintenance costs
6.Mobile machines enable you to make blocks where you need them

What Specifications of our Soil Brick Making Machine Hr1-20 Eco Interlocking Brick Making Machine?


Features	Mobile, with tow-hitch, tyres and pan mixer  for a better quality mix
Power source	Diesel (electric motor available)
Dimensions	2.95 x 1.7 x 1.6m
Weight	1560 kg excluding crating
Operating staff	3-5 staff
Moulds	Machines come standard with 220mm  interlocking block mould  which requires  minimal mortar

 Block capacity and sample

Block size	Pcs/mould	Pcs/hour
250x125x100mm	1	500-600
125x125x100mm	2	1000-1200
300x150x100mm	1	500-600
150x150x100mm	2	1000-1200
300x150x100mm	1	500-600
300x150x100mm	1	500-600

The Details  of Soil Brick Making Machine Hr1-20 Eco Interlocking Brick Making Machine




About us

          Henry Industrial Co.,Ltd is a big  and famous Construction Company in China.We are manufacturer of concrete block making machine and clay interlocking brick machine for 23 years.Our machines have a high quality and  get Certified ISO 9001: 2009 and CE standard by Eurotech Germany.   As so far,we have applied for 23 patents,the patent technology guatantee equipment to be rationality,stability,reliability,customers have been widely praise and acclaim on it.Company products exported to Europe and the United States,Africa,the Middle East and more than 100 countries and regions.



Our sevice

     we have go big after sale service  team , they are all the experience technician , over 20 workers have the passport , they all have the oversea experience. So we not only have good service in the pre service , we also think highly of the after sale service.

Pre-sale:
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity
and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line any time, if you need, we can Make invitation
letter for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer  training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other

Guarantee

(1)We can supply one year guarantee period for our brick making machines,if the client have the question ,they could call our service department number any time , we will supply per day 24 hours service .
(2)Within one year ,if the client meet the unsolvable questions ,we could fly to client place to help.
