• Model NO.：QMY4-45
• Machine Material：Q235r Steel
• Color：as Customer Request
• Vibration Type：Mould Vibration
• Electricity Power：7.5kw
• Vibration Frequency：Max 4000r,Min
• Shaping Cycle：40-45s
• Condition：New
• Guarantee：2 Years
• Pallets：No Need
• Transport Package：Plywood Box with Iron Angle
• Specification：235steel for machine frame
• Origin：China
• HS Code：8474802000
• Production Capacity：50sets , Month

Basic Info.

Model NO. QMY4-45 Machine Material Q235r Steel Color as Customer Request Vibration Type Mould Vibration Electricity Power 7.5kw Vibration Frequency Max 4000r/Min Shaping Cycle 40-45s Condition New Guarantee 2 Years Pallets No Need Transport Package Plywood Box with Iron Angle Specification 235steel for machine frame Origin China HS Code 8474802000 Production Capacity 50sets / Month

Product Description

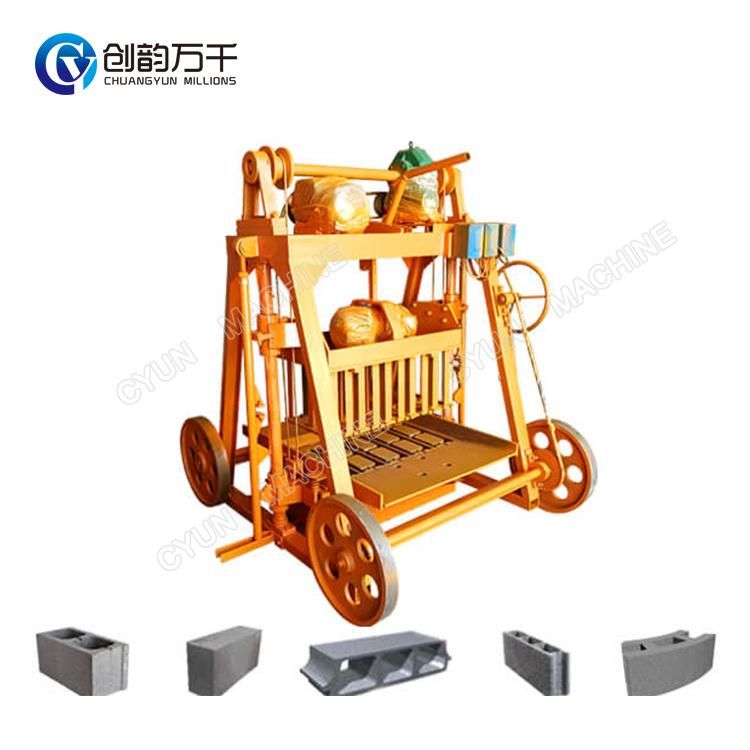

QMY4-45 mobile electric concrete hollow block making paver laying machine






∨Production description∧


This block Machine is manufactured on the base of technical modifications to the original block shaping machines, that is changing the former one-time-vibration into twice-vibrations of molding core, so the block density becomes higher, shaping speed quicker and block strength more even, this model of machine can suitable to the customers who have any kinds of ceasing concrete working sites, and the consumption carriage can be reduced.

1. QMY4-45 can produce sizes of hollow blocks and solid bricks by changing moulds.
2. Do not need pallet, Reduce investment.
3. Easy opeation, easy maintance.
4. Mould adopt Carburizing heat treatment technology, so life is double than ordinery.

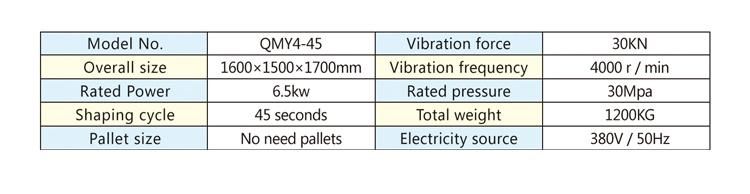

∨Main technical parameters∧

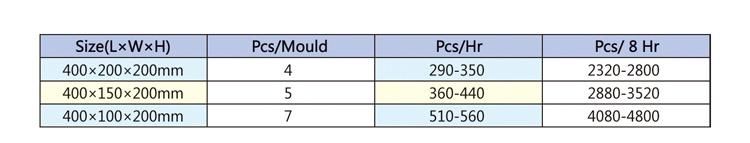

∨Theoretical production efficiency∧

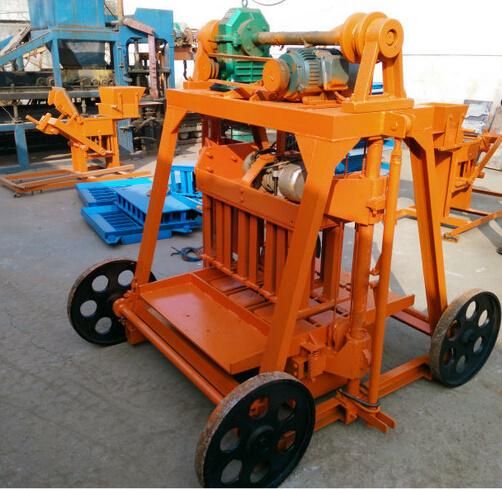

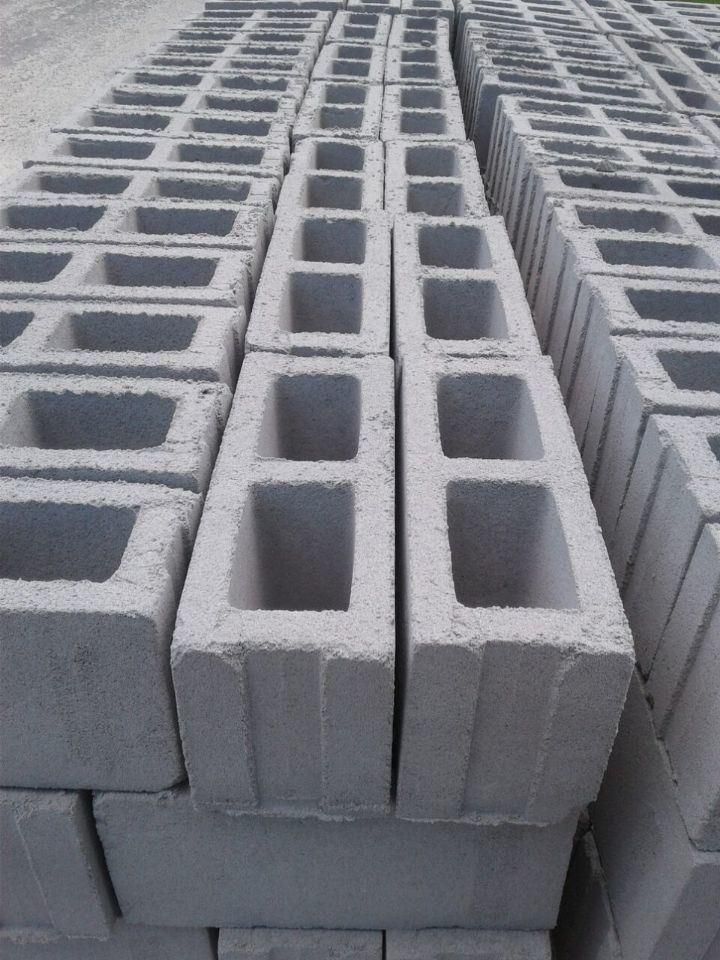

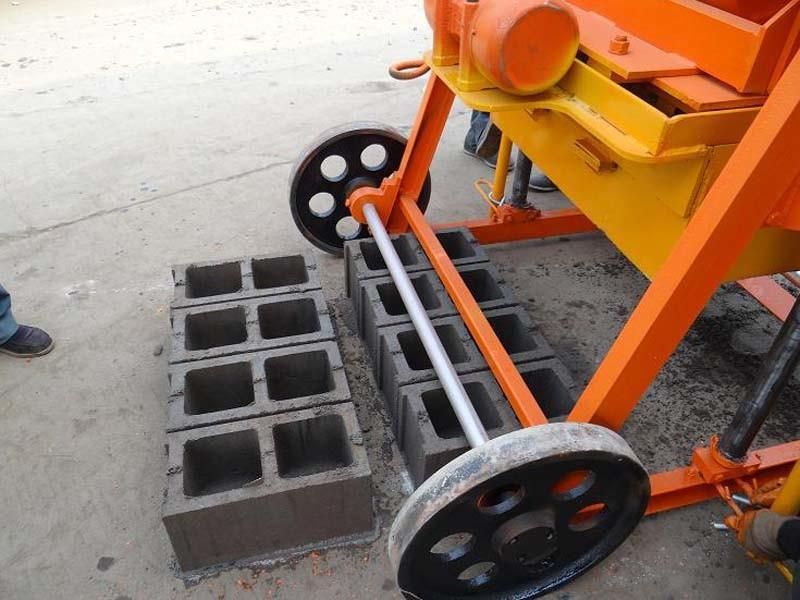

Machine and blocks











Our Service

     we have go big after sale service  team , they are all the experience technician , over 20 workers have the passport , they all have the oversea experience. So we not only have good service in the pre service , we also think highly of the after sale service.

Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity
and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line any time, if you need, we can Make invitation
letter for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer  training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other
